Best selling Door hinges
This page always stays fresh and updates automatically.
1. Simonswerk Nachrüstsatz V 4600/7 - Anschraubtasche
The retrofit kit V 4600/7 from Simonswerk is a comprehensive solution for retrofitting door fittings on wooden frames. This kit is specifically designed for use with the VARIANT V 4600 series drilling template and includes all the necessary components for a simple and efficient installation. The mounting pockets are suitable for cladding holes with a diameter of 7.2 mm and require that a metal pocket from the V 3610 series has been used beforehand. The retrofit kit contains a drilling template, a centering pin, two frame parts, two mounting pockets, plastic caps, and Spax screws, enabling complete assembly. With this set, users can ensure that their door fittings are installed securely and reliably, enhancing the functionality and safety of the doors.
- Complete set for retrofitting door fittings on wooden frames
- Includes all necessary components for easy installation
- Compatible with the VARIANT V 4600 series drilling template
- Suitable for cladding holes with Ø 7.2 mm
- Made in Germany, ensuring high quality standards.
2. Simonswerk Front door hinges BAKA 2D 20 and 2D 20 FD
With a concealed mounting element in the leaf, also suitable for doors with a thin overlap starting from 15 mm, applicable for system tests according to DIN EN 1627 ff, also suitable for outward-opening doors.
Adjustment range two-dimensional:
Side +/- 3 mm
Pressure +/- 3 mm
For wooden front doors.
Note:
The stated load value refers to two hinges per leaf (1 x 2 m).
Hinge diameter (mm): 20
Hinge height (mm): 86
Threaded bolt: 9.9 x 40 mm
Material: galvanized steel
Pin security: none
Load capacity (kg): 100
Type: BAKA 2D/20
Brand: Simonswerk
Contents (ST): 1.
3. Simonswerk Object tapes TECTUS TE 380 3D
The TECTUS TE 380 3D hinge system from Simonswerk is an innovative door hardware solution specifically designed for rebated interior doors. This completely concealed hinge system offers an aesthetically pleasing solution for wooden, steel, and aluminum frames. The side-closed hinge housings ensure a uniform appearance in the mortise, allowing the door hardware to blend seamlessly into the overall look of the door. The maintenance-free sliding bearing technology guarantees long-lasting and reliable functionality. A standout feature of this system is the convenient 3D adjustment, which allows for precise adjustments in three dimensions. This ensures optimal door fitting and simplifies installation.
- Completely concealed hinge system for an aesthetic appearance
- Maintenance-free sliding bearing technology for long-term reliability
- Convenient 3D adjustment for precise adjustments.
4. Dormakaba Glast+AMMAvA ribbon

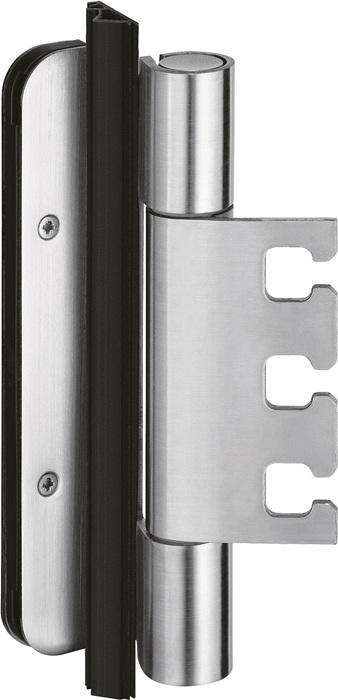

5. Simonswerk Objektband VARIANT VX 7939/160 FD Edelstahl matt (SW 040) 200 kg 22,5 mm DIN links / rechts gefäl...
The object hinge Variant VX 7939/160 FD from Simonswerk is a high-quality solution for rebated soundproof doors. It has been specifically designed for use in wooden, steel, and aluminum frames and offers a maximum load capacity of 200 kg. The construction includes a groove for a continuous leaf seal, which enhances the functionality and sound insulation of the door. The 3D adjustable mounting elements allow for precise adjustment, while the internal, anti-twist screw pin provides additional stability. The maintenance-free axial-radial sliding bearings are concealed and contribute to the product's durability. With a material thickness of 3.5 mm and the use of brushed stainless steel, this door hinge is both robust and aesthetically pleasing.
- Suitable for rebated soundproof doors
- 3D adjustable mounting elements for precise adjustment
- Internal anti-twist screw pin for stability
- Maintenance-free axial-radial sliding bearings for durability.
Door hinge
EUR32,90
Simonswerk Objektband VARIANT VX 7939/160 FD Edelstahl matt (SW 040) 200 kg 22,5 mm DIN links / rechts gefäl...
6. Pauli+Sohn Shower door hinges FLINTER 8150
The FLINTER 8150 shower door hinges from Pauli+Sohn are specifically designed for use in shower doors. They allow for a one-sided opening of 90° inward and are equipped with a single tab for easy handling. Made from high-quality ZAMAK® material, these door fittings provide a durable and reliable solution for modern bathrooms. The chrome-plated, shiny surface not only gives the hinges an appealing look but also protects against corrosion and wear. With a maximum leaf weight capacity of 36 kilograms, the FLINTER 8150 hinges are robust enough to support heavier shower doors. These door fittings are manufactured in Germany and combine functionality with an elegant design.
- One-sided opening of 90° inward
- Made from ZAMAK® material for high durability
- Maximum leaf weight capacity of 36 kilograms
- Chrome-plated, shiny surface for additional corrosion protection.
7. Werkstarck Swing door sealing profiles
The pendulum door sealing profiles from Werkstarck are specifically designed for use in door fittings and provide an effective solution for sealing pendulum doors. Made from high-quality rubber, these profiles ensure long-lasting and reliable use. With a length of 25 meters, they are ideal for various applications and can be easily adapted to individual needs. The sealing profiles are available in a classic black, making them versatile and seamlessly fitting into different environments. These products are manufactured in Italy and are characterized by their high quality and functionality.
- Made from durable rubber for long-term use
- Suitable for holding profile 67.475.00-01
- Length of 25 meters allows for flexible applications.
8. FritsJurgens Pivot-Türbänder Sys. M32+/ D, 70mm
The M32+ pivot hinge system is an innovative solution for swing and flush doors that combines functionality with aesthetics. This hinge is invisibly milled into the door, creating a clean and modern look. With maintenance-free moving parts, it is suitable for door thicknesses starting from 40 mm and can be easily retrofitted without the need for structural modifications. The system is also designed for use with underfloor heating. The fully customizable door movement allows for individual adjustment of the opening damping, 30° speed control, and end stop, ensuring precise control of the door movement. The end stop function ensures that doors with locks always close correctly, which is particularly advantageous for pivot doors in outdoor settings. The M32+ system is suitable for a wide range of door weights, from lightweight to oversized doors with a maximum weight of 500 kg, providing maximum design freedom. The doors have been tested for a lifespan of 1,000,000 door cycles, underscoring the durability and reliability of the system.
- Invisible installation for aesthetic door solutions
- Maintenance-free moving parts for long-term use
- Fully customizable door movement for individual settings
- Suitable for doors up to 500 kg for maximum flexibility.
9. Simonswerk Object tapes TECTUS TE 526 3D
The TECTUS TE 526 3D hinge systems from Simonswerk are an innovative solution for use on non-rebated doors. These door fittings feature a completely concealed hinge system that allows for aesthetic and functional integration into various door frames. They are suitable for wooden, steel, and aluminum frames, offering easy installation. The maintenance-free sliding bearing technology ensures long-lasting and reliable use. With a load capacity of up to 120 kilograms, these hinges are ideal for object and functional doors that must meet high demands for safety and stability. The three-dimensional adjustability allows for precise adjustments in height, width, and pressure, further simplifying installation and operation. Additionally, the hinges are fire and smoke protection compliant, making them a safe choice for various applications.
- Completely concealed hinge system for aesthetic integration
- Maintenance-free sliding bearing technology for long-term reliability
- Three-dimensional adjustability for easy adjustments
- Suitable for wooden, steel, and aluminum frames
- Fire and smoke protection compliant for enhanced safety.
10. FritsJurgens Ficci per porte Sistema Fx 40 mm versione A acciaio inox opaco
The Ficci per porte Sistema Fx 40 mm in version A from FritsJurgens is a high-quality door hinge specifically designed for swing doors weighing up to 119 kg. This system combines a minimalist and elegant design with remarkable durability, ensured by the use of matte stainless steel. It is ideal for interior doors and allows for quick and straightforward installation without compromising on stability or aesthetics. The innovative construction enables a full 360° rotation of the door, allowing for flexible use in various spaces. The double-action feature of the system allows the door to open in both directions, providing additional functionality.
- Minimalist and elegant design
- Full 360° rotation of the door
- Double-acting with hold positions at 90°
- Easy installation without compromising stability.
