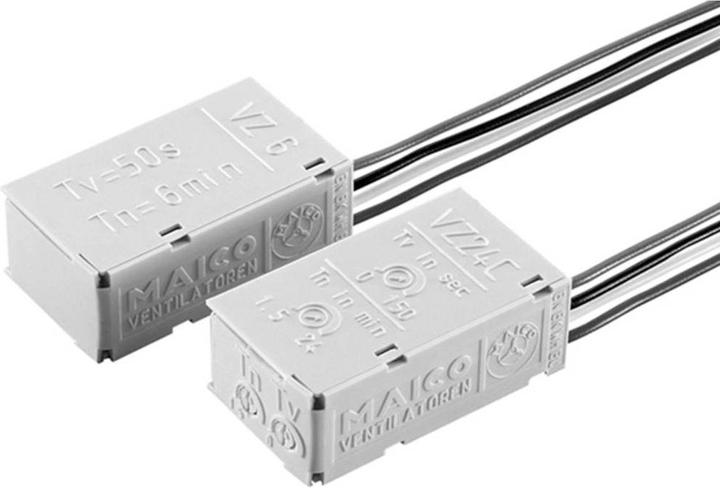

Maico delay timer switch VZ 6

Manufacturer: Maico
Designation: Delay timer switch 50s, 6 min run-on
Type: VZ 6
Electrical connection type: Other
Complete device with base: No
Plug-on for contactor: No
Delayed response function: Yes
Delayed release function: Yes
Switch-on pulsing function: No
Switch-off pulsing function: No
Star/delta function: No
Pulse shaping function: No
Blinking function starting with pause, fixed time: No
Blinking function starting with pulse, fixed time: No
Pulsing function starting with pause, variable: No
Pulsing function starting with pulse, variable: No
Time range: 0..360 s
Remote control possible: No
Suitable as remote control: No
Rated control supply voltage Us at AC 50 Hz: 0..230 V
Rated control supply voltage Us at AC 60 Hz: 0..230 V
Type of voltage for actuation: AC
Number of outputs, delayed, normally open: 1
Outputs, switchable delayed/non-delayed: No
With semiconductor output: No
Width: 20 mm
Height: 13 mm
Depth: 35 mm

Additional details:
The delay timer switch controls the switch-on delay and run-on time of fans. Actuation is done via standard switches. Interference-resistant according to EN 61000-4-5 (at 1000 V to 4000 V). Additional interference suppression measures may be required (L-, C-, or RC-elements, protection diodes, varistors).

Article: VZ 6
Rated voltage: 230 V
Mains frequency: 50 Hz / 60 Hz
Maximum load: 1.25 A
Protection class: IP 40
Weight: 0.01 kg
Weight with packaging: 0.02 kg
Ambient temperature: 0 °C to 50 °C
Run-on time: 6 min
Switch-on delay: 50 s
EAN: 4012799578208.
