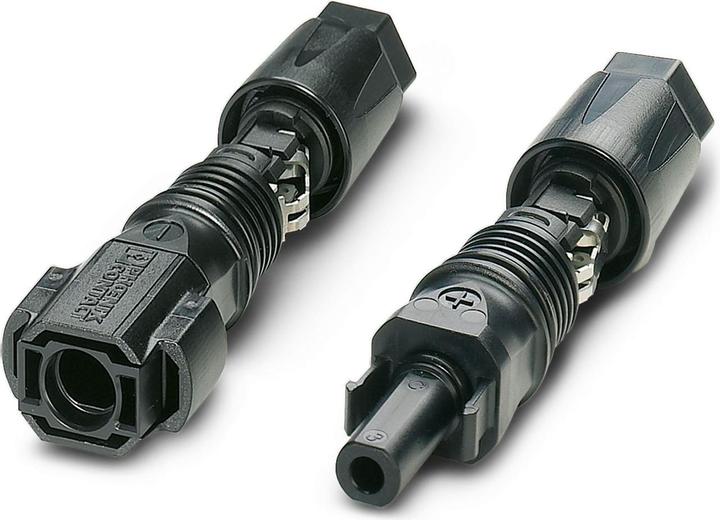

The Sunclix PV-C3F-S 2.5-6 (+) solar connector is a high-quality photovoltaic connector specifically designed for use in solar systems. The housing is made from robust PPE material and is available in black. The connector is suitable for cables with a cross-section ranging from 2.5 mm² to 6 mm². With a rated voltage of 1100 V DC and a rated current of 35 A, this connector is ideal for high power requirements. A special highlight is the field-terminable connection technology, which allows for a quick, easy, and secure connection without the need for special tools.

Features:

• Simple and secure spring connection technology
• High yields thanks to silver-plated contacts
• Convenient unlocking without special tools
• One-piece DC connector
• Cable diameter from 5.5 mm to 8 mm
• Field-terminable: Easy connection option without special tools

Application examples:

• Connecting solar panels in a photovoltaic system
• Wiring of variable cable lengths from the module to the inverter
• Use in off-grid and grid-tie solar systems
• Compatible with Kostal Plenticore inverters

Technical data:

• Manufacturer: Phoenix Contact
• Housing material: PPE
• Color: Black
• Number of poles: 1
• Conductor cross-section: 2.5 mm² to 6 mm²
• Rated voltage: 1100 V DC
• Rated current: 35 A
• Connection type: Spring force
• Cable diameter: 5.5 mm to 8 mm
• Weight: 11.2 g

Scope of delivery:
1x Sunclix PV-C3F-S 2.5-6 (+) solar connector.
