Dishes + Antennas
EUR178,64

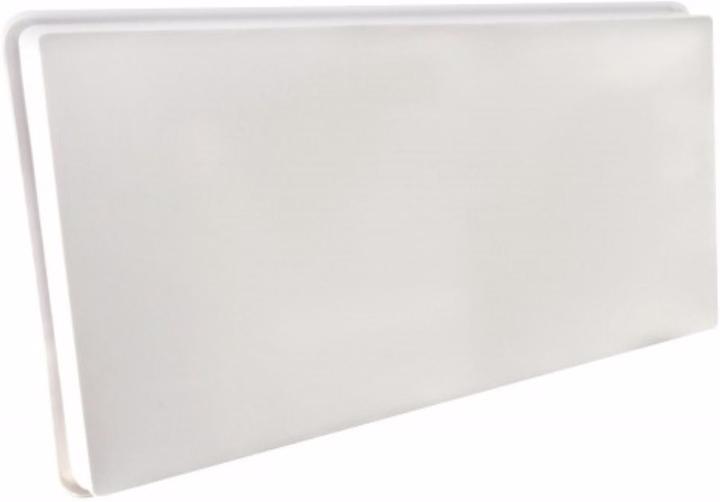

Selfsat H22D4+ flat antenna with Quad LNB 4 participants
Flat antenna, 34.50 dB, DVB-T / -T2
Best Selfsat products in the Dishes + Antennas category
On this page you'll find a ranking of the best Selfsat products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Selfsat H22D4+ flat antenna with Quad LNB 4 participants
Corresponds to the reception power of a 60 cm satellite dish, ideal for satellites such as Astra 19.2° East, Hotbird 13° East, or Sirius, perfectly suitable, including additional window mount.

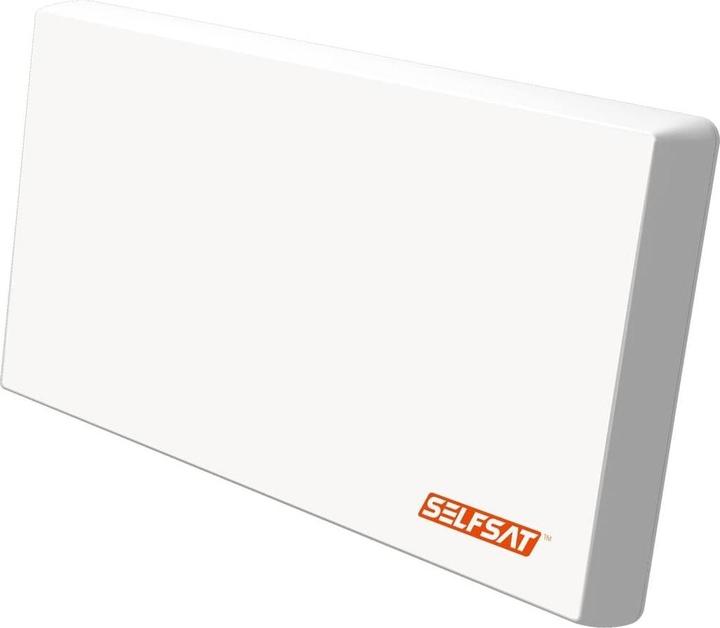

2. Selfsat H30D+ Flat Antenna Single
Including window mount, the H30D+ is identical in construction to the H30D, but the Plus version comes with a window mount included.
The flat antenna from Selfsat features a small, compact design and is quick and easy to install. It is even flatter, more powerful, and larger than its predecessor models. Selfsat is easy to transport and can be set up and taken down quickly and effortlessly at any time. Therefore, it is also the ideal antenna for vacations and camping. The quick-clamp installation can also avoid lengthy discussions and negotiations for construction and installation permits. The (almost) invisible satellite antenna is suitable for all Ku-band satellites with dual linear polarization (vertical and horizontal). All mounts are included - mast/balcony mount and wall mount. The flat and unobtrusive housing makes the satellite antenna suitable for Astra, Hotbird, and other satellites (for Türksat or Eutelsat 16°, you will need the H50 series antenna).
- Compact design
- Quick and easy installation
- Universal application possibilities
- Partially pre-assembled
- Integrated single LNB (for 1 participant)
- Suitable for e.g. Astra, Hotbird
- Reception of digital satellite and radio programs
Technical specifications:
Size: 51.2 cm x 27.2 cm x 5.2 cm
Weight: 4.0 kg
Input frequency: 10.7-12.75 GHz
Polarization: Horizontal and Vertical
Reception performance (Gain): 33.7 dB at 12.75 GHz
Polarization: Dual Linear (horizontal and vertical).
3. Selfsat H30d
All in white, the beautifully shaped, incredibly small satellite antenna gives every television consumer the freedom they long for - inconspicuously and unobtrusively.
The specified mirror diameters are minimum values for normal satellite antennas for which no bad weather reserve has yet been taken into account. In addition, it was assumed that you only want to receive digital programs. If in doubt, increase the mirror size by one in order to receive the corresponding satellite without interference.
4. Selfsat Snipe 3 R Single
The fully automatic satellite antenna SELFSAT SNIPE 3 R "White Line" offers an inconspicuous installation by its noble design in the complete white tone. Due to its compact design, the SNIPE 3 R antenna takes up very little space - ideal for mounting on the roof of a motor home. It also eliminates the need for tedious site alignment. Thanks to the integrated GPS module and electronically controlled drive, the antenna aligns itself automatically at the touch of a button. Even when traveling, you will receive your usual desired program, provided that the respective satellite can be reached. The SNIPE 3 retracts automatically as soon as you switch off the receiver or start the vehicle.
Despite its small dimensions, the Selfsat SNIPE 3 R offers a very good reception result. The three-layer antenna design with wave guide horn array function largely prevents diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated from each other and bundled and directed to the LNB. The result: a high signal strength at the LNB.
5. Selfsat H50d1
The new flat Selfsat H50D satellite antenna with integrated single LNB offers the same reception characteristics as a conventional 80 cm satellite dish. Due to the larger reception area and the resulting improved reception characteristics, the H50 series has the following special features compared to the H21D and H30D series.
DETAILS
Excellent reception values
Better bad weather reserves
Larger number of orbital positions can be received
More compact than conventional 80 cm satellite mirrors
Receiving power comparable to 80cm satellite mirror
Astra 19,2°East, Eutelsat 16°O, Sirius, Türksat 42,0°East, Hispasat 30°West, etc. easily received
Mast and wall mounting material included in the scope of delivery
Easy and inconspicuous assembly
Suitable for 1 tuner, receiver or e. g. Tv devices
1 connections (single antenna)
Flat and inconspicuous housing
Can be installed everywhere
Relatively small dimensions
Dual Linear Polarization (vertical & horizontal)
Technical data:
Model: SELFSAT H50D
Frequency: 10.7 12.75 GHz
Gain: 36.1dBi @ 12.7 GHz
LNB Outputs: 1 Output
Dimensions: 515 x 515 x 68mm (W x H x D)
Scope of delivery:
Selfsat Antenna
Mounting clips for wall and balcony mounting
compass
screw set
6. Selfsat TK30D
Thanks to various mounts in the sturdy plastic case, this flat antenna can be installed on a stand or suction base, as well as on a mast. The Selfsat Traveller antenna offers the same reception performance as a conventional 60 cm satellite antenna.
7. Selfsat Self H22dCSS+ Unicable 2 antenna
8. Selfsat Caravan Plus Single
The Selfsat Caravan Plus is a very compact satellite antenna with best reception performance. The special shape of the antenna allows high gain with small size and wind load. Only 14.9 cm height when retracted. Single connection for one subscriber. Control unit / PI box with free app for firmware updates and satellite selection. Suitable for fixed mounting or optionally as portable antenna.
Modern control via Bluetooth requires only one antenna line into your vehicle. You can conveniently control your antenna via smartphone app.
The antenna automatically aligns to the satellite Astra 19E after switching on. But you can also control the antenna to any other position, within the pre-programmed satellites.
Low height: only 14.9 cm
Fully automatic alignment
BT remote control ( optional available as accessory):
All functions controllable with remote control
Display with status indication
Mobile App:
Support of all operating functions
Firmware update
Troubleshooting with self-diagnosis
Antenna function status display
iOS or Android
Single cable connection:
Easy installation with only one coaxial cable without additional controller
Model:
CARAVAN Plus Single
Connections:
1 ( Single)
Antenna Gain:
35.0dBi @ 12.7GHz
Mass (WxDxH):
573mm x 508mm x149mm
Weight:
5.5Kg
Power consumption:
11W (control mode)
30W (alignment)
Scope of delivery:
Fully automatic satellite antenna Caravan Plus
Mounting plate for installation e.g. on the roof of a motorhome
Cigarette lighter cable
Antenna cable (gray) 12m
STB cable 1,5m
IP Box
Cable holder
Cable gland
Fixing screws
instruction manual.
9. Selfsat H30d4
The flat antenna from Selfsat features a small, compact design and is quick and easy to install. It is even flatter, more powerful, and larger than its predecessors. Selfsat can be easily transported and set up or taken down quickly at any time. This makes it the ideal antenna for vacations and camping. The quick clamp installation can also help avoid lengthy discussions and negotiations for construction and installation permits. The (almost) invisible satellite antenna is suitable for all Ku-band satellites with dual linear polarization (vertical and horizontal). All mounts are included - mast/balcony mount and wall mount. The flat and discreet housing makes the satellite antenna ideal for Astra, Hotbird, and other satellites (for Türksat or Eutelsat 16°, you will need the H50 series antenna).
10. Selfsat Snipe V3 Single
The fully automatic satellite antenna Selfsat Snipe 3 "White Line" offers discreet installation with its elegant all-white design. Due to its compact structure, the Snipe 3 antenna takes up little space, making it ideal for mounting on the roof of a motorhome. The hassle of aligning it at a new location is eliminated. Thanks to the integrated GPS module and electronically controlled drive, the antenna automatically aligns at the push of a button. You can receive your usual favorite programs while traveling, as long as the respective satellite is reachable. The Snipe 3 automatically retracts when you turn off the receiver or start the vehicle. Despite its small dimensions, the Selfsat Snipe 3 provides very good reception results. The three-layer antenna design with wave-guide horn array function largely prevents diffuse reflection of the satellite signal. Horizontally and vertically polarized signals are separated and directed to the LNB in a bundled manner. The result: a high signal strength at the LNB.
