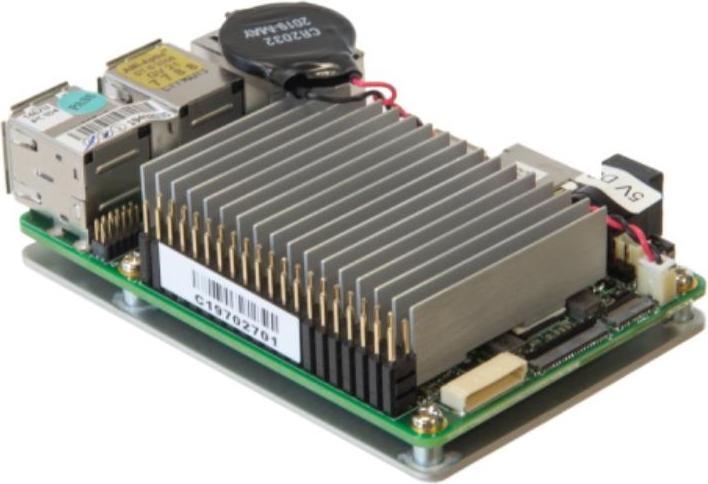

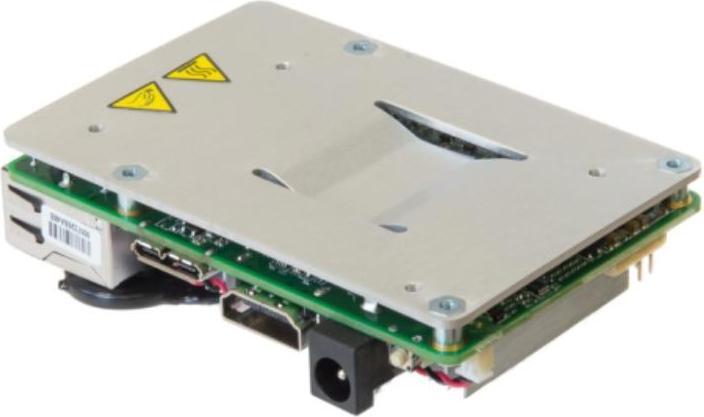

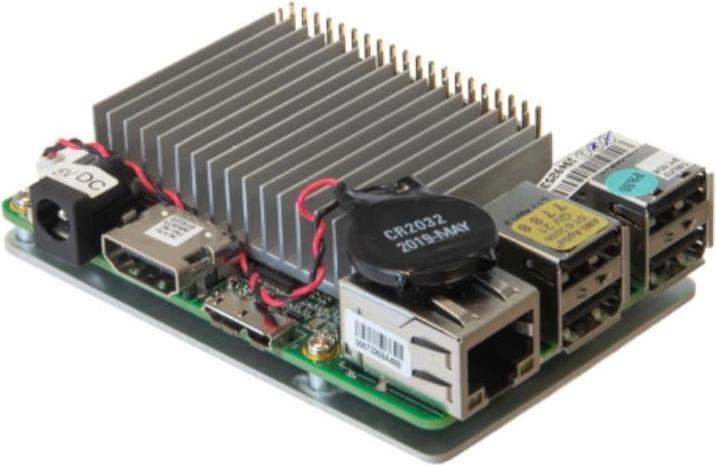

UP-CHT01-A20-0432-A11 - UP-Board with Z8350 CPU, 4 GB RAM + 32 GB eMMC, passive heatsink

The UP-Board is credit card-sized and offers high performance with low power consumption thanks to the latest tablet technology: the Intel Atom x5 Z8350 processor (codename Cherry Trail) with 64-bit architecture up to 1.92 GHz. The internal GPU is the Intel Gen 8 HD 400 with 12 execution units up to 500 MHz, enabling extremely high 3D graphics performance. The board is equipped with 4 GB DDR3L RAM and 32 GB eMMC.

The UP-Board features a 40-pin universal bus, giving manufacturers the freedom to design their shielding. Numerous interfaces are available, including 4 USB 2.0 ports, 2 USB 2.0 ports plus 1 UART port on the header, 1 USB 3.0-OTG, 1 Gbit Ethernet (full speed), 1 DSI/eDP port, 1 camera (MIPI-CSI), and 1 HDMI port as well as RTC.

In terms of security, the UP-Board offers Intel security features such as Intel AES New Instructions and Intel Identity Protection Technology, which are essential for professional IoT applications.

You can choose the operating system that best suits your application. The CPU is supported by Android 6 Marshmallow, Microsoft Windows 10, and Linux (via the UP Community).

The UP-Board has a standard operating temperature range for industrial PCs of 0 °C to 60 °C, making it versatile for many applications. It is ideal for professional tinkerers.

SOC: Intel Atom x5-Z8350 processor (2 MB cache, 1.44 GHz to 1.92 GHz) with 64-bit architecture; four cores. Graphics: Intel HD 400 graphics, 12 EU GEN 8, up to 500 MHz; supports DX 11.1/12, Open GL 4.2, Open CL 1.2 OGL; ES 3.0, H.264, HEVC (decoding), VP8. Video and Audio: HDMI 1.4b; I2S audio interface. Camera interface: CSI (4 megapixels). USB 2.0: 4x USB 2.0; 2x USB 2.0 header (total of 10 pins). RTC: Yes. Power supply: 5 V DC input at 4 A.
