Area: B Range
Series: BC7
Number of Poles: 3
Coil Voltage: 24 VDC
Contact Rated Current: 20 A
Contact Rated Voltage: 690 VAC
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 1
Power: 5.5 kW
Connection Type: PCB
Width: 47.5 mm
Maximum Operating Temperature: +55 °C

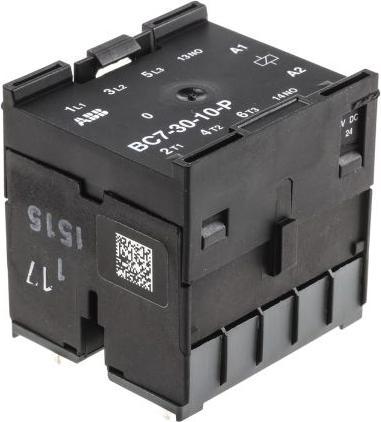

Relays of the BC6/BC7 series. ABB mini relays of the BC series are ideally suited for applications requiring high reliability in limited space. They are suitable for a variety of applications and can be used in residential, commercial, or industrial buildings for controlling single-phase or three-phase loads or switching control signals. The three-pole relays of the BC series feature a quiet, non-buzzing coil, a switch position indicator, and screw terminal connections. They allow for easy maintenance of contacts and coil inspection, can be mounted on DIN rails or walls, have polarity-protected coil connections, and a touch-safe design. Additional auxiliary contact blocks are available separately.
