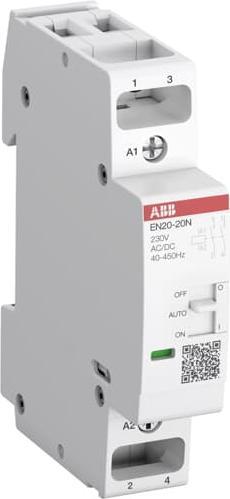

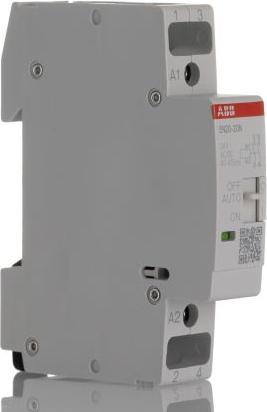

ABB Stotz S&J EN Installation Relay EN20-20N-01

Manufacturer: ABB Stotz S&J
Designation: EN Installation Relay
Type: EN20-20N-01
Rated Operating Voltage: 220-250 V
Rated Operating Current: 20 A
Usage Category: 7
Rated Control Voltage: 24 V
Type of Operating Voltage: AC/DC
Type of Control Voltage: AC/DC
Number of Contacts as Normally Open: 2
Manual Control Switch: Yes
Width in Division Units: 1
Installation Depth: 58 mm
Additional Devices Possible: Yes
With Day/Night Function: Yes
Buzz-Free: Yes
Protection Class (IP): IP20

ABB Stotz S&J EN Installation Relay EN20-20N-01: Additional Details
The 2-pole relays EN20..N with a width of 18 mm control single-phase loads up to 20 A and are available in various contact configurations and coil voltages. They switch electrical heating devices, water heaters, motors for pumps, ventilation, and other drives as well as lighting. Thanks to an integrated coil circuit, they operate with both AC and DC control voltages. Therefore, the devices are completely buzz-free and quiet during switching. EN20..N features an integrated switch to choose between three operating modes: manually off (even with a control signal present), automatic operation (normal relay function), and manually on with a return to automatic operation once the coil is powered again. This offers numerous advantages: for example, during commissioning, a functional test of the load circuit can be performed even without a control signal, and with a control signal present, the load circuit can be quickly and easily turned off at any time. An auxiliary switch, which can be mounted on the left side as an accessory, complements the range. EN20..N has an installation design and meets, among other standards, the household standard EN61095, making them particularly suitable for panel installation.
