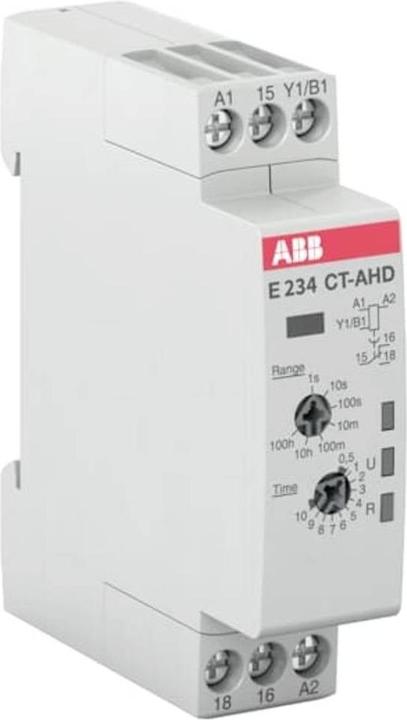

ABB Stotz S&J Timer CT-AHD.12
Manufacturer: ABB Stotz S&J
Designation: Timer off-delay
Type: CT-AHD.12
Electrical connection type: Screw connection
Function response delayed: No
Function release delayed: Yes
Function switch-on wiping: No
Function switch-off wiping: No
Function star/delta: No
Function pulse forming: No
Function flashing with pause beginning, fixed time: No
Function flashing starting with pulse, fixed time: No
Function pulsing starting with pause, variable: No
Function pulsing starting with pulse, variable: No
With plug-in socket: No
Remote control possible: No
Suitable as remote control: No
Can be plugged onto contactor: No
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..48 V
Voltage type for actuation: AC/DC
Rated current: 6 A
Time range: 0.05..360000 s
Number of outputs, instantaneous, changeover contact: 1
Number of outputs, delayed, changeover contact: 1
Outputs, switchable delayed/indelayed: No
With semiconductor output: No
Suitable for DIN rail mounting: Yes
Suitable for front mounting: No
Width: 17.5 mm
Height: 70 mm
Depth: 63 mm

ABB Stotz S&J Timer relay CT-AHD.12: more details
The timing relays of the CT-D series in MDRC design are located in a housing that is only 17.5 mm wide and fits into all common installation and distribution cabinets. The CT-D series is the link between industrial and installation design. For highest flexibility in use, 10 single as well as 2 multifunction devices with 7 time functions are available. The devices have 4 or 7 time ranges, adjustable from 0.05 seconds up to 100 hours. Their wide voltage input allows worldwide use.
EAN: 4013614350665.
