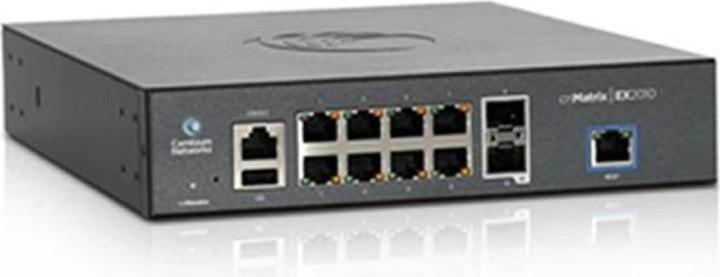

Intelligent Ethernet PoE Switch with 8 x 1G and 2 SFP Fiber Optic Ports without Power Cable

The next-generation switching platform from Cambium Networks offers a cloud-based, high-performance, and feature-rich Ethernet switching solution. The cnMatrix switch platform provides:

• Energy-efficient Gigabit
• Layer 3 (OSPF and RIP)
• Flexible Power over Ethernet (PoE) options
• Multiple port density options

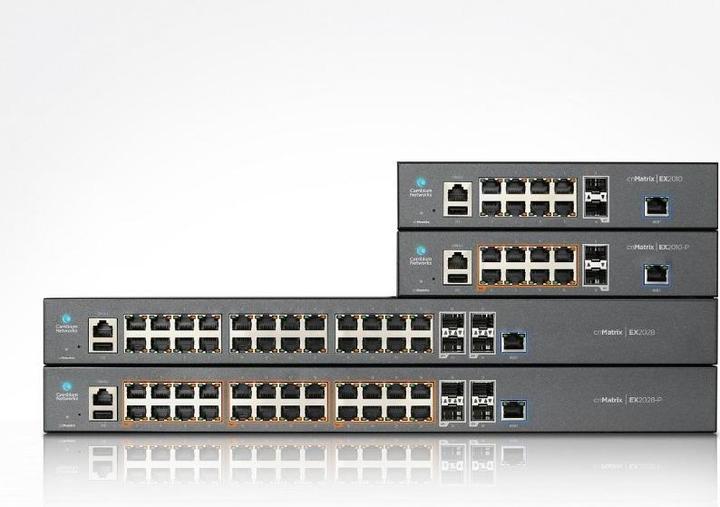

The fully managed switches in the cnMatrix series offer complete Layer 2 functionality with enhanced access security. With several models enabling fanless operation, the switches provide energy savings. The cnMatrix switch series offers flexibility with uplinks ranging from 4 to 10 Gbps (SFP+) in the 28-port models and uplink ports from 2 to 1 Gbps (SFP) in the 10-port models.

Features:

• Throughput: 20 Gbps
• Non-blocking: yes
• PoE-enabled ports: 8
• PoE power budget: 100
• 10/100/1000 ports: 8
• Uplink ports: 2 SFP
• Serial console: yes
• USB: yes
• OOB port: yes
• Rack mount kit: optional
• Internal fans: fanless

Specifications:

• Switching capacity: 20 Gbps
• 10/100/1000 Mbps ports: 8
• Number of uplink ports: 2 (SFP)
• PoE-enabled ports: 8
• PoE power budget: n/a
• Static IPv4 base: 64
• Maximum MAC addresses: 16,384
• Maximum ARP entries: 512
• Max VLANs: 4,094
• Maximum MSTPs: 8
• Maximum routes (static): 64
• Dynamic routing: 512
• LACP/Trunking: 8 links per 9216
• QoS priority queues: 8
• Maximum IGMP multicast groups: 256
• Max PVRST: 32
• Fan: fanless
• Cambium Auto Edge: yes
• MTBF (hours): 338,917.20
• Power budget: 100W
• Power supply: AC/Internal AC
• Weight: 4 lbs 6 oz
• Dimensions: 210 x 44 x 250 mm
• LEDs per port: Link/Activity PoE
• Operating temperature range: -0 °C to 50 °C
• Operating humidity: +55 °C at 95% RH
• Storage temperature: -40 °C to 70 °C.
