Operating voltage: 240 V AC
Cable entry: 4 – 7 mm
With cable: Yes
Cable length: 1.5 m
Width: 60 mm
Height: 48 mm
Depth: 127 mm
Maximum cable size: 7 mm
Minimum cable size: 4 mm

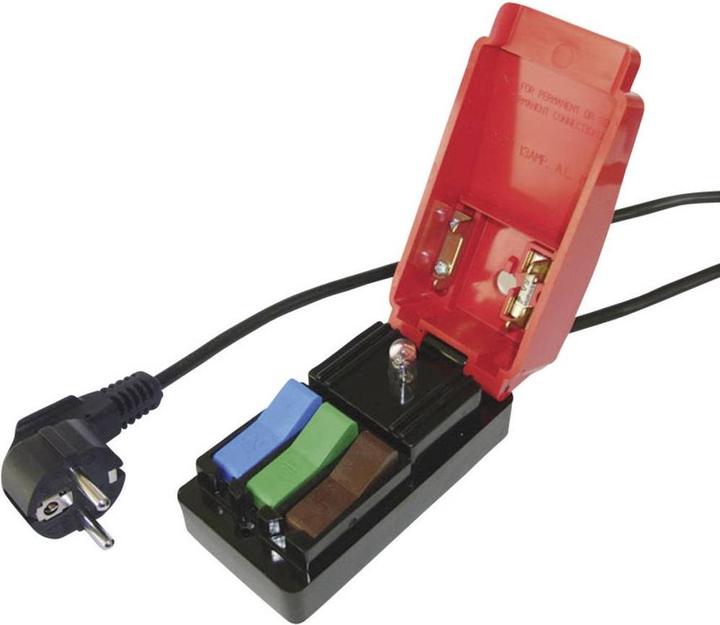

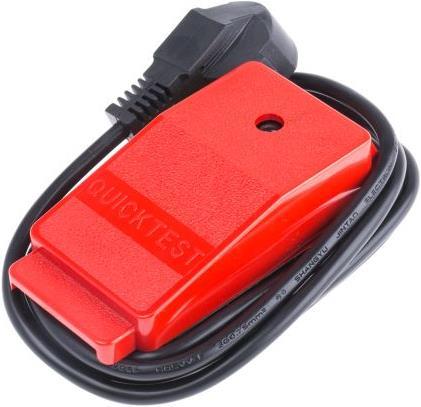

Before using these products, the regulations for electricity in the workplace must be observed. These test adapters are not suitable for connecting household appliances to the mains. The test block provides a safe and efficient temporary connection of mains-operated devices to a suitable power source. Ideal for many applications, including laboratories, test benches, repair workshops, etc.

Features and benefits:

• Connection keys are electrically isolated by opening the lid
• Two-pole disconnection via the hinged cover
• Color-coded cable terminals for easy connection
• Input screw terminals
• Bench mountable
• Mains signal light with neon lamp
• Supplied with assembly instructions

Dimensions (mm): W 60, D 127, H 48
Available with or without power cable:

• Without cable
• With 1.5 m cable + BS1363 Type G plug
• With 1.5 m cable + French/German Type CEE 7/7 plug.
