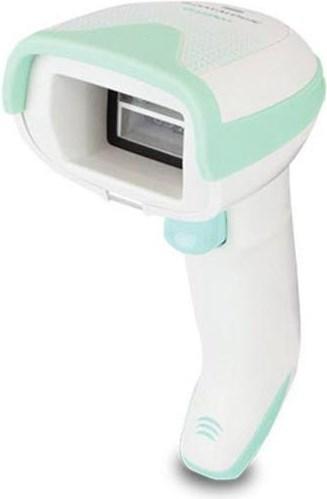

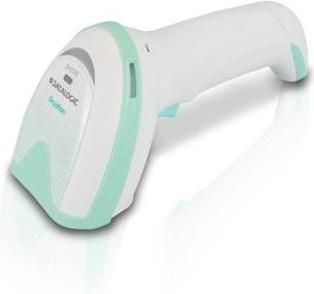

Datalogic Gryphon I GM4500-HC
2D barcodes7 pieces in stock at supplier
connector2
Product details
Short Info: Datalogic Gryphon I GM4500-HC - Kit - portable barcode scanner - 2D imager - decoded - RF (433 MHz)
Manufacturer: Datalogic
Manufacturer Part No.: GM4500-HC-433K1
Model: Gryphon I GM4500-HC
EAN/UPC:
Product Description:
Datalogic Gryphon I GM4500-HC - Kit - portable barcode scanner - RF (433 MHz) - decoded
Color: Light gray, Light green
Min. Barcode Width: 4 mil
Scan Element Type: 2D imager
Sensor Resolution: 1280 x 800
Connection Technology: Wireless
Battery: 1 x Lithium-ion
Dimensions (W x D x H): 6.8 cm x 16.6 cm x 10.9 cm
Weight: 161 g
Detailed Information:
General
Type: Portable barcode scanner
Color: Light gray, Light green
Barcode Interface Type: RF (433 MHz)
Min. Barcode Width: 4 mil
Scan Element Type: 2D imager
Sensor Resolution: 1280 x 800
Light Source Wavelength: 650 nm
Scan Mode: Single Pass
Skew (Degrees): 65
Pitch (Degrees): 65
Print Contrast Signal (PCS): 15%
Decoding Function: Code 39, GS1 DataBar, QR Code, MaxiCode, Aztec Code, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australia Post, China Post, Japan Post, Kix (Netherlands Post), MacroPDF417, RM4SCC, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked
TTL Decoding: Decoded
Connection Technology: Wireless
Success Notification: Beep, LED display
Extension/Connectivity: Interfaces 1 x USB
Miscellaneous: Included Cable 1 x USB cable
Labeling: RoHS, IEC 60529 IP52
Power Supply:

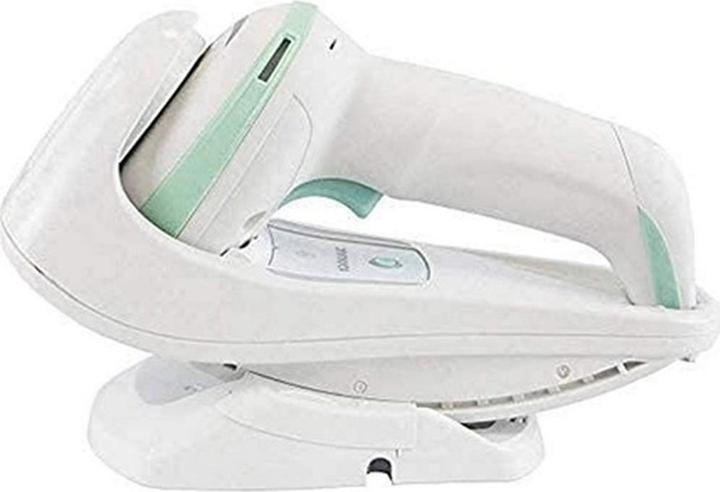

Power Supply Device: Charging station for barcode scanner
Battery: 1 x Lithium-ion
Dimensions and Weight:
Width: 6.8 cm
Depth: 16.6 cm
Height: 10.9 cm
Weight: 161 g
Environmental Conditions:
Min. Operating Temperature: 0 °C
Max. Operating Temperature: 50 °C
Permissible Operating Humidity: 0 - 95 % (non-condensing)
Drop Specification: 1.8 m over concrete floor.
Barcode scanner type | Handheld barcode scanner |
Connections | USB |
Signal transmission | Cable, Radio, RFID-blocking, Wireless |
Item number | 17742294 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer No. | GM4500-HC-433K1 |
Release date | 6/12/2021 |
Colour | Grey |
Exact colour description | Light green, Light grey |
Barcode scanner type | Handheld barcode scanner |
Connections | USB |
Signal transmission | Cable, Radio, RFID-blocking, Wireless |
Protection type (IP code) | IP52 |
Max. Drop height | 1.80 m |
Scanner functions | 2D barcodes |
Minimum print contrast | 15% |
Stack codes | All 2D Barcodes, Aztec Code, Code 39, GS1 DataBar, MaxiCode, QR code |
Read angle lengthwise max. | 65° |
Read angle cross max. | 65° |
Image resolution | 1280 x 800 pixels |
Wireless transmission | Radio Frequency (RF) |
Frequency | 433 MHz |
Battery type | Li-ion |
Country of origin | China |
CO₂ emissions | 4 kg |
Climate contribution | EUR 0,12 |
Scope of delivery | 1 x USB cable |
Length | 166 mm |
Width | 68 mm |
Height | 109 mm |
Weight | 161 g |
