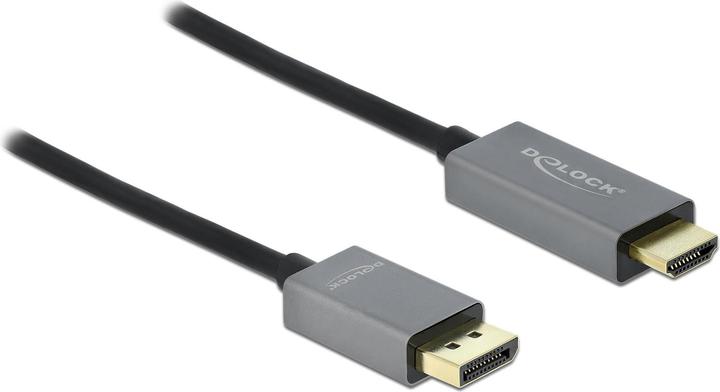

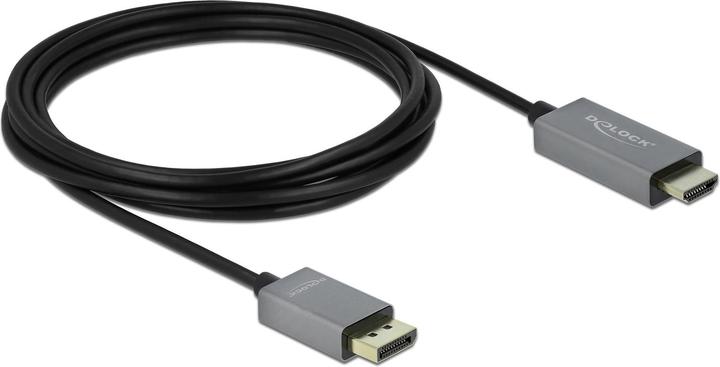

This cable from Delock allows you to connect an HDMI monitor or projector to a PC or notebook with a DisplayPort interface. The cable supports resolutions up to Ultra HD (4K) and is backward compatible with Full HD 1080p.

Active Cable
The cable features active conversion, making it suitable for graphics cards that cannot output DP++ signals.

Fixed Signal Direction
The cable can only be used to connect an HDMI output device to a DisplayPort source, for example, connecting an HDMI monitor to a PC with a DisplayPort connection. The reverse signal direction is not supported.

Specifications

• Connectors:

1 x DisplayPort plug
1 x HDMI-A plug

• Chipset: Parade PS186
• DisplayPort 1.4 and High Speed HDMI specification
• Active cable, for graphics cards with DP and DP++ output
• Signal direction: DisplayPort input > HDMI output
• Wire gauge:

32 AWG data line
28 AWG power line

• Cable diameter: approx. 5 mm
• Connectors: gold-plated
• Metal housing
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz (dependent on system and connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.3
• Color: gray / black
• Length without connectors: approx. 1 m

System Requirements

• An available DisplayPort socket

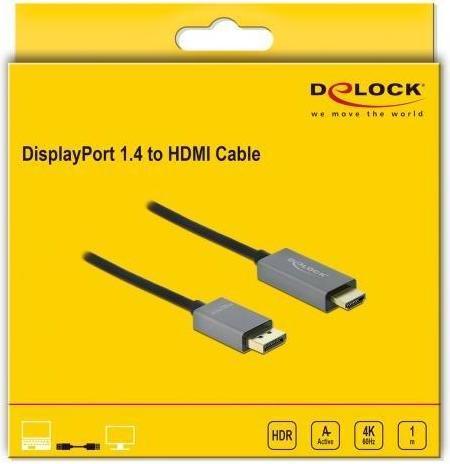

Package Contents

• DisplayPort to HDMI cable.
