Description

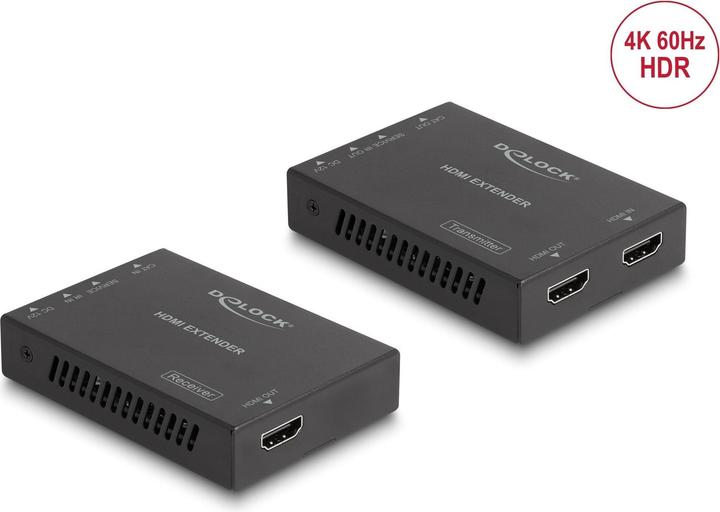

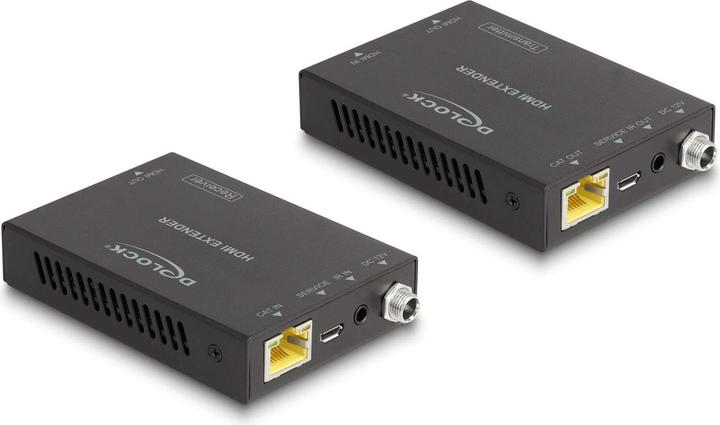

This HDMI extender set from Delock can transmit high-resolution video and audio signals as well as an IR control signal over a single network cable. At a resolution of 4K 60 Hz, distances of up to 50 meters are possible, and at 1080p resolution, distances of up to 70 meters can be achieved. The set has a wide range of applications in conference rooms, for remote teaching, or on large screens.

HDMI Loop Output
The transmitter features an HDMI loop output, allowing the signal to be cascaded to the next extender or to a monitor.

Infrared Remote Control

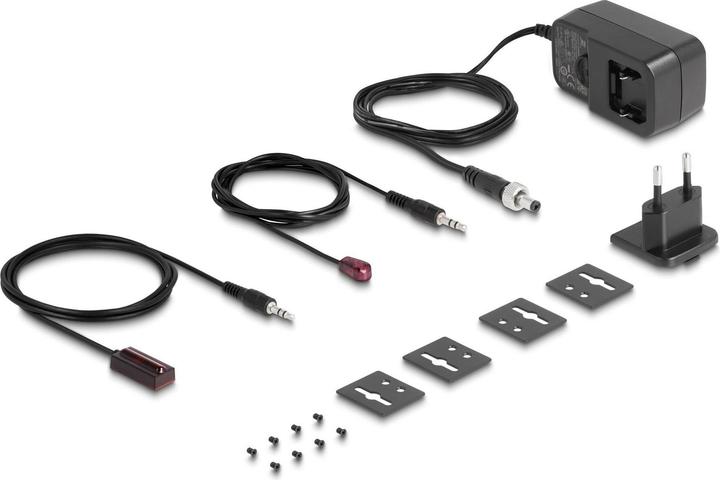

The included IR transmitter and receiver can be connected to the devices to transmit infrared signals over the cable.

Power over Cable (PoC)
The set supports Power over Cable (PoC), which means that only one device requires a power supply. The other device is powered via the network cable, making it flexible to use.

Screwable DC Connector
The power supply with a screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.

Technical Specifications

• Transmitter Connections:

Input:
1 x HDMI-A socket
1 x DC 12 V screwable power connection
Output:
1 x RJ45 socket
1 x HDMI-A socket
1 x 3.5 mm 3-pin jack (IR)

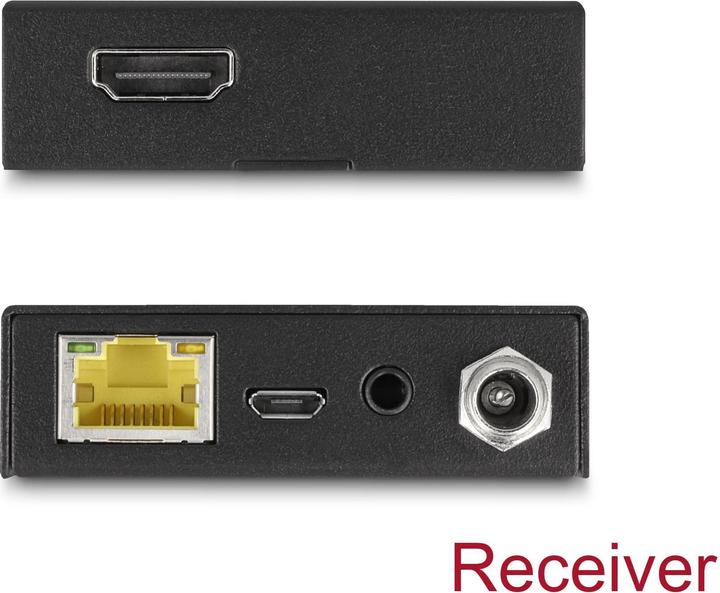

• Receiver Connections:

Input:
1 x RJ45 socket
1 x 3.5 mm 3-pin jack (IR)
1 x DC 12 V screwable power connection
Output:
1 x HDMI-A socket

• Service Port: USB Type Micro-B socket
• Transmission of audio and video signals
• Transmission of IR signals 20 - 60 kHz
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• Supports EDID and HDCP
• Supports HDR
• Supports 7.1 surround sound with Dolby TrueHD and DTS-HD Master Audio
• Supports PoC (Power Over Cable).
