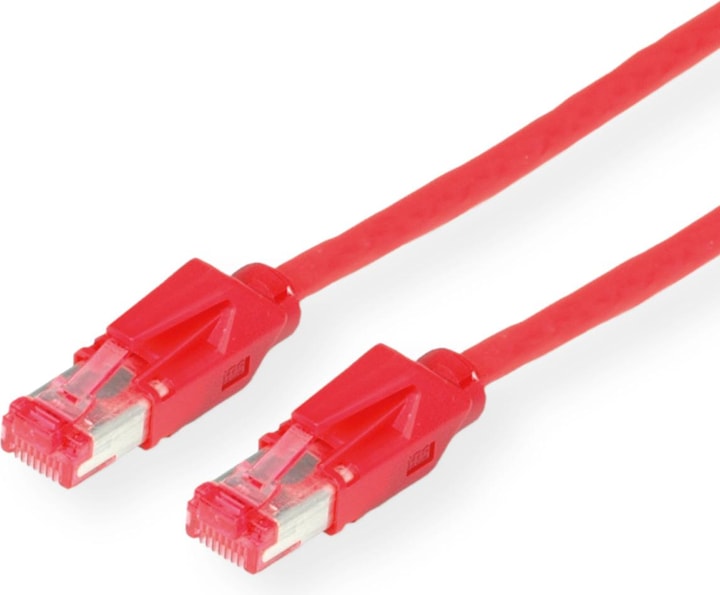

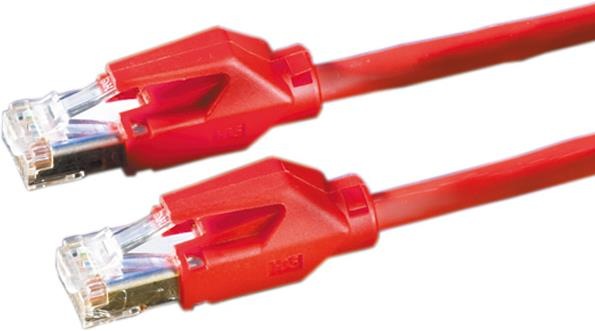

Draka UC400 S27: High-quality flexible patch cable with high-performance FTP shielding for applications up to 250 MHz. Assembled with shielded HiRose TM21 RJ-45 plug and bend protection sleeve. Contact assignment: 8 cores 1:1 according to EIA/TIA 568A.

Construction:

• Cable type: High-performance FTP, patented winding by 2 pairs each
• Impedance: 100 Ohm
• Inner conductor: 8 cores AWG 27/7 Cu strand tinned, filler strand AWG 26
• Outer diameter: 5.7 mm
• Guide color code: wsgn/gn, wsor/or, bl/wsbl, wsbr/br

Note: Cable in halogen-free design.

We recommend using the following components to set up structured cabling:

• Draka UC600 4P installation cable
• Telegärtner AMJ45 8/8 UP/50 junction boxes
• Telegärtner 19-panel MPP24-HS
• Draka UC400 HP-FTP patch cable with HiRose connector TM21
• Draka UC600 SS23 installation cable
• BTR E-DAT module 8(8).
