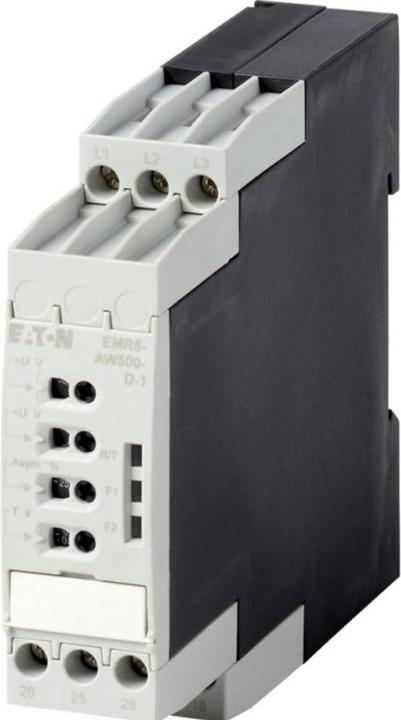

Eaton EMR6-AW500-D-1 Phase monitor

Price in EUR including VAT
Ratings
Delivered between Wed, 20/8 and Fri, 22/8
More than 10 pieces in stock at supplier
free shipping

Product details

The Eaton EMR6-AW500-D-1 phase monitor is a multifunctional measuring and monitoring relay specifically designed for the supervision of three-phase networks. This device provides a reliable solution for monitoring phase sequence, phase loss, overvoltage, undervoltage, and asymmetry. The power supply is drawn directly from the measuring circuit, allowing for easy installation and integration into existing systems. The phase monitor is capable of setting thresholds and asymmetry between 2 and 25% of the average phase voltages. With a response and reset delay adjustable to either 0 or between 0.1 and 30 seconds, the device offers flexibility for various applications. Installation is straightforward via snap-on mounting on a DIN rail, facilitating setup in control cabinets. The EMR6-AW500-D-1 complies with the standards and regulations of IEC, UL, CSA, CCC, and GL, underscoring its reliability and safety.

  • Adjustable thresholds and asymmetry from 2 - 25%
  • Response/reset delay adjustable from 0.1 - 30 s
  • Monitoring of phase sequence, phase loss, overvoltage, and undervoltage
  • Power supply from the measuring circuit for easy integration
  • Complies with international standards such as IEC, UL, CSA, CCC, and GL.

Key specifications

input voltage
500 V
Output voltage
300 V
Output current type
AC
Item number
31992375

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
184764
Release date
24/10/2022

Relay properties

input voltage
500 V
Output voltage
300 V
Output current type
AC
Manufacturer Type
EMR6-AW500-D-1

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
104.60 mm
Width
22.50 mm
Height
85.60 mm

Package dimensions

Length
11.60 cm
Width
10 cm
Height
3.20 cm
Weight
157 g
