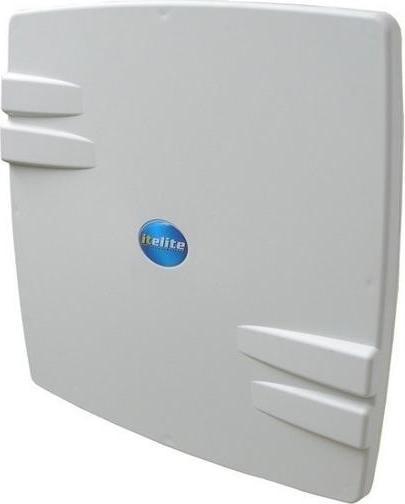

IT Elite SRA24019 - 2.4 GHz, 19 dBi Panel Antenna + Enclosure

This antenna features a waterproof enclosure and operates in the 2.4 GHz band with a 19 dBi gain, allowing for horizontal or vertical polarization.

It is specifically designed for operation under severe weather conditions, using materials that prevent corrosion even in saltwater environments. The high-quality construction of the pole mounting elements ensures easy elevation and tilt adjustment, as well as stable operation.

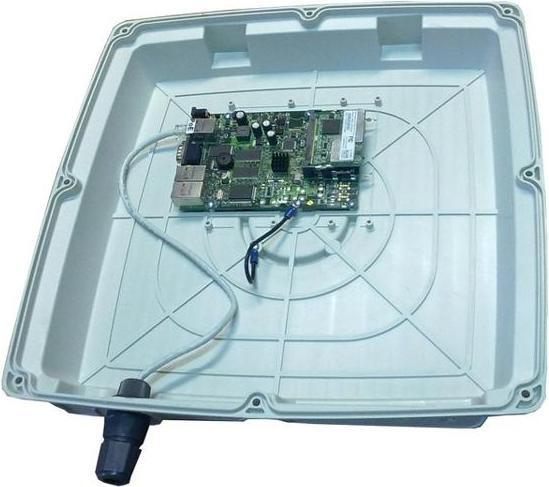

The antenna can be used as customer premise equipment or as a small base station. Inside the enclosure, there are suitable posts for Mikrotik RouterBOARD 411, 433, and 600 series. The enclosure is equipped with a special RJ-45 waterproof Ethernet connector for easy internet connectivity and Power over Ethernet (PoE).

Key Features:

• 19 dBi gain
• Special outdoor weatherproof enclosure
• Suitable for Mikrotik RouterBOARDs
• High-quality construction
• Horizontal or vertical polarization
• Heavy-duty mounting elements
• Easy elevation and tilt adjustment
• Designed for all-weather operation

Applications:

• 2.4 GHz band Wireless LAN
• IEEE 802.11b/g WLAN systems
• RLAN
• FWA
• WiMAX

Electrical Properties:

• Frequency: 2.4 - 2.4 GHz
• Gain: 19 dBi
• Polarization: Horizontal or vertical
• Beamwidth (horizontal): 20°
• Beamwidth (vertical): 20°
• VSWR:
• Impedance: 50 Ohm
• Front to back ratio: > 35 dB
• Lightning protection: DC ground

Enclosure Properties:

• Technology: Microstrip
• Material: UV-resistant
• Colour: Grey
• Min temperature: -40°C / -40°F
• Max temperature: 80°C / 176°F

Mechanical Properties:

• Compatible with: RB411, RB433, and RB600 series
• Input connector: SMA female, U.FL or MMCX pigtail optional
• Enclosure connector: Waterproof Ethernet connector
• Outside dimensions: 385 x 385 x 80 mm
• Weight: 2.4 kg / 5.3 lbs.
