Housing material: Aluminum die-cast
External dimensions: 115 x 90 x 51 mm
External length: 115 mm
External width: 90 mm
External height: 51 mm
IP protection class: IP66
Series: 1550 W

The dimensions do not include the lid (add 4 mm for the lid). Hammond aluminum die-cast enclosures from the 1550 series. The 1550 series electronic device enclosures from Hammond are made from a robust aluminum die-cast alloy and offer improved EMI/RFI shielding. The 1550 series features a design with overlapping joints that protects against dust and splash ingress.

Features and benefits:

• Robust enclosure for electronic devices made from aluminum die-cast alloy (tough yet easy to machine)
• Design with overlapping joints to protect against dust and splash ingress
• Enhanced EMI/RFI shielding
• Unpainted with a vibra-coating for a smooth surface without sharp edges
• Black painted with durable polyester powder coating for a long-lasting surface, even after machining
• Black screws included for an appealing appearance after assembly
• Four M3.5 x 0.6 x 12 mm long stainless steel machine screws with Philips head secure the lid in factory-installed threaded holes
• Complies with IP 54
• No internal ribs for easy connector mounting without interference or additional machining
• Low side wall slope (max. 2°) for easy PCB mounting

Frequently asked questions:
What does IP mean?
The IP protection class is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture.

What is included?

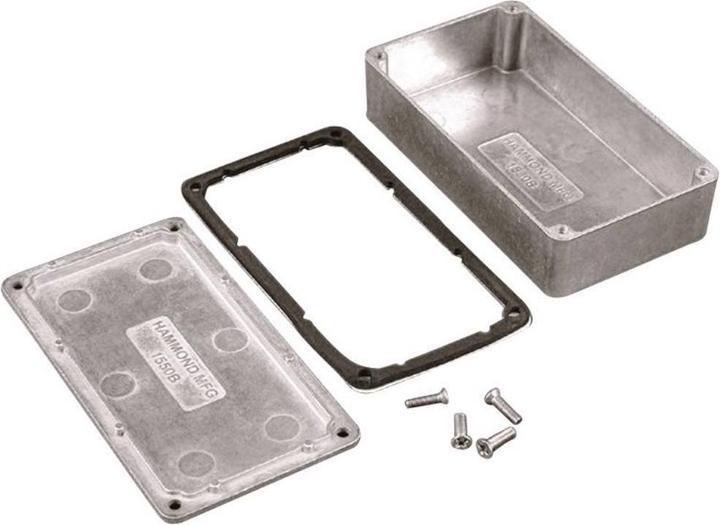

Enclosure with lid and color-matched screws.
