The fiber optic (LWL) patch cables from kabelmeister® are used wherever fast and reliable data transmission is essential. With a small cable diameter of just 2.0 mm, these cables also offer a very high packing density, making them more space-efficient than conventional fiber optic patch cables.

You can trust the proven kabelmeister® quality. We use only high-quality materials for our cables. For increased durability, color-coded strain reliefs are attached to the connectors, providing additional protection and support. The use of modern production facilities, standardized processes, and high-quality materials ensures consistently high processing quality of the products.

Many application areas
Our LWL cables are used, for example, in telecommunications technology, network cabling in server rooms and data centers, as well as in industrial environments.

High quality standards, 100% testing, and individual measurement protocol
After assembly, each of our LWL cables is individually tested and measured. Upon successful completion, a measurement and testing protocol is created for each cable and included.

Technical specifications:

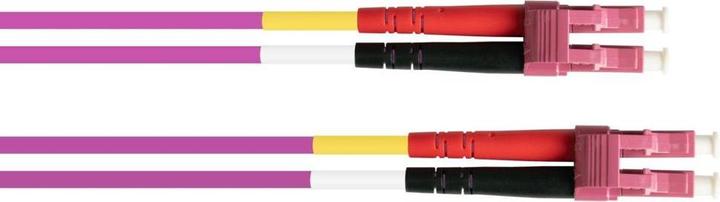

• Fiber optic (LWL) duplex patch cable
• Connector 1: LC (UPC)
• Connector 2: LC (UPC)
• Including dust caps

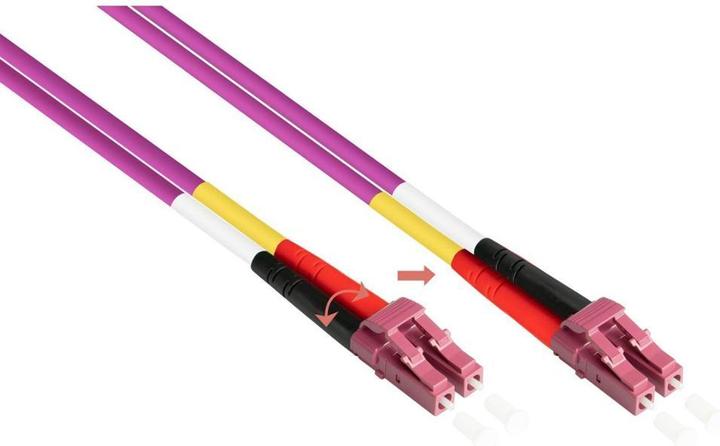

• Replaceable polarity/coding
• Attached bend protection sleeve
• Fiber quality: OM4
• Fiber type: Multimode 50/125µ
• Cable construction: Duplex
• Cable diameter: 2.0 mm
• Jacket material: Halogen-free (LSZH)
• Min. bend radius: 7.5 mm
• Operating temperature: -40 to +85 °C
• Quality: Each cable comes with its own measurement and testing protocol

Color: Purple (OM4)
Length: 5 m

Product features

• Fiber quality: OM4 | Core/Fiber: 50/125 micrometers | Multimode | Halogen-free and flame-retardant
• Connectors: LC (UPC) duplex plug to LC (UPC) duplex plug - Duplex clip removable.
