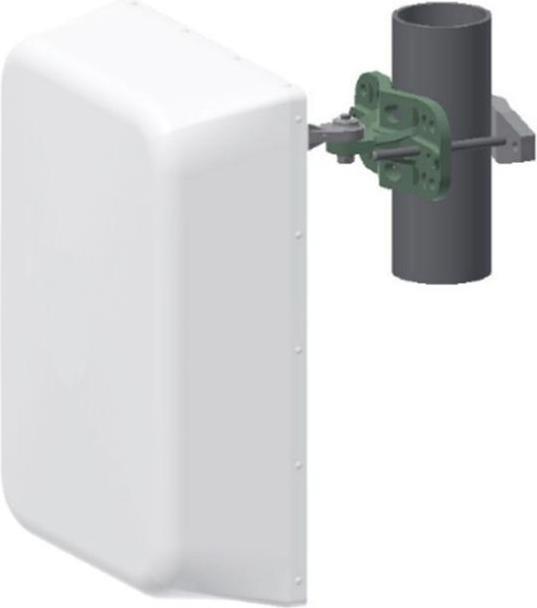

MA-WA27TB-DP8 - Triple band, dual polarized directional antenna

This triple band, dual polarized antenna covers all the bands for LTE, 3G, 2.5G, and 2G cellular, as well as ISM, WLAN, Bluetooth, GSM 900, GSM 1900, and WiFi. It features 2 RF connectors for 698-2700 MHz (vertical and horizontal) and 2 RF connectors for 5100-5900 MHz (vertical and horizontal). The antenna is easily installed and highly recommended as an outstanding solution for outdoor installations as well as in-building installations.

Electrical specifications:

• Frequency range: 698-960 MHz; 1695-2300 MHz; 2300-2700 MHz; 5100-5900 MHz
• Gain, typical: 7.5 dBi; 8 dBi; 10 dBi; 9 dBi
• VSWR, maximum: 2.0:1 for all bands
• Polarization, dual-pol: Vertical and horizontal
• Port-to-port isolation, minimum: -35 dB; -29 dB; -29 dB; -40 dB
• 3 dB beam-width, E-plane, typical: 70°; 50°; 40°; 60°
• 3 dB beam-width, H-plane, typical: 75°; 75°; 54°; 60°
• Front-to-back ratio, minimum: -20 dB; -22 dB; -25 dB; -30 dB
• PIM, typical: -150 dBc
• Input power, maximum: 50 Watt
• Impedance: 50 Ohm
• Lightning protection: DC grounded

Mechanical specifications:

• Dimensions (H x W x D): 400 x 308 x 126 mm
• Connector: 4 N-type female connectors
• Weight: 2 kg
• Mounting: MNT-22 mount
• Radome: UV protected plastic
• Back plane: Aluminum protected through chemical passivation

Environmental specifications:

• Operating temperature range: -55°C to +65°C
• Vibration: According to IEC 60721-3-4
• Wind load: 200 km/h (survival)
• Flammability: UL94
• Water proofing: IP-65
• Humidity: ETS 300 019-1-4, EN 302 085 (annex A.1.1)
• Salt fog: According to IEC 68-2-11.
