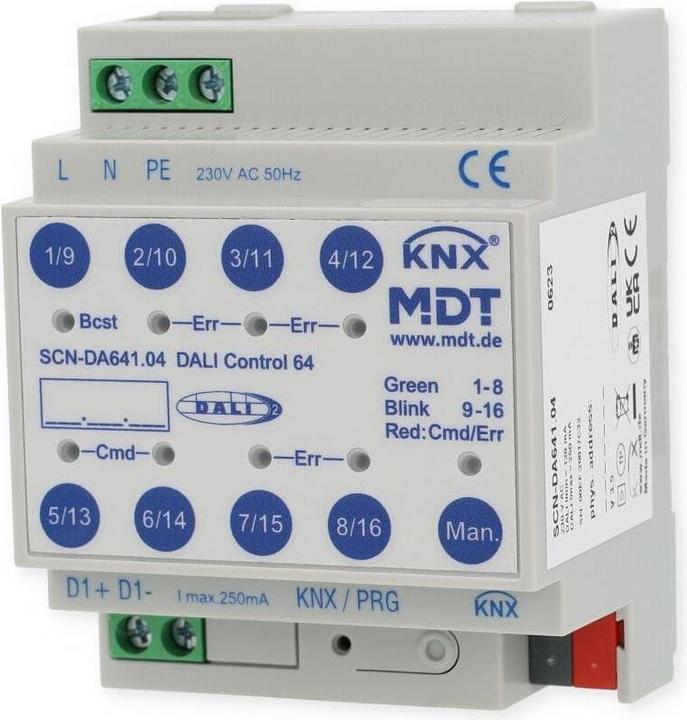

MDT technologies DALI Control 64 Gateway SCN-DA641.04

Manufacturer: MDT technologies
Designation: DALI Control 64 Gateway 4TE, REG
Type: SCN-DA641.04
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Execution: Interface for lighting system/DALI
Mounting Type: REG
Width in Division Units: 4
Number of Channels: 1
Max. Number of Devices per Channel: 64
Disassembly Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 110..240 V
Voltage Type: AC/DC
Power Consumption: 5 W
Protocol: other
Provider Dependent: no
Web Server: no
Radio Interface: no
IR Interface: no
Protection Class (IP): IP20

Additional Details:
The DALI gateway is DALI-2 certified. Color adjustment via HSV control. 1 DALI output. Individual control of up to 64 electronic ballasts / 16 DALI groups. Supports DALI and DALI-2 standards, as well as DALI DT6/DT8. Innovative HSV color control, RGB, RGBW, and XY color according to DALI DT8 standard. Tunable White color temperature control. Integrated color control module for time-dependent control of light color. Active status query of individual electronic ballasts during external override. Supports electronic ballasts of device type 51 to provide energy or power values directly. Operating modes: Normal, Permanent, Night, Staircase, Panic, and Manual Control. 16 scenes with individual dimming times. Energy-saving function for switching off electronic ballasts in DALI groups (via additional KNX switching actuator). Detection of faulty lamps and electronic ballasts, quick replacement of electronic ballasts. Free DCA app for commissioning and configuration of the DALI bus system, commissioning from ETS 5.
EAN: 4251916130718.
