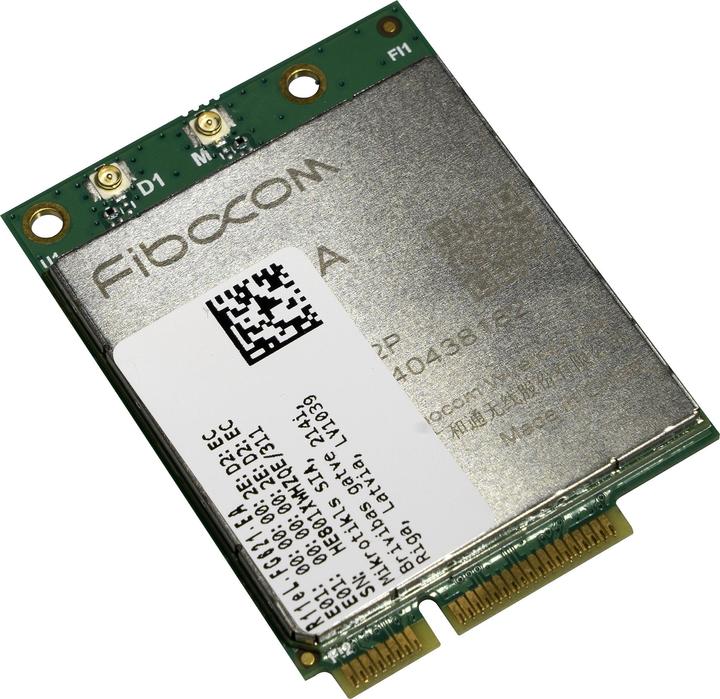

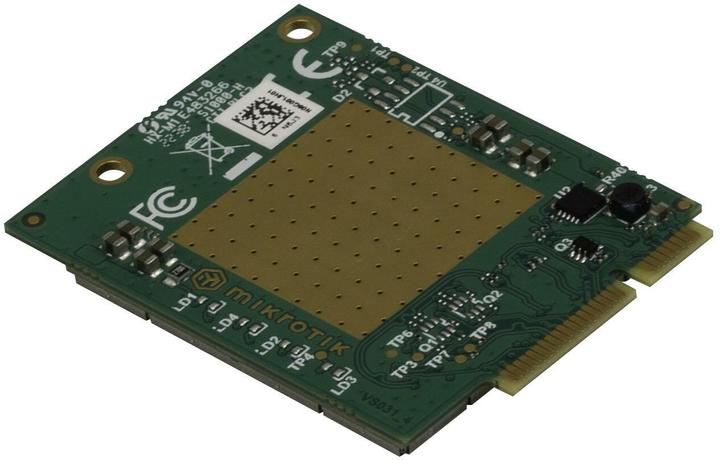

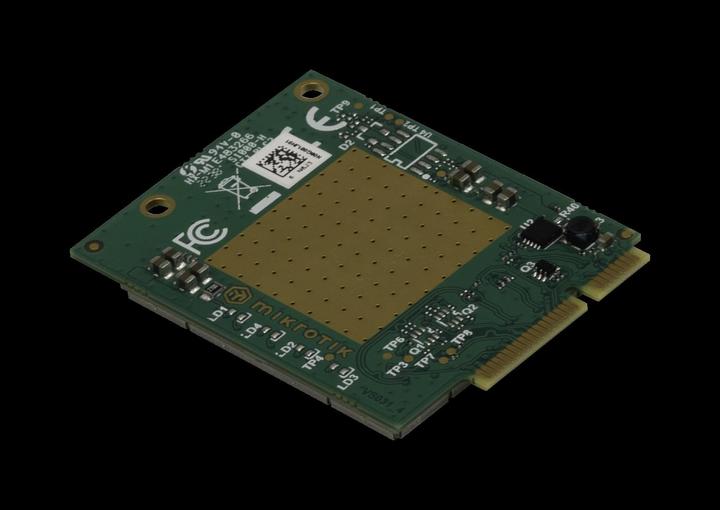

A particularly cost-effective upgrade of our previous R11 LTE6 modem. It offers the same speed (up to 300 Mbps) and the same features as the predecessor, but the price is even lower! This mini-PCIe modem has been designed for the EMEA/APAC/Australia regions, and the supported frequencies include the popular B28 band.

Thanks to Carrier Aggregation, the R11 can utilize multiple bands simultaneously. This is a significant advantage in areas with many LTE users. It provides better responsiveness in crowded environments and higher efficiency in weaker signal situations in rural areas. Depending on the service provider, we have observed a doubling of internet speed in rural areas after switching to Carrier Aggregation!

Specifications

• Product Code: R11eL-FG621-EA
• Tested Operating Temperature: -40°C to 70°C

Power Supply

• Maximum Power Consumption: 3 W

Mobile

• 3G Category: R8 (42.2 Mbps Downlink, 11.2 Mbps Uplink)
• 3G Bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
• LTE Category: 6 (300 Mbps Downlink, 50 Mbps Uplink)
• LTE FDD Bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
• LTE TDD Bands: 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
• TAC: 86335904

Certification and Approvals

• Certification: CE, ROHS
• IP: IP00.
