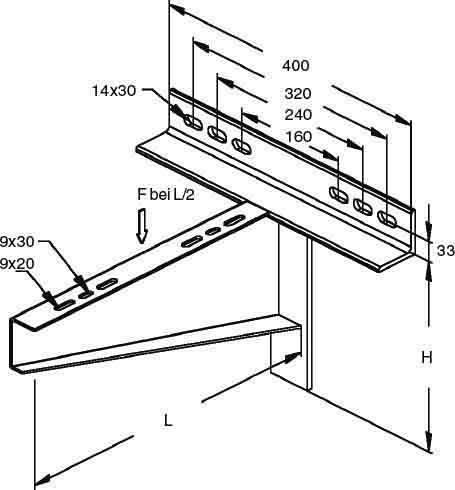

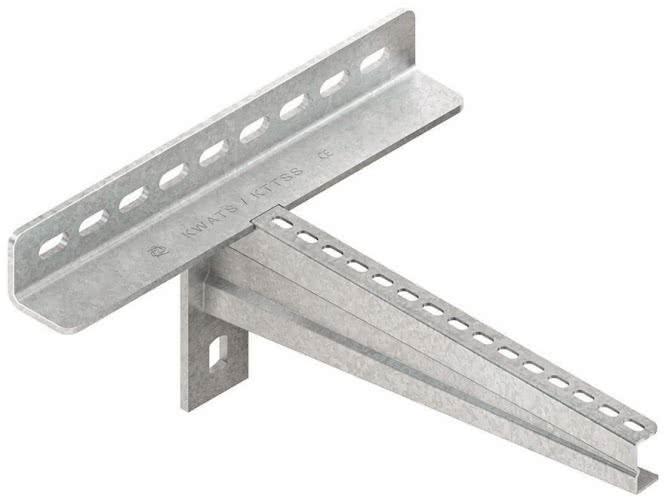

Clamp arm, very heavy-duty version, for wall mounting and clamping attachment to bare steel beams with a flange width of 100 mm to 320 mm. Required clamping accessories for T-beams, such as 2 x SKM 12X..., 2 x UGM 12, and 2 x HSKS..., must be ordered separately. Required fastening accessories for wide-span cable trays/ladders must also be ordered separately. The clamping attachment should be symmetrical, and the screws should be placed as close to the flange as possible. The load capacity specifications apply only in conjunction with HSKS..., UGM 12, and screws M 12, strength class 10.9, which must be tightened with a preload torque of 123 Nm. Particularly for connections that must transfer vertical loads through friction, it is essential to pay attention to the screw tightening torque and to verify it with a torque wrench. The specified load values apply only for connections of steel to steel (e.g., profile clamps). After applying half the load, the tightening torque of the screws should be checked again. Risk of slipping! If steel supports are coated with fire protection paint, it must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or construction management. Dimensions (approximate): Support height H: 156 mm, angle width B: 400 mm, support length L: 330 mm. Load capacity F at L/2: 10 kN tested in the system, applicable for beam flange widths of 220 mm and 300 mm. Load capacity F2 at L/2: 10 kN tested in the system, applicable for beam flange widths of 220 mm. Material of the arm: Steel, hot-dip galvanized according to DIN EN ISO 1461. Flange thickness of the beam in mm: [Customer specification required].
