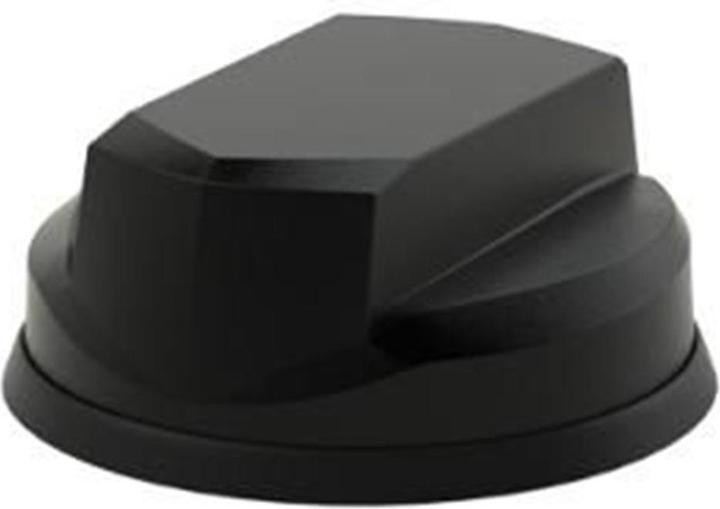

LGMDMB-6-60-24-58 - Vehicle Antenna 2x2 MiMo 4G/5G + 2x2 MiMo WiFi + GPS/GNSS

The Great White is a range of high-performance MiMo antennas covering 617-960/1710-6000 MHz with optional GPS/GNSS and optional 2x2, 3x3, 4x4, or 6x6 MiMo/diversity at 2.4/5.0 GHz. The Great White consists of up to 9 elements; two isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MiMo/diversity at cellular/LTE frequencies, up to 6 optional dual-band elements covering 2.4 and 7.2 GHz support MiMo/diversity operation for WiFi, and an optional high-performance GPS/GNSS antenna with an integrated 26 dB gain LNA and high-quality filtering offers unparalleled positioning accuracy. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.

Product Variant
Part number: LGMDMB-6-60-24-58
Color: Black
GPS/GNSS: 1562-1612 MHz 26 dB LNA
Cellular/LTE: 2x2 MiMo: 617-960/1710-6000 MHz
WiFi: 2x2 MiMo: 2.4/5.0 GHz

Electrical Data
LTE frequencies: 617-960/1710-6000 MHz
Global positioning: Optional GPS/GNSS 1562-1612
WiFi frequencies: MiMo - 2.4/5.0 GHz - (optional)
Peak gain (dBi): 6
LTE MiMo: 2x2
WiFi MiMo: Optional 2x2; Optional 3x3; Optional 4x4; Optional 6x6
Max. input power (W): 20
Pattern: Omni-directional
Ground plane independent: Yes

Mechanical Data
Available colors: Black or white
Height (mm): 75
Diameter (mm): 176
Operating temperature: -40°C/+80°C

Mounting Data
Mounting type: Panel mount
Mounting method: 18 mm (3/4") mounting bush

Approvals Data
IP rating: IP69K.
