Name: Phase busbar 4+N 17.8mm 1000mm 16qmm 80A fork insulated for devices with N conductor
Brand: Pollmann
SKU: 33220709
Price: 68.65 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Pollmann

Pollmann phase rails, 4-phase busbar exit centered for LS or 4-pole RCD according to VBG 4. Number of phases: 4. Suitable for number of devices: 56. Division dimension: 17.8 mm. Cross-section: 16 mm². Length: 1000 mm. Rated continuous current Iu: 130 A. Type of electrical connection: fork. Insulated: Yes. Rated impulse voltage: 4 kV. Conditional rated short-circuit current Iq: 50 kA. Max. rated operational voltage Ue: 500 V. Suitable for devices with N conductor: Yes. Suitable for devices with auxiliary switch: No.

Installation note according to § 13 NAV.

Please note that devices with a connection value of 230 V will be delivered with either a protective contact plug or a fixed connection (without plug) depending on the power rating. If the device has a fixed connection, a qualified professional must be commissioned for the installation. All devices with a connection value of 400 V and above must be operated via a suitable high-voltage connection and may only be connected by a qualified electrician. For devices with a rated power of more than 12 kW, approval from your network operator will be required. Please contact the network operator or an installation company registered in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.

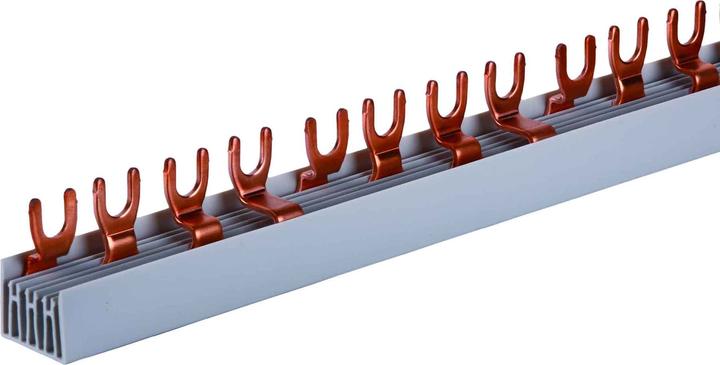

Actual product image Pollmann Phase busbar 4+N 17.8mm 1000mm 16qmm 80A fork insulated for devices with N conductor

Key specifications

Item number

Phase busbar 4+N 17.8mm 1000mm 16qmm 80A fork insulated for devices with N conductor
