Directional ultra wideband 5G/LTE MIMO 2x2 antenna

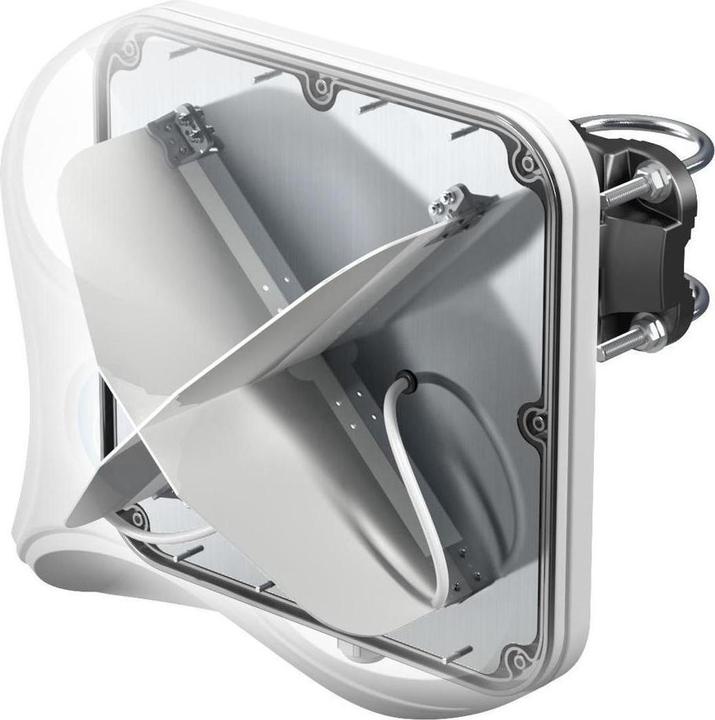

The QuPanel 5G/LTE directional MIMO 2x2 is an ultra wideband outdoor antenna primarily designed for LTE, 5G, 3G, and 2G devices that require high efficiency connections. The antenna covers many LTE bands, including the new Extended LTE Band 71, and frequencies ranging from 600 to 6000 MHz. The mounting bracket allows for installation on a pole or wall, enabling the antenna to receive internet via LTE, 5G, 3G, or 2G. It is an ideal solution for use with all industrial and domestic 2x2 5G modems and routers.

5G / LTE antenna specification
Frequency:

• 617 - 960 MHz
• 1.7 - 2.7 GHz
• 3.3 - 4.6 GHz
• 4.7 - 6.0 GHz

Gain:

• 617 - 960 MHz: 6 dBi
• 1.7 - 2.7 GHz: 7 dBi
• 3.3 - 4.6 GHz: 7 dBi
• 4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands:
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands:
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR:

• <2.00, max <3.00

Beamwidth:

• 80°/80° ±15°

Polarization:

• X (+-45 degrees)

Impedance:

• 50 Ω

Mechanical specification
Materials:

• ABS, aluminum, PTFE, fiberglass

Connector type:

• SMA

Ingress protection:

• IP67

Dimensions:

• 486.0 x 292.2 x 105.6 mm
• 19.13 x 11.50 x 4.16 inch

Weight:

• 2.8 kg
• 6.17 lbs

Operating temperature:

• From -40°C to 80°C
• From -40°F to 176°F

Mast diameter:

• 25-60 mm
• 0.98-2.36 inch.
