RF Elements UH-CC-5-24 - UltraHorn CC 5-24 Antenna

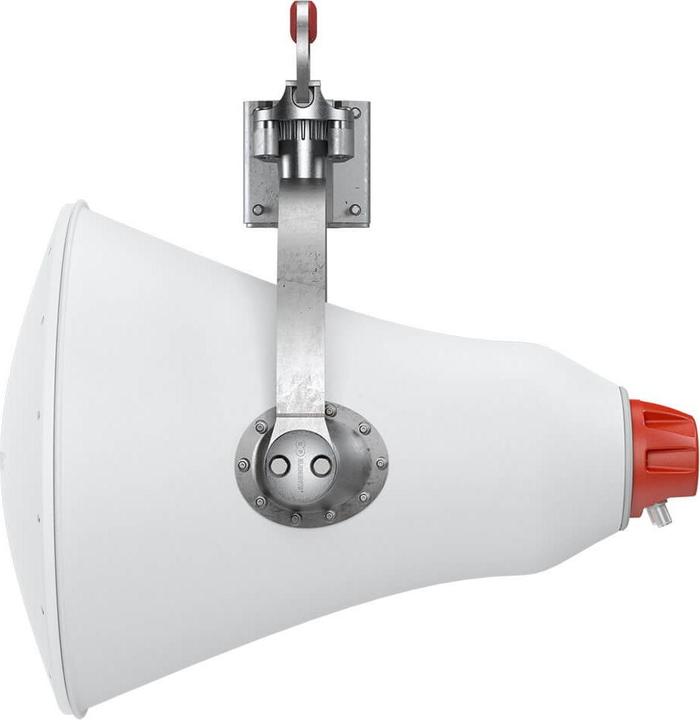

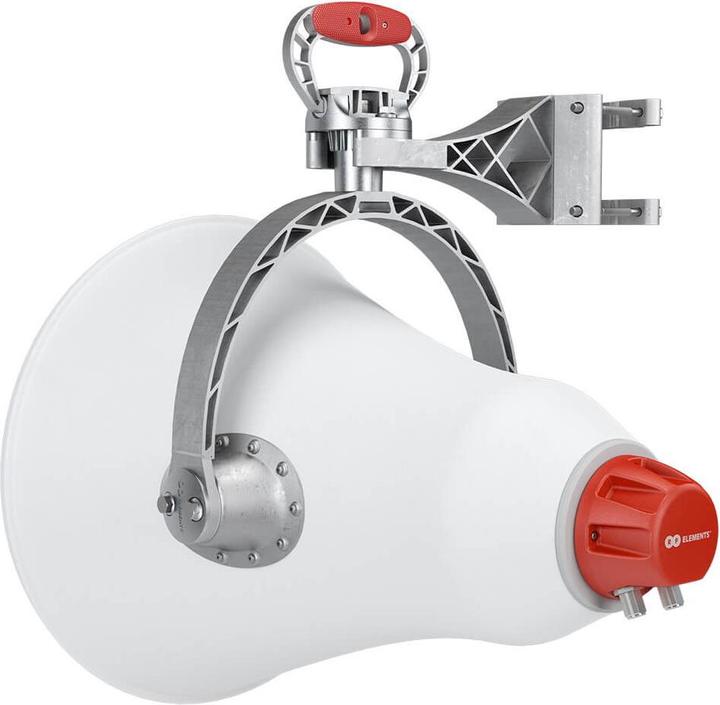

The UltraHorn CC 5-24 is a high-gain horn antenna with high directivity and symmetrical radiation pattern. Its symmetrical beam with equal horizontal and vertical beamwidths, combined with the absence of sidelobes, ensures excellent performance in terms of interference suppression. You won't need to spend extra money on radomes, enclosures, or other additional shielding.

The UltraHorn CC 5-24 antenna is suitable for point-to-point connections in high-noise areas. Thanks to its unique radiation characteristics, the UltraHorn CC 5-24 delivers outstanding performance as a narrow beam antenna and is a versatile tool for precise network planning. The UltraHorn CC 5-24 is a dual-polarization antenna system (H + V) with two N connectors.

Technical Specifications

Antenna connection: 2x N Bulkhead connector
Antenna type: Horn
Materials: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Protection class: IP55
Pole mounting diameter: 30-80 mm
Temperature: -30°C to +55°C
Wind resistance: 160 km/h
Wind load: 210 N at 160 km/h
Mechanical tilt: +/- 25°
Weight: 8.7 kg
Dimensions: 57.0 x 57.0 x 66.0 cm

Performance

Frequency range: 5180 - 6400 MHz
Gain: 24 dBi
Azimuth/Elevation BW -3 dB: H 11°/V 11°
Azimuth/Elevation BW -6 dB: H 16°/V 15°
Polarization: Dual linear H + V
Front-to-back ratio: 40 dB
VSWR max. 5180 - 5850 MHz: 1.6
VSWR max. 5850 - 6400 MHz: 1.8.
