RF Elements SH-TP-5-70 - Symmetrical Horn Antenna for Simper Radios

Symmetrical horn antennas feature a symmetrical radiation pattern in both the horizontal and vertical planes. This radiation pattern remains consistent across frequencies, and the antenna gain is balanced over a wide frequency range. Symmetrical horn antennas are low-loss and have suppressed side lobes. These characteristics make horn antennas ideal for use as sector antennas.

Advantages of a Wide Vertical Beamwidth
The symmetrical sector antennas offer a wide vertical beamwidth, providing benefits in coverage area.

More Coverage Without Nulls
Symmetrical sectors cover a larger area than traditional sectors with a narrow vertical beamwidth. Symmetrical sectors do not experience issues connecting to nearby clients.

Easy Co-Location
Due to the very low side lobes of the horn antennas, symmetrical sector antennas are excellent for cluster implementations and co-location.

TwistPort Connection
Attaching the Simper radios to the sector antennas is done through a simple twist and lock mechanism. The connection to the radio is virtually lossless.

Compact and Weatherproof
The symmetrical sector antennas are compact and easy to install almost anywhere. They are made from the best weather-resistant materials such as aluminum, plastic, or stainless steel.

• Antenna Connection: TwistPort - Quick-release Waveguide Port
• Antenna Type: Horn
• Environment: IP55
• Temperature: -30°C to +55°C
• Weight: 1.3 kg
• Wind Resistance: 160 km/h
• Mechanical Tilt: +/- 25°

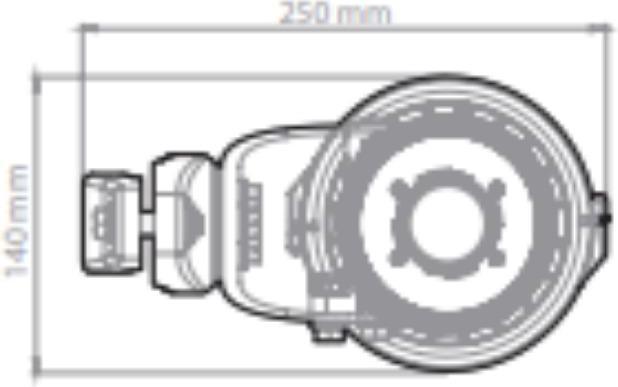

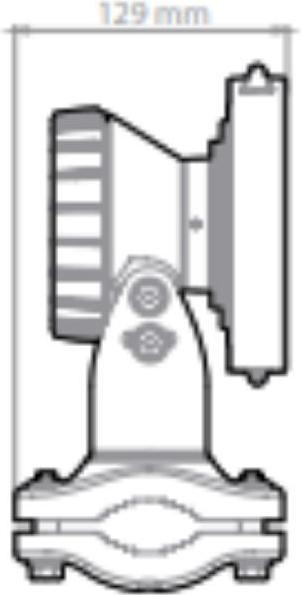

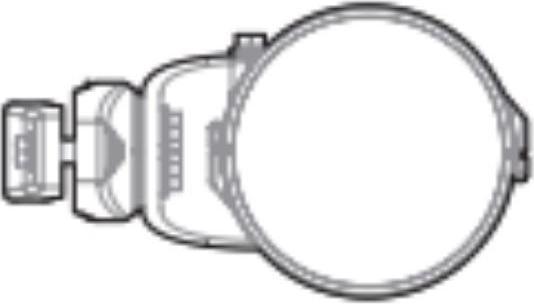

• Dimensions (H x W x D): 134 x 242 x 128 mm

Performance

• Frequency Range: 4900 - 6200 MHz
• Gain: 12 dB
• Polarization: Horizontal + Vertical
• Front-to-Back Ratio: 29 dB
• Xpol Attenuation: 27-28 dB
• BW Azimuth: 70° (-6 dB)
• BW Elevation: 70° (-6 dB).
