UltraDish TP 24 - Parabolic Antenna with TwistPort Connector

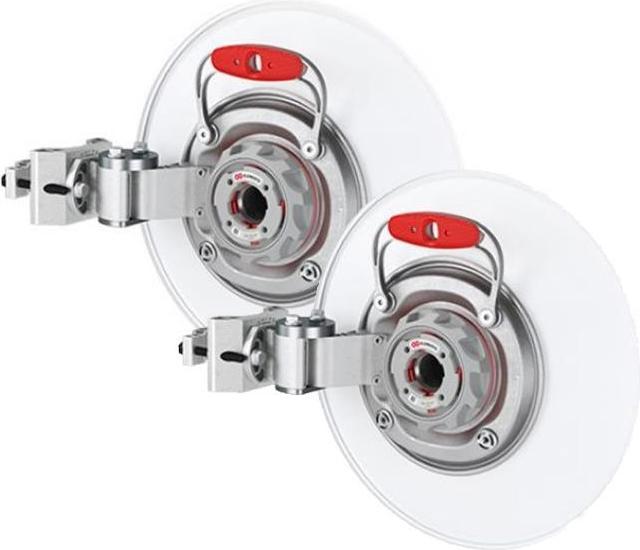

The UltraDish TP 24 is designed for subscriber module applications. Minimized side lobes, a wide frequency bandwidth, and stable gain in both polarizations ensure reliable performance. The antenna reflector is made of aluminum to ensure low weight and a uniform shape. The proprietary TwistPort waveguide connector allows for intuitive radio connectivity and easy swapping.

The robust mount with an improved grip and a variety of applicable mast diameters makes installation simple and versatile. The stainless steel hardware is coated in black.

Physical Specifications

• Antenna Connector: TwistPort - quick-locking waveguide connector
• Antenna Type: Parabolic Dish
• Materials: UV-resistant ABS plastic, polycarbonate, aluminum, stainless steel
• Protection Class: IP65
• Mast Mounting Diameter: 40-80 mm (recommended as close to 80 mm as possible)
• Temperature: -40°C to +60°C
• Wind Resistance: 160 km/h
• Wind Load: 167 N at 160 km/h
• Weight: 7.3 kg - 2-pack (2 pieces) including packaging
• Dimensions: 470 x 470 x 205 mm - 2-pack (2 pieces) including packaging

Performance

• Gain: 24.4 dBi
• Frequency Range: 5180 - 6400 MHz
• Azimuth Beamwidth -6 dB: H 12°/V 11°
• Elevation Beamwidth -6 dB: H 11°/V 12°
• Azimuth Beamwidth -3 dB: H 9°/V 8°
• Elevation Beamwidth -3 dB: H 8°/V 9°
• Beam Efficiency: 40%
• Front-to-Back Ratio (min.): 35 dB

Compatible Wireless Platforms

• Any TwistPort adapter
• Any SIMPER radio.
