Sensor type: K
Probe type: Air
Probe length: 110 mm
Probe diameter: 4 mm
Maximum temperature measurement: +750 °C
Maximum accuracy: ±0.25 %
Connector type: Miniature TE connector

Probes for plug-in installation, types K and T. These probes are directly molded onto a miniature thermocouple connector, making them a waterproof and robust assembly. The probes can be directly plugged into one of the thermocouple displays, providing a cost-effective solution for temperature measurement with one-handed operation. Alternatively, each of the plug-mounted probes can be used in conjunction with the socket in the handle.

Handle with socket: A handle with a miniature thermocouple socket into which one of the plug-mounted probes can be inserted. A flexible holding piece ensures that the probe is properly aligned.

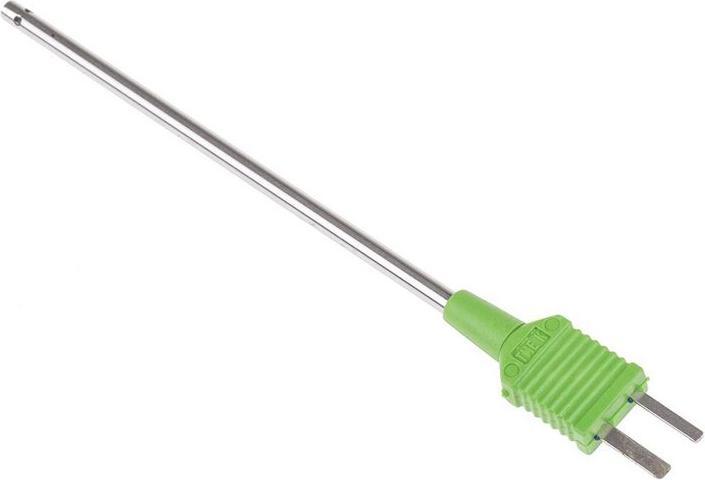

Air probe: A fast-responding sensor with an exposed thermocouple junction protected by a perforated stainless steel sheath. Ideal for use in heating and ventilation systems for temperature measurement in a simple, one-handed operation.

Universal probe (mineral insulation): A probe with a diameter of 3 mm, length of 100 mm, and mineral insulation, featuring a stainless steel sheath.

Insertion needle probe: A probe with a sharpened tip that can be used to measure the internal temperature of semi-solid materials.

Surface probe (band): This probe offers a quick response for surface temperature measurement with a thin stainless steel band that is brought into contact with the surface. These surface probes have a thin metal disc that provides low thermal mass, enabling a rapid response. The probes feature a spring-loaded pull shield that also protects the tip when the probe is not in use.
