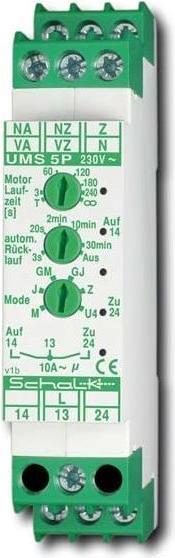

Schalk Motor Control UMS 5P

Manufacturer: Schalk
Designation: Motor Control
Type: UMS 5P
Composition: Base unit with control attachment
Integrated timer: yes
With brightness sensor connection: no
Suitable for wind sensor: yes
Suitable for rain sensor: yes
Auxiliary contact input: yes
With memory function: yes
Mounting type: REG
Material: Plastic
Halogen-free: yes
Color: gray
RAL number (similar): 7035
Transparent: yes
Max. switching power: 2400 W
Nominal voltage: 230 V
Frequency: 50-60 Hz
Mounting method: Clamp mounting

Schalk Motor Control UMS 5P: additional details
OPEN/CLOSE control with potential-free auxiliary contact inputs (12-230V UC) for group and central control. This motor right/left run control is used for roller shutters, blinds, roof windows, etc., and can be operated with commercially available mechanically non-locking switches. The priority auxiliary contact inputs allow multiple UMS 5P units to be grouped for central control. The motor running time can be limited (3-240 s) to prevent overloading the motor in case of mechanical blockage. A convenient, automatic, and adjustable closing function prevents, among other things, the unintentional leaving open of a roof window. The selectable blind operating mode allows for precise positioning of the slats of fast-running blinds. The control of the local inputs is done via 230V AC switch signals. The potential-free auxiliary contact inputs enable easy integration into existing or future automation solutions. Dimensions: 18x55mm, 230V AC, 2 normally open contacts 10A, with galvanically isolated auxiliary contact inputs 12-230V UC. EAN: 4046929401128.
