For use with: Modicon M258
Number of I/O: 42
Manufacturer Series: Modicon M258
Number of Inputs: 26
Input Type: Digital
Voltage Category: 24 V dc
Output Type: Digital
Number of Outputs: 16
Network Type: Ethernet
Communication Interface Type: Ethernet, Serial, USB
Program Memory: 128,000 instructions
Width: 99 mm

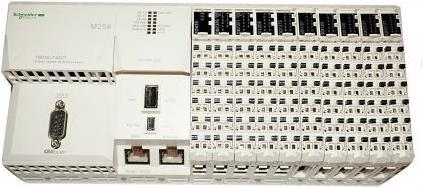

Modicon M258 – CPU. The Modicon M258 PLC is designed for applications such as packaging, lifting, conveying, and storage, as well as fabric and wood processing, etc. It provides high-quality solutions for speed control, counting, axis control, and communication functions. High performance with a dual-core processor, execution speed of 22 ns for a boolean instruction. Removable spring terminal blocks with a measurement point for a voltage sensing device. Integrated serial connection and Ethernet port (RJ45). Integrated network and FTP server. The Modicon M258 CPU is supported and programmed with the SoMachine programming software, which includes the following IEC61131-3 programming languages: IL: Instruction List, ST: Structured Text, FBD: Function Block Diagram, SFC: Sequential Function Chart, LD: Ladder Diagram, CFC: Continuous Function Chart.
