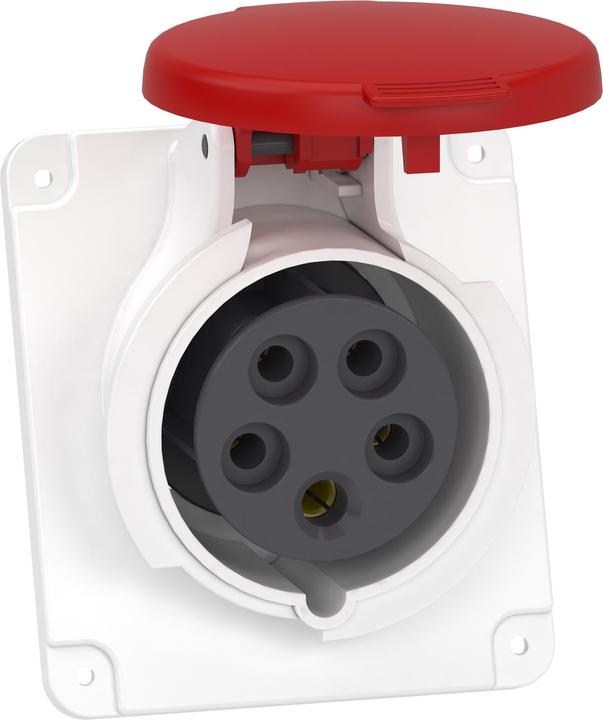

Schneider Electric Industrial Socket PKF16F435

Manufacturer: Schneider Electric
Designation: Industrial socket, 16A, 3p+N+E
Type: PKF16F435
IEC Current Rating: 16 A
Voltage according to EN 60309-2: 400 V (50+60 Hz) red
Rated Voltage: 380..415 V
Rated Frequency: 50..60 Hz
Number of Poles: 5
Clock Position: 6 h
Identification Color: red
RAL Number: 7035
Protection Class (IP): IP44
Connection Technology: Screw terminal
Plug Orientation: Angled
Cable Entry: Without
Material: Plastic
Military Version: No
Flange Dimension Vertical: 100 mm
Drilling Hole Distance Vertical: 60 mm
Flange Dimension Horizontal: 90 mm
Drilling Hole Distance Horizontal: 77 mm

Schneider Electric Industrial Socket PKF16F435: Additional Details
PratiKa straight mounting socket. It features 3P+N+E poles, a rated current of 16 A, and an operating voltage of 400 VAC. The dimensions of the base plate are (W) 90 mm x (H) 100 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The cross-section of cables for 16 A ranges from 1 mm² to 4 mm². The color of the base is light gray (RAL 7035) with a red simple identification of the operating voltage. The frequency is 50 Hz or 60 Hz. The contact clock position is 6 h.
