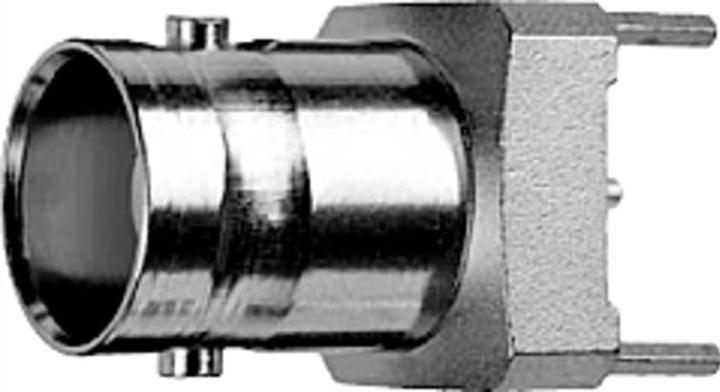

Telegärtner BNC socket for printed circuits 50 Ohm, Z06, L=20mm

Price in EUR including VAT, plus shipping
Ratings
BrandMore from Telegärtner
Delivered between Thu, 12/6 and Tue, 17/6
More than 10 items in stock at supplier

Product details

The BNC socket for printed circuits from Telegärtner is a high-quality connection solution specifically designed for applications with an impedance of 50 ohms. With a length of 20 millimeters, this product is ideal for PCB mounting and ensures reliable signal transmission in various electronic devices. The socket is made of nickel-plated brass and offers a high temperature resistance of up to 155 degrees Celsius, making it suitable for demanding environments. The use of PTFE and silicone as materials provides excellent insulation and durability. This BNC socket is an excellent choice for anyone needing a robust and reliable connection in their electronic circuits.

  • Impedance of 50 ohms for optimal signal transmission
  • High-quality materials: nickel-plated brass, PTFE, and silicone
  • Temperature resistant from -40 °C to 155 °C
  • Suitable for vertical PCB mounting.

Key specifications

Plug type
DC connector
Cable + connector type
Pliers Connector Set
Cable length
0.02 m
Item number
14185449

General information

Manufacturer
Telegärtner
Category
Cables + Plugs
Manufacturer no.
J01001A1944
Release date
13/11/2020
External links
Manufacturer's site (de)

Colour

Colour
Silver

Material

Material group
Metal
Material
Nickel-plated brass

Cable + Connector Features

Cable + connector type
Pliers Connector Set
Plug type
DC connector
Max. temperature
155 °C
Min. temperature
-40 °C
mounting type
PCB mounting
Cable length
0.02 m
Manufacturer Type
100023416
Connectors Design
Socket, vertical installation

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
5 Piece
Scope of delivery

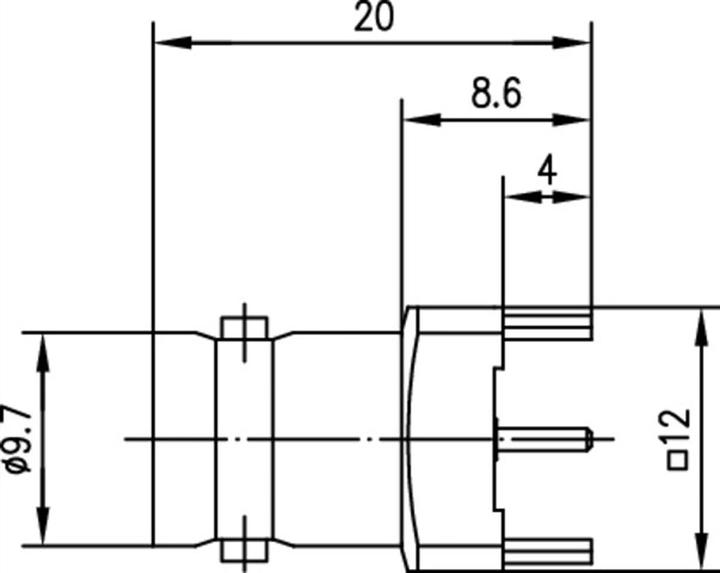

Z: 50 Fire protection class: Not relevant Burning dripping: Not relevant Smoke development: Not relevant Acid development: Not relevant Installation dimensions: Z006

Product dimensions

Length
2 cm
