Output voltage = 5V dc
Output current = 12A
Rated power = 60W
Number of outputs = 1
Input voltage = 90 → 264V ac
Mounting type = Cabinet mounting
Enclosure type = Closed
Length = 129mm
Width = 99mm
Depth = 38mm
Weight = 380g
Efficiency = 80%
Temperature max = +70°C
Temperature min. = -20°C

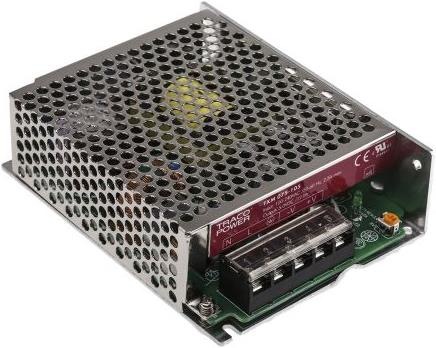

UL 60950-1, IEC 60950-1, EN 60950-1. UL, cUL, CB report. Universal input, 15 W to 150 W, single output, TXM series. Traco Power TXM is a series of power supplies in metal enclosures. The TXM is designed a range of cost critical applications. These Traco power supplies have a low-profile housing and screw terminal block connections, making them easy to install. The TXM power supplies have a universal input and they comply with European EMC standards and with the Low Voltage Directive (LVD). Very compact power supplies Cost-optimized design Low no-load power consumption: ;0.5 W to 75 W units Screw terminal block models up to 150 W do not include an internal fan Universal input 88-264 V ac Adjustable output voltage.
