Name: RMA-27-A68-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 27 U, 600 x 800 mm
Brand: Triton
SKU: 16170194
Price: 972.03 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Triton

Delta S is the perfect cabinet for the highest demands, featuring a robust steel free-standing design suitable for data and telecommunication installations. High-quality workmanship ensures an excellent appearance, making it particularly suited for heavy load carrying capacities due to its high strength.

Sliding rails are fixed rigidly to the shell of the cabinet, set up at 19" on the center line. Cabinets with a width of 800mm are also prepared for setting up 21" on center, 19" off center to the right, and 19" off center to the left. All positions are specified by holes for fixing the sliding rails with Tap-tite screws.

As standard, the cabinet includes the following features:

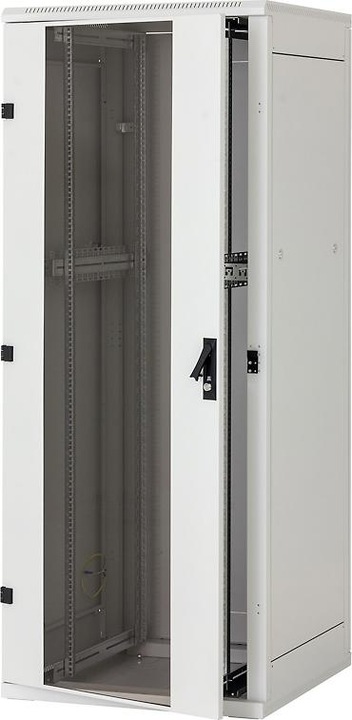

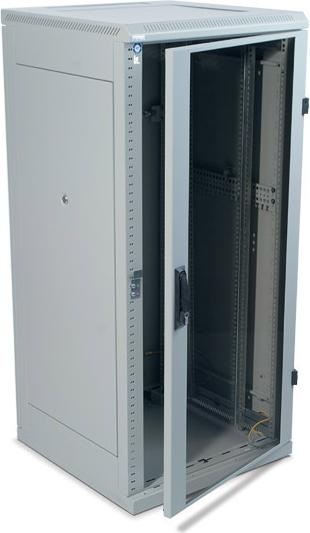

- Hinged front door with a lockable swing handle, typically with glass but may also be solid steel or perforated as required. The 180° hinge design permits easy removal of the door or a change of direction for door opening.

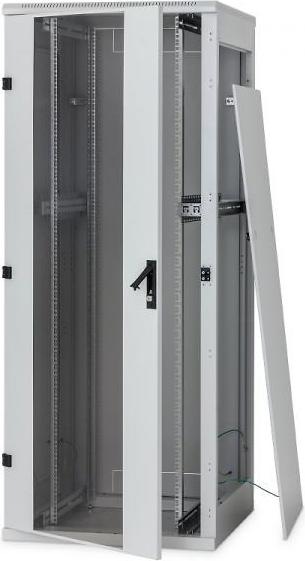

- Removable side and rear covers secured with key-operated locks.

- Cable entry points in the top, bottom, and upper and lower rear sections of the cabinet. Each entry point is covered by a breakout style blanking panel. The square area of the cable entry opening is now larger (333 cm²).

- Two pairs of vertical 19" fixing rails, which can be adjusted infinitely back and forth in the depth of the cabinet, are attached to each side. In 800mm square versions, the frame may also be adjusted across the width of the cabinet.

- Openings are provided in the base and top of the cabinet for fan units. The top fan opening is covered by a 3D cover.

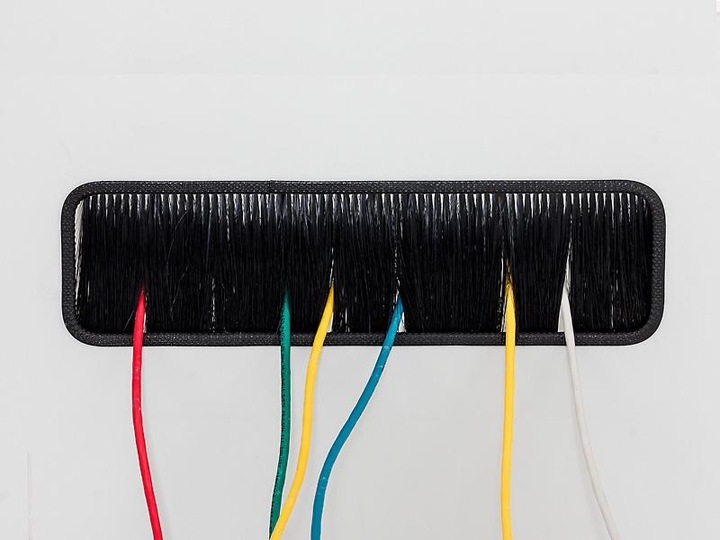

- A brush strip to restrict the ingress of dust through the chosen cable entry opening.

- Adjustable mounting and leveling feet.

- Vented top and bottom sections for natural convective ventilation.

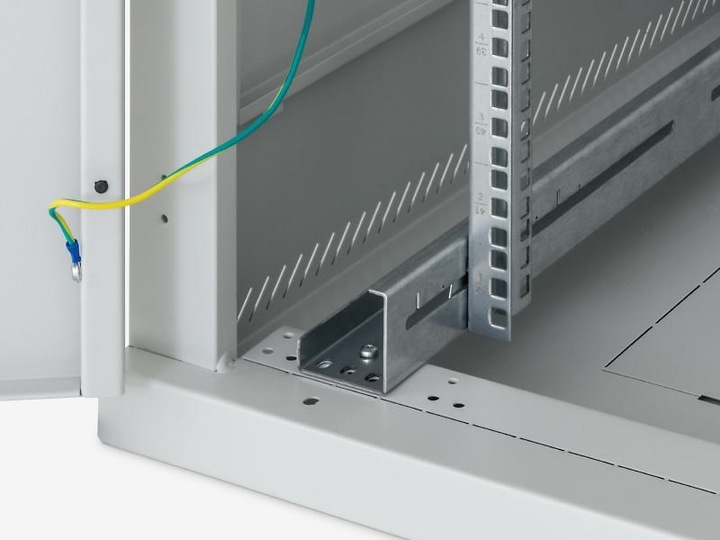

- Earthing system.

- Supplied with elementary mounting material.

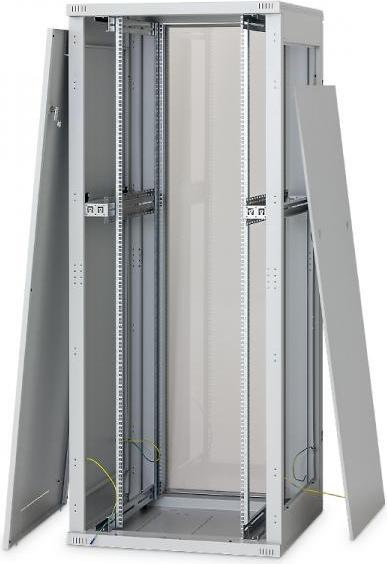

Actual product image Triton RMA-27-A68-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 27 U, 600 x 800 mm (27 RU, 19 inch rack)

Key specifications

Type

Protection type (IP code)

Server cabinet features

Item number

RMA-27-A68-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 27 U, 600 x 800 mm
