Turck Actuator and sensor cable PP-EPDM connection cable RKCV8T-15/TFW
15 mProduct details

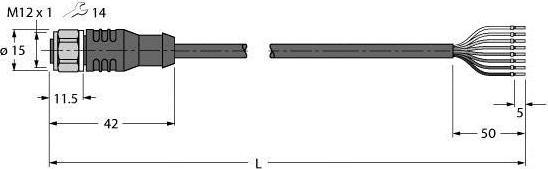

Turck actuator and sensor cable RKCV8T-15/TFW Manufacturer :Turck Designation :Actuator and sensor cable PP-EPDM Type :RKCV8T-15/TFW Sensor cable PP-EPDM Type :RKCV8T-15/TFW Number of poles :8 Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Arrangement of cable entry, housing side :straight Cable length :15 m Cable sheath material :other Cable sheath colour :white With LED indicator :no Shielded :no Cable type :multi-core Contact body material :CuZn Contact coating material :gold Perm. Permissible external cable temperature after assembly without vibration :-40..105 °C Permissible external cable temperature during installation/handling :0..80 °C Rated current In :2 A Rated voltage :30 V Turck actuator and sensor cable RKCV8T Sensor cable RKCV8T-15/TFW: more details Actuator and sensor cable / PP-EPDM, connection cable, M12 coupling, straight, 8-pin, union nut/screw in stainless steel, sheath material: PP-EPDM, sheath colour: White, Resistant to acids and alkalis, Resistant to cleaning agents and disinfectants, Hydrolysis-resistant in accordance with DIN EN 60068-2-78, Silicone- and PVC-free, Halogen-free in accordance with DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, protection class IP67, IP69K, cable length 15 m, EAN: 4047101370829.
Plug type | M12 |
Cable length | 15 m |
Item number | 36332303 |
Manufacturer | Turck |
Category | Power cables |
Manufacturer no. | 6934671 |
Release date | 15/6/2023 |
Colour | White |
Plug type | M12 |
Plug type | Flat |
Country of origin | China |
CO₂ emissions | 29,26 kg |
Climate contribution | EUR 0,76 |
Cable length | 15 m |
