Product details

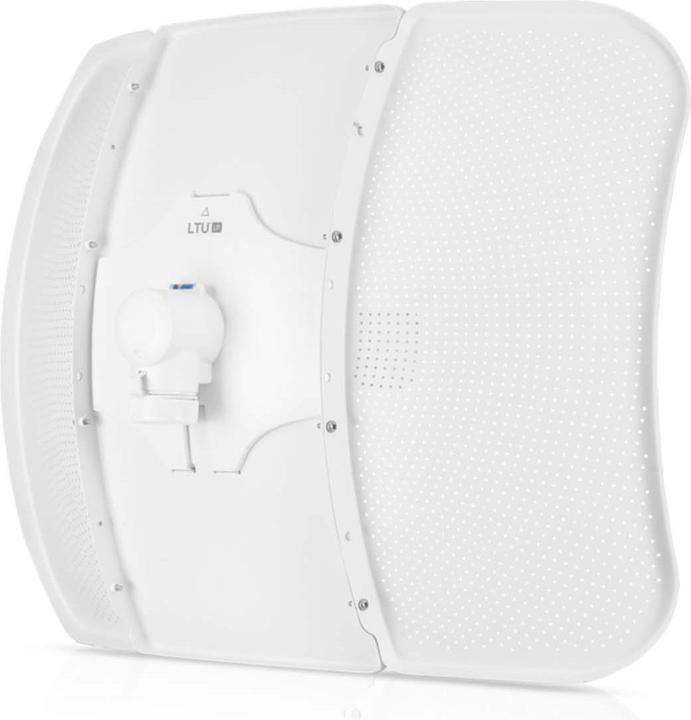

The Ubiquiti UISP LTU XR is a powerful access point designed for outdoor use. Operating at a frequency of 5 GHz, it offers a maximum data rate of up to 900 Mbit/s, making it ideal for high-bandwidth applications. The LTU XR supports Power over Ethernet (PoE), simplifying installation as no separate power supply is required. The device features a robust housing that meets the IPX6 protection standard, making it resistant to water and dust. The integrated antenna, with a gain of up to 29 dBi, allows for a range of up to 30 kilometers, making it an excellent choice for extensive networking needs. Additionally, the LTU XR is equipped with a web-based management system that enables easy configuration and monitoring. Support for the WPA2-PSK security protocol ensures that data transmission remains secure.
- Maximum data rate of up to 900 Mbit/s for high bandwidth requirements
- IPX6 protection standard for resistance against water and dust
- Range of up to 30 kilometers thanks to a powerful antenna with 29 dBi gain
- Web-based management system for easy configuration and monitoring
- Support for Power over Ethernet (PoE) for simplified installation.
Wi-Fi frequency band | Single band |
PoE Standard | Passive 24V PoE-in |
Operating modes | Bridge, Wi-Fi client |
Area of application | Outdoor |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Item number | 42074089 |
Manufacturer | Ubiquiti |
Category | Access points |
Manufacturer no. | LTU-XR |
Release date | 12/1/2024 |
Operating modes | Bridge, Wi-Fi client |
Antenna gain | 29 dB |
Long range coverage | 30 km |
Number of RJ45/LAN ports | 1 |
Max. port speed | 1000 Mbit/s |
Protection type (IP code) | IPX6 |
Access Point Functions | PoE capable |
5 GHz transfer rate | 550 Mbit/s |
Wi-Fi frequency band | Single band |
Wi-Fi encryption | WPA2-PSK |
Area of application | Outdoor |
Installation place | Rod |
Power supply | PoE |
PoE Standard | Passive 24V PoE-in |
Power consumption | 8.50 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation kit |
Length | 52.50 cm |
Width | 74.70 cm |
Height | 52.50 cm |
Weight | 3200 g |
Product Safety |
