Series: AKZ
Wire size: 24 → 14 AWG
Wire gauge: 1.5mm²
Color: Brown
Rated current: 24A
Number of levels: Single
Connection type: Screws
Operating voltage: 250 V
Operating temperature min: -50°C
Operating temperature max: +100°C

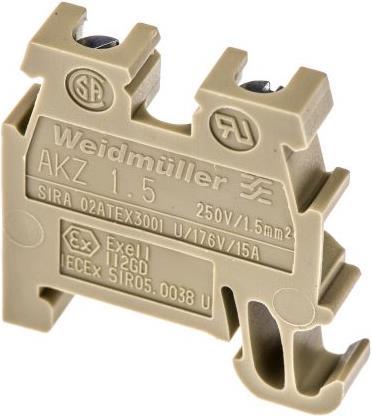

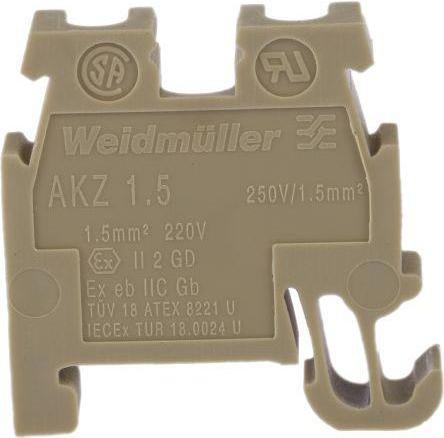

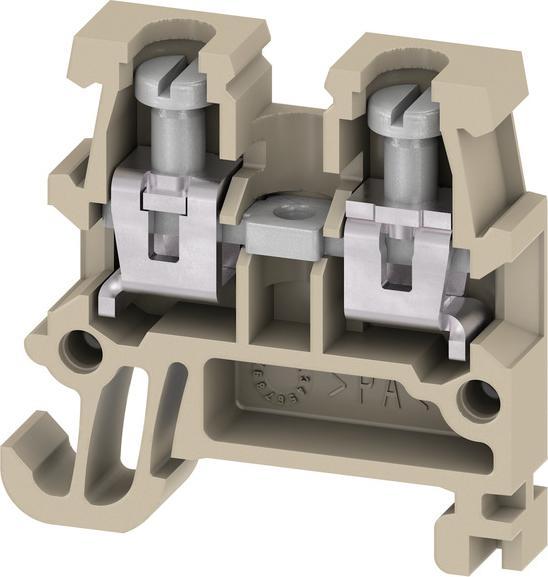

Disconnect contact terminals may only be used to isolate circuits for testing purposes. They must not be used to switch equipment on or off when voltage is present. CSA approval, UL approval. Rated voltages and currents according to VDE. AKZ Miniature Series. Miniature terminal blocks for mounting on balanced 15 mm rails in accordance with BS 6273:1982 TS15. This series is ideal for junction boxes or locations where space is at a premium. Features and benefits: molded from polyamide 6.6, with tin-plated brass contacts suitable for a temperature range of -50 °C to +100 °C.
