Series: ZDU
Wire size: 26 → 10 AWG
Wire gauge: 4mm²
Color: Blue
Rated current: 41A
Number of levels: Single
Connection type: Terminal
Operating voltage: 800 V
Operating temperature min.: -50°C
Operating temperature max.: +120°C

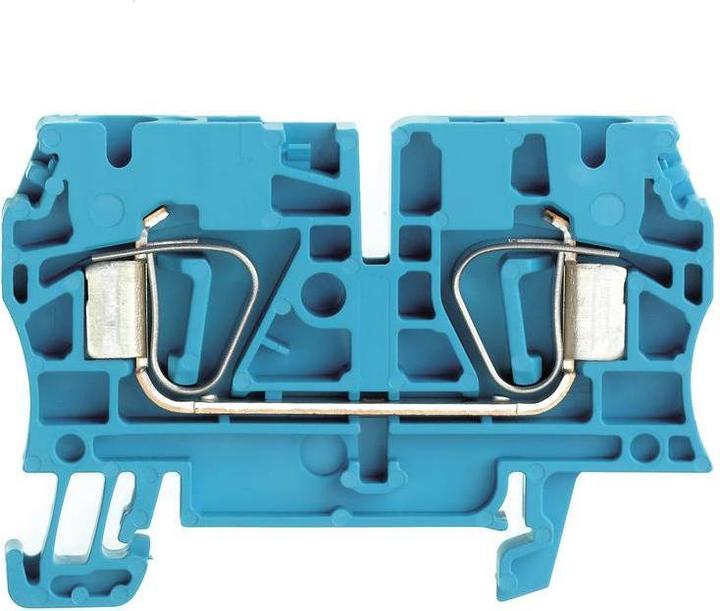

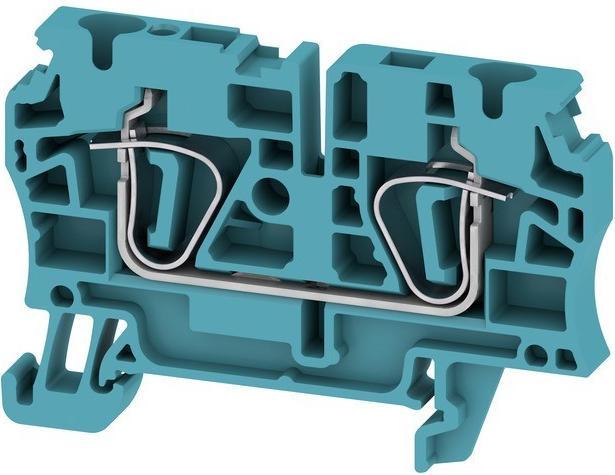

CSA, UL, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds reg. of shipping, SETI. ZDU 10 and ZDU16 terminals have CSA and UL approvals only. Standard terminal blocks. Z Series screwless DIN mounting terminals offer a top entry cable entry system that saves time and space. Quick and easy installation as the conductor is inserted through the clamping system. The system with cable entry from the top means that conductor entry and terminal actuation are from the same direction. Features and benefits include spring clamp connection, continuous operating temperature of 120 °C, self-extinguishing according to UL94V-0, and availability in various sizes, ideally suited for use where space is limited.
