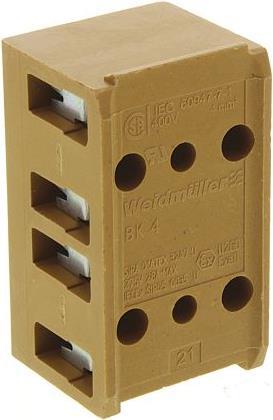

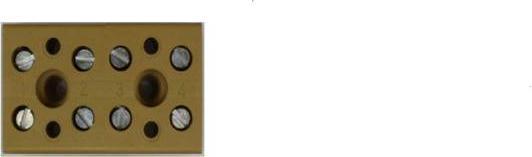

Weidmüller Non-Fused Terminal Block Screw 4 Way

Ratings
BrandMore from Weidmüller
Currently out of stock
Free shipping starting at 39,–

Product details

Series: SAK
Number of outlets: 4
Mounting type: Screw
Rated current: 32A
Connection type: Screw
Wire size: 22 to 12 AWG
Material: Melamine
Color: Beige
Operating temperature min: -60°C
Operating temperature max: +130°C
Contact material: Brass, stainless steel
Contact coating: Nickel
Hazardous area approval: ATEX II 2 GD EEx e II. Sira 01ATEX 3247U. BAS 99ATEX3084U.

All blocks are 22 mm wide and 20 mm high, with 3.4 mm diameter mounting holes. BK Series. Molded terminal blocks made of high-grade melamine. Terminals feature screw clamp fork technology that simplifies design and optimizes operational reliability.

Each through terminal is rated for 21 A/275 V. Suitable for stranded and solid conductors from 0.5 mm to 4 mm. Recommended stripping length for screw terminals: 8 mm.

Key specifications

Cable + connector type
Cords
Cable length
0.04 m
Item number
9945369

General information

Manufacturer
Weidmüller
Category
Cables + Plugs
Manufacturer no.
BK 4/E -7906080000
Release date
22/10/2018
External links
Manufacturer's site (de)

Colour

Colour
Yellow

Cable + Connector Features

Cable + connector type
Cords
mounting type
Screw holder
Cable length
0.04 m
Manufacturer Type
7906080000
Number of cores
4 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
5 Piece

Product dimensions

Length
3.80 cm
Width
2.20 cm
Height
2 cm
Weight
27.30 g

Package dimensions

Length
21 cm
Width
10 cm
Height
10 cm
Weight
278 g
