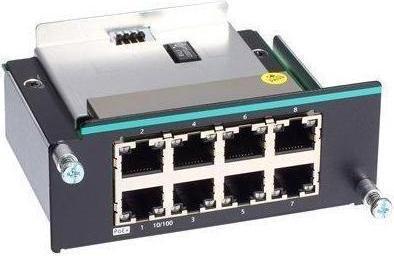

1. Moxa IM-6700A-8POE - Fast Ethernet PoE module with 8 100BaseT(X) PoEPoE ports (for IKS-6728A-8PoE Ser

Moxa's industrial rackmount switches offer modular flexibility with routing and switching capabilities featuring 24 to 52 ports, security functions based on the IEC 62443 standard, and fast multicast traffic redundancy at the millisecond level to enhance IIoT infrastructures such as city, transportation, manufacturing, and surveillance applications.

Fast Ethernet PoE+ module with 8 100BaseT(X) PoE/PoE+ ports (for IKS-6728A-8PoE series only)

Ethernet Interface
- PoE Ports (10/100BaseT(X), RJ45 connector) 8
Speed with auto-negotiation
Full/Half duplex mode
Auto-MDI/MDI-X connection
- Standards IEEE 802.3af/at for PoE/PoE+ output

Power Parameters
- Power consumption 1.21 W (max.)

Physical Characteristics
- Weight 260 g (0.58 lb)

MTBF
- Time 3,525,730 hours
- Standards Telcordia (Bellcore), GB. more

Network accessories

−6%

EUR659,– was EUR699,–

Moxa IM-6700A-8POE - Fast Ethernet PoE module with 8 100BaseT(X) PoEPoE ports (for IKS-6728A-8PoE Ser

2. Moxa SPL-24 - PoE splitter with maximum power of 12.95 W at 24 VDC

The Moxa SPL-24 PoE splitter is a reliable solution for power and data transmission over standard Ethernet cables. With a maximum output of 12.95 W at 24 VDC, this splitter enables the connection of Ethernet-enabled devices by distributing power from the injector to the connected devices. The SPL-24 is designed to operate in a temperature range of 0 to 60°C, while a special variant can be used in extreme temperatures from -40 to 75°C. Its robust construction ensures reliable performance in industrial applications where stability and durability are required. The splitter supports various Ethernet standards and offers easy installation via DIN rail mounting.

- Supports IEEE 802.3af for PoE and IEEE 802.3 for 10BaseT
- Operating voltage of 44 to 75 VDC with overload current protection
- Easy installation with removable 3-contact terminal block
- Robust design for industrial applications
- IP30 protection rating for additional protection against dust and contact. more

Network accessories

EUR199,–

Moxa SPL-24 - PoE splitter with maximum power of 12.95 W at 24 VDC

PoE Splitter

3. Moxa IOTHINX 4533-LX-T - Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linu

The IOTHINX 4533-LX-T from Moxa is a modern modular controller specifically designed for the demands of complex IIoT applications. With a dual-core 1 GHz CPU and the Moxa Industrial Linux operating system, this device provides a powerful platform for energy management, machine management, transport management, and remote asset management. The controller is built for use in challenging environments and can withstand temperatures ranging from -40 to 75 °C. Its modular design allows for flexible adaptation to various applications, while the integrated serial interface and extensive communication options ensure seamless integration into existing systems. The IOTHINX 4533-LX-T is therefore an ideal solution for companies seeking a robust and versatile control solution.

- Dual-core 1 GHz CPU for high performance
- Expandable communication and I/O capabilities
- Operating temperature range of -40 to 75 °C
- Security features such as AES-256 encryption and TPM 2.0
- Modular design supporting up to 64 I/O modules. more

Network accessories

EUR1099,–

Moxa IOTHINX 4533-LX-T - Advanced modular controller with built-in serial port, dual-core 1 GHz CPU, Linu

4. Moxa SPL-24-T - PoE splitter with a maximum output of 12.95 W at 24 VDC

The Moxa SPL-24-T PoE splitter is a reliable solution for powering non-PoE devices over a PoE network. With a maximum output of 12.95 W at 24 VDC, this splitter enables efficient power distribution and is ideal for use in demanding environments. The SPL-24-T is designed for operating temperatures ranging from -40 to 75 °C, making it particularly robust and versatile. The Ethernet interface supports both 10BaseT and 100BaseT(X) with Auto-MDI/MDI-X connection and automatic speed negotiation, allowing for easy integration into existing networks. Additionally, the splitter features an IP30 protection rating, which safeguards it against dust and contact, and is designed for mounting on DIN rails, facilitating installation.

- Operating temperature range of -40 to 75 °C for use in extreme environments
- Supports IEEE 802.3af for PoE and provides a nominal output voltage of 24 VDC
- Overcurrent protection for added safety
- Easy mounting on DIN rail for flexible installation options
- IP30 protection rating for protection against dust and contact. more

Network accessories

−7%

EUR279,– was EUR299,–

Moxa SPL-24-T - PoE splitter with a maximum output of 12.95 W at 24 VDC

Network Accessories

5. Moxa MGATE 5122-T - 1-port CANopenJ1939-to-EtherNetIP gateways, -40 to 75C operating temperature

The MGATE 5122-T is a highly advanced 1-port CANopen/J1939 to EtherNet/IP gateway designed for use in demanding industrial environments. With an operating temperature range of -40 to 75 °C, this device is ideal for applications that require extreme conditions. The Ethernet interface supports 10/100BaseT(X) connections via an RJ45 port and offers Auto MDI/MDI-X functionality. The built-in magnetic isolation protection with 1.5 kV ensures additional safety and reliability. The gateway supports a variety of industrial protocols and provides extensive configuration options through a user-friendly web console. Security features such as authentication, encryption, and support for various security protocols ensure the protection of sensitive data. With the capability to manage up to 64 nodes in CANopen mode and support for a high number of PDOs, the MGATE 5122-T is a powerful solution for integrating CANopen and J1939 into Ethernet networks.

- Operating temperature range of -40 to 75 °C for extreme environments
- Integrated magnetic isolation protection with 1.5 kV
- Supports a variety of industrial protocols
- Comprehensive security features including AES-256 encryption
- Maximum of 64 nodes in CANopen mode with support for up to 256 PDOs. more

Network accessories

−23%

EUR989,– was EUR1279,–

Moxa MGATE 5122-T - 1-port CANopenJ1939-to-EtherNetIP gateways, -40 to 75C operating temperature

6. Moxa TRC-2190-AC - 2U rackmount housing, with a single 110 to 240 VAC input

The TRC-2190-AC is a 2U rackmount chassis specifically designed for the integration of CSM-400 series media converter modules for Ethernet-to-Fiber management. It accommodates up to 18 modules and allows for efficient management and monitoring via SNMP and a web console. The chassis supports both AC and DC power inputs and can be equipped with an optional redundant power expansion module to enhance reliability. With a fanless design and a wide operating temperature range of -20 to 55 °C, it is ideal for industrial applications. The Ethernet interface includes two 10/100BaseT(X) ports, enabling flexible network connectivity. Thus, the TRC-2190-AC is a robust and versatile solution for network accessories.

- Supports up to 18 CSM-400 series media converter modules
- Remote management and monitoring via SNMP/web console
- Optional redundant power expansion module for increased reliability
- Fanless chassis design for quiet operation
- Operating temperature range of -20 to 55 °C. more

Network accessories

EUR1169,–

Moxa TRC-2190-AC - 2U rackmount housing, with a single 110 to 240 VAC input

Network Accessories

7. Moxa Anti-vibration wiring kit

Network accessories

−8%

EUR32,90 was EUR35,90

Moxa Anti-vibration wiring kit

8. Moxa PWR-101-LV-BP-I - Power supply module for PoE models of the EDS-4000G4000 series with 48 VDC

The managed Layer 2 switches from Moxa are characterized by industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer robust, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for railway applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

Power supply module for PoE models of the EDS-4000/G4000 series with 48 VDC redundant dual inputs, power isolation, and an operating voltage of 44 to 57 VDC (over 52 VDC recommended for PoE+ output).

Power supply parameters
Note:
- The device model name of the EDS-4000/G4000 series and the power supply parameters are determined by the installed PWR-100 power supply module.
- PWR-100-LV: -LV/-LV-T models
- PWR-105-HV-I: -HV/-HV-T models
- PWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)
- PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)
- Example: EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T, EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVT
- If you install a different power supply module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.
- Power over Ethernet: Only the models EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS(-T) support PoE. If a PoE-capable module from the PWR-100 series (PWR-101-LV-BP-I, PWR-103-LV-VB-I) is installed in a non-PoE-capable model of the EDS-4000/G4000 series, the PoE functionality will not be available.

Connection:
- 2 removable 4-contact terminal blocks

Input voltage:
- 48 VDC

Operating voltage:
- 44 to 57 VDC (over 52 VDC recommended for PoE+ output)

Input current:
- 48 VDC, 5.42 A

Number of power inputs:
- Redundant... more

Network accessories

−6%

EUR479,– was EUR509,–

Moxa PWR-101-LV-BP-I - Power supply module for PoE models of the EDS-4000G4000 series with 48 VDC

9. Moxa OPT8-RJ45 - M62 to 8 x RJ45 (8-pin) connection box, 30 cm

Moxa cables are available in a variety of lengths and with different pin options to ensure compatibility for a wide range of applications. Moxa connectors include a selection of pin and coding types with high IP protection ratings to ensure suitability for industrial environments.

M62 to 8 x RJ45 (8-pin) connection box, 30 cm

Connectors
- PCB-side connector DB62 (male) x 1
- Device-side connector 8-pin RJ45 x 8

Physical properties
- Dimensions 152.8 x 32.8 x 32 mm (6.02 x 1.29 x 1.26 in). more

Network accessories

−7%

EUR139,– was EUR149,–

Moxa OPT8-RJ45 - M62 to 8 x RJ45 (8-pin) connection box, 30 cm

Network Accessories

10. Moxa IMC-P101-S-ST-T - PoE industrial media converter from 10100BaseT(X) to 100BaseFX

The IMC-P101-S-ST-T is a powerful PoE industrial media converter that enables seamless Ethernet media conversion from 10/100BaseT(X) to 100BaseFX. This converter is ideal for industrial applications as it offers both robustness and flexibility. With the ability to deliver up to 30 watts to powered devices (PDs), it eliminates the need for additional cabling and simplifies installation. The IMC-P101 supports various Ethernet standards, including IEEE 802.3/802.3u/802.3x, and provides both full and half-duplex operation. It is designed for use in extreme environments and can withstand temperatures ranging from -40 to 75 °C, making it a reliable choice for demanding industrial networks. The converter is equipped with an ST connector for fiber optics and features a magnetic isolation protection of 1.5 kV to ensure the safety and integrity of data transmission.

- Supports IEEE 802.3/802.3u/802.3x for versatile network compatibility
- Operating temperature range of -40 to 75 °C for extreme environments
- Integrated magnetic isolation protection of 1.5 kV
- Easy mounting on DIN rail for flexible installation options
- PoE functionality to power devices over Ethernet cables. more

Network accessories

EUR1089,–

Moxa IMC-P101-S-ST-T - PoE industrial media converter from 10100BaseT(X) to 100BaseFX
