Best selling Network cables from Draka
On this page you'll find a ranking of the best Draka products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Draka Network cable
Infrastructure for the technological enjoyment of tomorrow. Living in the 21st century requires more than just a roof over your head. The concept of smart homes not only offers new possibilities for interactively using various media or devices but also makes life more comfortable and secure, while helping to save on energy costs. A prerequisite is always the networking of different devices with each other or with the internet. The RJ-45 connection (Ethernet) plays an increasingly important role in this. It is no longer reserved solely for computers but is being used by more and more devices, whether it's a television, gaming console, or washing machine. Thus, the Ethernet network represents a future-oriented infrastructure solution. This trend has been addressed by a newly created standard. EN 50173-4 describes the proper installation of application-neutral communication cabling systems in residential buildings. Such an infrastructure, referred to in technical terms as structured cabling, guarantees maximum data rates with minimal susceptibility to interference, thus providing an advantage over conventional application-specific cabling.

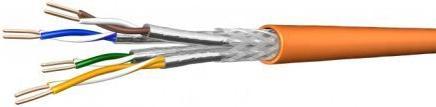

2. Draka Installation cable UC900 HS23, Cat 7, S/FTP, PiMF, orange, 500m drum
Draka installation cable for indoor use UC900 HS23 Cat.7S/FTP 4P LSHF Eca
- Copper data cable of Cat.7 for structured building cabling with a bandwidth of 1000 MHz.
- The cable is double shielded with foil pair shielding and a high-quality braided jacket.
- The 4-pair simplex installation cable with 8 copper wires AWG23 is suitable for connecting sockets, patch panels, and modules, including IDC technology, for installation in buildings, in conduits, and flush-mounted.
- The product meets the requirements of EN50173-1, EN50288-4-1, ISO/IEC11801, IEC61156-5, and IEEE802.3af/at/bt.
- The jacket is made of halogen-free, flame-retardant material according to IEC60332-1, IEC60754-2, IEC61034, EN50399, and Eurofireclass Eca. With a sound insulation of 80 dB, the shielding meets separation class D according to EN50174.
- The cable is future-proof for applications in class C, D, E, EA, and F and is suitable for PoE and PoE+ operation over a channel length of up to 100 m. It is suitable for the following applications: telephony, Ethernet, Fast Ethernet, Gigabit Ethernet, and 10Gigabit Ethernet, 10BaseT, 100BaseT, 1000BaseT, 1GBase-T, 10GBaseT, or up to 10,000 Mbit/s.
Network cables
EUR548,88 EUR1,10/1m
Draka Installation cable UC900 HS23, Cat 7, S/FTP, PiMF, orange, 500m drum
S/FTP, CAT7, 500 m
3. Draka DRMC data cable flex Cat7 1000MHz Dca
The DRMC Data Cable Flex Cat7 1000MHz Dca from Draka is a high-performance network cable designed for modern network architectures. It exceeds the requirements of Category 7 according to the standards EN 50173-1, 50288-4-2, and ISO/IEC 11801. With a frequency of up to 1000 MHz, it offers excellent bandwidth suitable for applications such as 10GBase-T. The cable is pair and overall shielded (PiMF), ensuring optimal signal transmission and resistance to interference. The halogen-free outer sheath provides additional safety regarding fire behavior and emissions. This cable is ideal for use in demanding network environments where reliability and performance are of utmost importance.
- Exceeds Category 7 requirements according to EN 50173-1 and ISO/IEC 11801
- Pair and overall shielded (PiMF) for improved signal quality
- Halogen-free outer sheath (LSZH) for increased safety
- Suitable for applications up to 10GBase-T
- Flame resistance according to EN50399: Class Dca s2 d2 a1.
4. Draka S/FTP installation cable UC900, 250 m,Cat.7 raw cable, 900 MHz solid copper conductor, outer sheath
The Draka S/FTP installation cable UC900 is a high-performance copper cable specifically designed to meet the demands of modern network technology. With a length of 250 meters and a bandwidth of up to 1000 MHz, it exceeds the Category 7 standards according to EN 50173-1, 50288-4-1, and ISO/IEC 11801, 61156-5. The cable features pair and overall shielding (PimF) that provides 65% coverage to minimize interference and signal loss. The outer sheath is flame-retardant and halogen-free (LSZH), making it a safe choice for installations in sensitive environments. The copper solid conductor with an American Wire Gauge (AWG) of 23 ensures reliable signal transmission and durability. This cable is ideal for installation in offices, data centers, and other professional applications where high data transfer rates and security are required.
- Exceeds Category 7 requirements according to international standards
- Bandwidth of up to 1000 MHz for high data transfer rates
- Pair and overall shielding (PimF) with 65% coverage
- Flame-retardant and halogen-free outer sheath (LSZH)
- Copper solid conductor with AWG 23 for reliable signal transmission.
Network cables
EUR379,– EUR1,51/1m
Draka S/FTP installation cable UC900, 250 m,Cat.7 raw cable, 900 MHz solid copper conductor, outer sheath
S/FTP, CAT7, 250 m

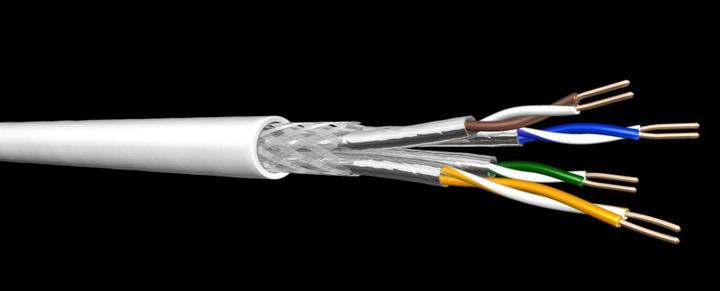

5. Draka UC HomeCat.7 Raw cableA SS22 4P LSHF-FR4x2 AWG22 200m Unwind box60095153
The UC HomeCat.7 raw cable from Draka is a high-quality copper cable specifically designed for network connections. With a length of 200 meters, it offers a reliable solution for data transmission in demanding environments. The cable belongs to category CAT7, which means it enables high transmission rates and improved signal quality. The cable's shielding is S/FTP, providing additional protection against electromagnetic interference and optimizing performance in environments with many sources of disturbance. The use of LSHF material ensures that the cable can also be used in sensitive areas, as it produces less smoke in the event of a fire. This product is ideal for professional installations and applications where high bandwidth and reliability are required.
- Category CAT7 for high transmission rates
- S/FTP shielding for improved signal quality
- LSHF material for reduced smoke development
- Suitable for professional network installations.
Network cables
EUR299,– EUR1,50/1m
Draka UC HomeCat.7 Raw cableA SS22 4P LSHF-FR4x2 AWG22 200m Unwind box60095153
S/FTP, CAT7a, 200 m

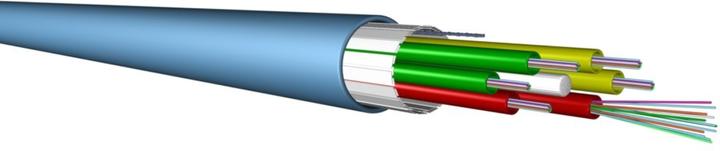

6. Draka UCHome
Draka Comteq (DNT) UCHome Idrop900 I-VH LS9 60096085-Dca-Box250
Manufacturer: Draka Comteq (DNT)
Description: UCHome Idrop900 I-VH LS9 4 SM7B white
Type: 60096085-Dca-Box250
Number of fibers: 4
Conductor type: semi-loose full conductor
Number of fibers per conductor: 4
Fiber type: Singlemode 9/125
Category: OS2
With strain relief: yes
Reinforcement: no
With rodent protection: no
Sheath material: other
Sheath color: white
Cable longitudinally water-resistant: no
Cable transversely water-resistant: no
Fire behavior class according to EN 13501-6: Dca
Smoke development class according to EN 13501-6: s1
Dripping behavior class according to EN 13501-6: d1
Acid development class according to EN 13501-6: a1
Halogen-free according to EN 60754-1/2: yes
Flame retardant: according to IEC/EN 60332-1-2
Function maintenance: none
Outer diameter approx.: 4.5 mm
Min. permissible bending radius, stationary use/fixed installation: 7.5 mm
Max. tensile strength during installation: 1 kN
Cable geometry: round
Weight: 21 kg/km
The UCHome Fibre Idrop 900 cable is designed for connecting participants in Fiber To The Home / Fiber In The Home (FTTH/FITH) networks. It is suitable as a connection cable between the house transition point and the individual connection sockets in FTTH/FITH networks. The cable construction is halogen-free and flame retardant. The space requirement for installation in ducts, pipes, etc. is very low due to the outer diameter of 4.5 mm. Additionally, it has high transverse pressure resistance and tensile strength. The fiber used meets both the ITU G.657A2 and G.657B2 standards as well as ITU G.652D. The low bending sensitivity ensures that the 1625 nm window (L-Band) can be utilized for future bandwidth needs and allows for reduced bending radii.
Delivery form: Box 250 m, EAN: 4065624004410.
7. Draka Fibre optic cable
8. Draka Comteq Cat.6a 10m Cat6a S/FTP (S-STP) Black
Top speed all the way into the connector - don't let slow components slow you down. Now you can be on the road with 10 Gigabit Ethernet from start to finish! Here are the real Cat.6A patch cables with components that all meet Cat.6A requirements even individually and allow transmissions up to 500 MHz.
DRAKA UC900 SS27: High-quality flexible patch cable for applications up to at least 500 MHz. HIROSE TM31: Especially high-quality RJ-45 connector - the only one that meets de-embedded Cat.6A requirements!
Construction:
- Cable type: S/FTP (PiMF cable)
- Impedance: 100 Ohm
- Inner conductor: 8 cores AWG 27/7 copper strand
- Outer diameter: 5.9 mm
- Reference pair shielding: aluminum-coated plastic foil
- Overall shielding: copper braided shield tinned
- Contact assignment: 8 cores 1:1
Main features:
- Cable length: 10 m
- Cable standard: Cat6a
- Cable class: Ea
- Connector 1: RJ-45
- Connector 2: RJ-45
- Gender: Male/Male
- Cable shielding: S/FTP (S-STP)
- Product color: Black
- Synchronization input impedance.
Network cables
EUR24,08 EUR2,40/1m
Draka Comteq Cat.6a 10m Cat6a S/FTP (S-STP) Black
S/FTP, CAT6a, 10 m
9. Draka Comteq TM31 Patch Cat6 10m
Maximum speed all the way to the plug - Don't let slow components hold you back. Now you can be on the go with 10 Gigabit Ethernet from start to finish! Here are the first true Cat. 6a patch cables with components that individually meet the Cat. 6a requirements and allow transmissions up to 500 MHz! DRAKA UC900 SS27: High-quality flexible patch cable for applications up to at least 500 MHz. HIROSE TM31: Particularly high-quality RJ-45 connector - the only one that meets the de-embedded Cat. 6a requirements!
Construction:
Cable type: S/FTP (PiMF cable)
Impedance: 100 Ohm
Conductor: 8 wires AWG 27/7 Cu-stranded
Outer diameter: 5.9 mm
Pair shielding: Aluminum-coated plastic foil
Overall shielding: Tinned Cu-braid
Contact assignment: 8 wires 1:1
Main features:
Technical details
Cable length: 10 m
Cable type: Cat6a
Connector 1: RJ-45
Connector 2: RJ-45
Gender type: male/male
Connector contacts plating
Product color: Red
Additional specifications: Resistance 100.
10. Draka Comteq Cat.6a 5m
Top speed all the way into the connector - don't let slow components slow you down. Now you can be on the road with 10 Gigabit Ethernet from start to finish! Here are the real Cat.6A patch cables with components that all meet Cat.6A requirements even individually ("de-embedded") and allow transmissions up to 500 MHz.
DRAKA UC900 SS27: High-quality flexible patch cable for applications up to at least 500 MHz. HIROSE TM31: Particularly high-quality RJ-45 connector - the only one that meets de-embedded Cat.6A requirements!
Construction:
- Cable type: S/FTP (PiMF cable)
- Impedance: 100 Ohm
- Inner conductor: 8 cores AWG 27/7 copper strand
- Outer diameter: 5.9 mm
- Reference pair shielding: aluminium-coated plastic foil
- Overall shielding: copper braided shield tin-plated
- Contact assignment: 8 cores 1:1
Main features:
- Cable length: 5 m
- Cable standard: Cat6a
- Cable class: Ea
- Connector 1: RJ-45
- Connector 2: RJ-45
- Gender: Male/Male
- Cable shielding: S/FTP (S-STP)
- Product color: Black
- Synchronization input impedance.
