Best selling Network switches from Schneider Electric
On this page you’ll find a ranking of the best Network switches from Schneider Electric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

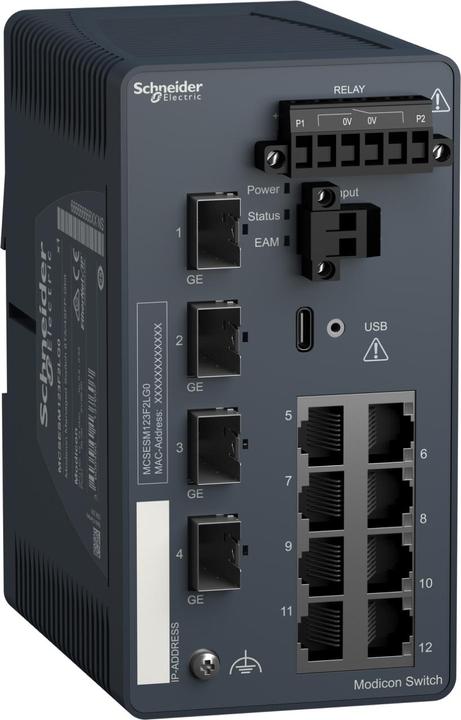

1. Schneider Electric MCSESM123F2LG0
This product is part of the Modicon Switch range, an offering from Modicon Managed Switch. This managed switch is equipped with Ethernet TCP/IP protocol. It features 8 copper cable transmission ports and 4 SPF ports that can support a 1-Gigabit transmission rate. It provides simple and complex connectivity for multiple Ethernet devices, network management, enhanced cybersecurity, and advanced switching functions. This product operates with a power consumption of 9 W and a nominal voltage of 12 V to 24 V DC. An additional 1 W is consumed for each SPF port. It has a detachable 6-pin power supply connector. It features shielded ports suitable for medium, isolated networks or systems with moderate network traffic and networks of medium complexity. It is CE, UL, RCM, EAC, UKCA, and DNV certified and complies with standards UL 61010, EN/IEC 61131, and EN/IEC 62368-1. It is designed for mounting on a symmetrical 35 mm DIN rail. It has low power consumption and a compact footprint. Additionally, it offers simple connectivity for multiple Ethernet devices. The Modicon Networking series provides you with an intelligent and flexible way to integrate Ethernet solutions into your operations, from the device level through the control network to your enterprise network.
2. Schneider Electric MTN683890
Schneider Electric KNX Power Supply MTN683890
Manufacturer: Schneider Electric
Designation: KNX Power Supply REG-K/640 mA
Type: MTN683890
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Modular Units: 4
With LED Display: yes
Bus Voltage Bufferable: yes
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 640 mA
Secondary Voltage: 30 V
The Schneider Electric KNX Power Supply MTN683890 generates the bus voltage for a line with a maximum of 64 bus participants. An emergency power supply REG can be connected to buffer the bus voltage. It features an integrated choke to decouple the power supply from the bus, as well as a button for interrupting the voltage and resetting the bus participants connected to the line.
Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal; a data rail is not required. Mains Voltage: AC 110 - 230 V, 50-60 Hz; Output Voltage: DC 30 V; Output Current: maximum 640 mA, short-circuit proof. Device Width: 4 TE, approximately 72 mm. Delivery includes: with bus connection terminal and cable cover.

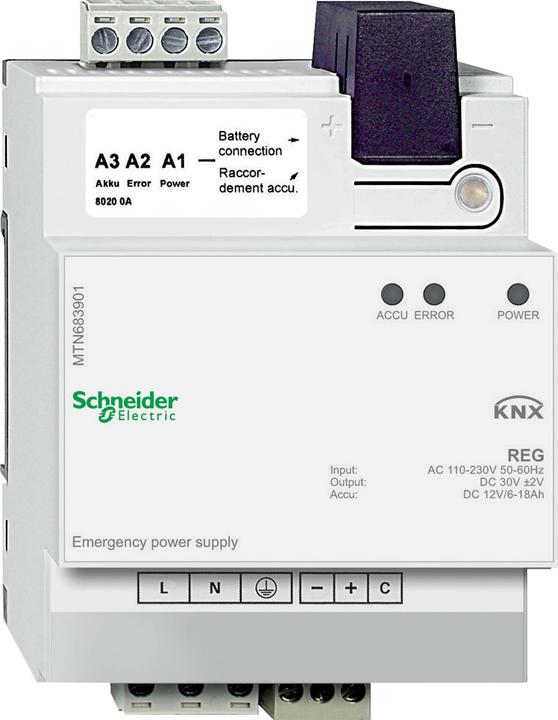

3. Schneider Electric MTN683901
Schneider Electric Emergency Power Supply REG MTN683901
Manufacturer: Schneider Electric
Designation: Emergency Power Supply REG
Color: Light gray
Type: MTN683901
KNX Bus System: Yes
KNX Wireless Bus System: No
Wireless Bus System: No
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Mounting Type: REG
Width in Modular Units: 4
With LED Display: Yes
Bus Voltage Bufferable: No
Max. Output Current: 640 mA
Secondary Voltage: 230 V
Additional Details:
Schneider Electric KNX for buffering the bus voltage. An external lead-gel battery with a voltage of DC 12 V (SELV) can be connected to the emergency power supply REG for buffering in the event of a complete power failure. The integrated charging electronics will recharge the lead-gel battery or maintain its charge level. A binary input can be connected to monitor operational states (mains voltage, fault warning, battery operation).
Designed for mounting on TH35 DIN rails according to EN 60715. A data rail is not required.
Mains voltage AC 110 - 230 V, 50-60 Hz.
Output for power supply: Output voltage DC 30 V +/-2 V.
Device width of 4 TE corresponds to approximately 72 mm.
Scope of Delivery: Includes connection terminal and cable cover.
EAN: 3606485100265.

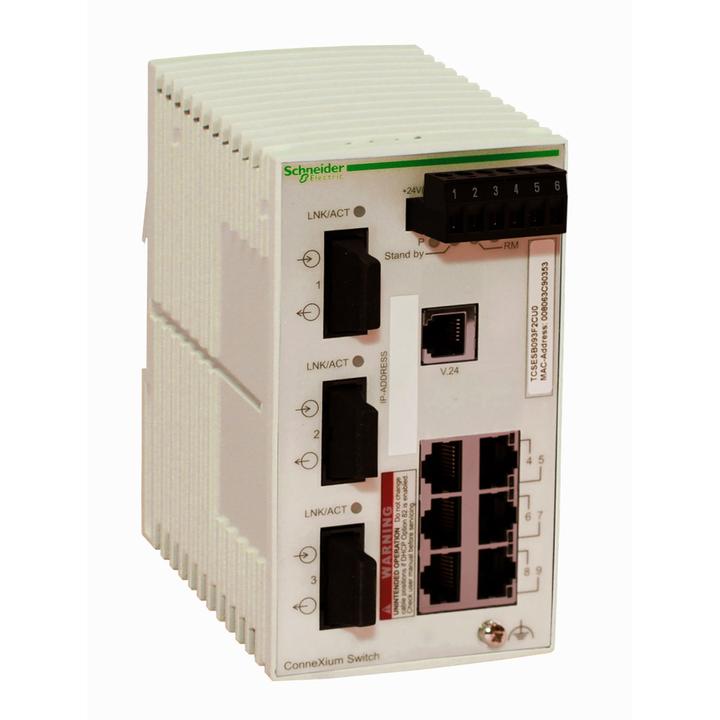

4. Schneider Electric ConneXium Basic Managed Switch - 6 ports for copper (6TX 10/100 Mbit/s) + 3 for fibre optic
The ConneXium Basic Managed Switch from Schneider Electric is a powerful network component specifically designed for integration into industrial applications. With a total of nine ports, including six RJ45 connections for copper cables and three SFP ports for fiber optic connections, this switch provides a flexible and reliable solution for network communication. Support for 10/100 Mbit/s enables efficient data transmission, while the multimode functionality of the fiber optic ports ensures extended range and improved signal quality. The switch is designed for use in demanding environments and meets the robustness and reliability requirements necessary for industrial networks. With a compact design and easy integration into existing systems, the ConneXium Basic Managed Switch is an ideal choice for companies looking to optimize their network architecture.
- Six RJ45 ports for copper cables with 10/100 Mbit/s
- Three SFP ports for fiber optic connections
- Designed for industrial applications with high reliability.
Network switches
EUR1524,32
Schneider Electric ConneXium Basic Managed Switch - 6 ports for copper (6TX 10/100 Mbit/s) + 3 for fibre optic
9 ports
5. Schneider Electric Schneider Modicon Managed MCSESM043F23F0Switch -4 ports for copper - copper wire
This product is part of the Modicon Switch range, an offering from Modicon Managed Switch. This managed switch comes with the Ethernet TCP/IP protocol. It features 4 transmission ports for copper cables. It provides simple and complex connectivity for multiple Ethernet devices, network management, enhanced cybersecurity, and advanced switching functions. This product has a power consumption of 5 W and a nominal voltage of 12 to 24 V DC. It includes a detachable 6-pin power supply connector. It has shielded ports suitable for medium, isolated networks or systems with moderate network traffic and networks of medium complexity. It is CE, UL, RCM, EAC, UKCA, and DNV certified and complies with the standards UL 61010, EN/IEC 61131, and EN/IEC 62368-1. It is designed for mounting on a symmetrical 35mm DIN rail. It has low power consumption and a compact footprint. Additionally, it offers simple connectivity for multiple Ethernet devices. The Modicon Networking series provides you with an intelligent and flexible way to integrate Ethernet solutions into your operations, from the device level through the control network to your enterprise network.
Network switches
EUR624,33
Schneider Electric Schneider Modicon Managed MCSESM043F23F0Switch -4 ports for copper - copper wire
4 ports
6. Schneider Electric Schneider TCSESPU093F2CS0 CONNEXIUM
The Schneider TCSESPU093F2CS0 CONNEXIUM is a powerful unmanaged PoE switch specifically designed for use in network infrastructures. With a total of 9 ports, including 7 RJ45 connections for copper and 2 SFP ports for single-mode fiber, this switch offers a flexible and reliable solution for connecting devices. The switch supports Power over Ethernet (PoE) technology, which allows for the transmission of both data and power over the same cable, significantly simplifying the installation and operation of network devices. With a compact design and low power consumption of only 6.9 watts, the TCSESPU093F2CS0 is ideal for applications where space and energy efficiency are critical. This switch is suitable for various network environments and provides Layer 2 switching functionality that ensures efficient data transmission.
- Unmanaged PoE switch for easy installation and use
- 7 RJ45 ports for copper and 2 SFP ports for fiber
- Energy-efficient with a power consumption of only 6.9 watts
- Suitable for various network environments with Layer 2 switching.
7. Schneider Electric MCSESM163F23F0
This product is part of the Modicon Switch range, an offering from Modicon Managed Switch. This managed switch is equipped with Ethernet TCP/IP protocol. It features 16 copper cable transmission ports, providing simple and complex connectivity for multiple Ethernet devices, network management, enhanced cybersecurity, and advanced switching capabilities. This product has a power consumption of 10 W and a nominal voltage of 12 to 24 V DC. It comes with a detachable 6-pin power supply connector. It has shielded connections suitable for medium, isolated networks or systems with moderate network traffic and networks of medium complexity. It is CE, UL, RCM, DNV, and ATEX certified and complies with the standards UL 61010, EN/IEC 61131, and EN/IEC 62368-1. It is designed for mounting on a symmetrical 35 mm DIN rail. It has low power consumption and a compact footprint. Additionally, it offers simple connectivity for multiple Ethernet devices. The Modicon Networking series provides you with an intelligent and flexible way to integrate Ethernet solutions into your operations, from the device level through the control network to your corporate network.

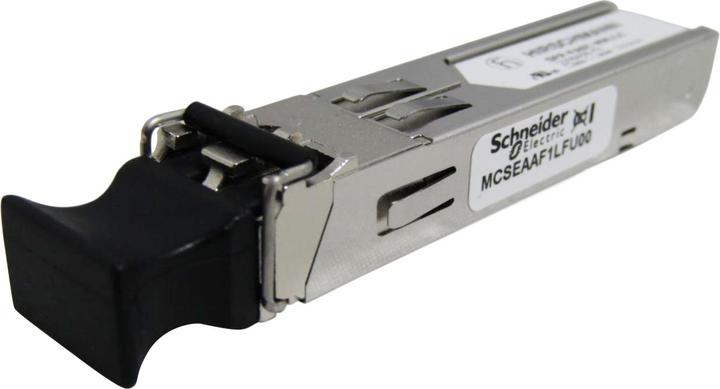

8. Schneider Electric MCSEAAF1LFU00
This product is part of the Modicon Switch series, an accessory from Modicon Switch. It is a multimode fibre optic adapter compatible with MCSESM and TCSESM switches.

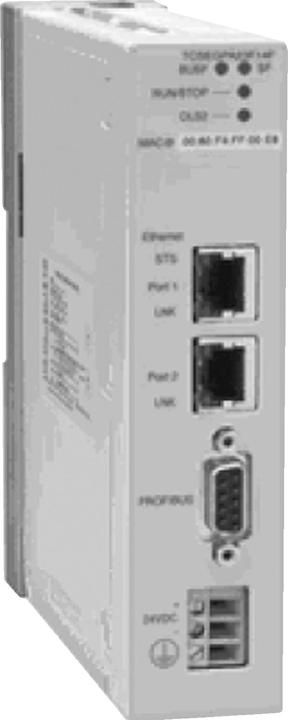

9. Schneider Electric TCSEGPA23F14FK
This product is part of the Profibus DP series, a range of remote master modules. The Profibus Remote Master (PRM) module connects to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and instrumentation. It features a shielded Profibus-2 cable and a Category 5 (STP, shielded twisted pair) Modbus TCP transmission medium. It is equipped with 2 Ethernet TCP/IP RJ45 ports for Modbus TCP and a Profibus DP SUB-D 9 port for Profibus DP V1 connections. Communication services include: checking the slave configuration (upon power-up) as a Class 1 Master, managing monitoring requests (Global CONTROL and Get Master Diag) as a Class 2 Master, and no Master/Master dialogue as a Class 2 Master, among others. This product can be used to connect Modicon Quantum, Premium, M580, and M340 programmable logic controllers (PLCs) to Profibus DP V1 via the I/O scanner function. The kit includes a CD with the communication DTM and a CD with the master DTM for configuration within UNITY.
10. Schneider Electric TCSEGPA23F14F
This product is part of the Profibus DP series, a range of remote master modules. The Profibus Remote Master (PRM) module connects to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and instrumentation. It features a shielded Profibus-2 cable and a Category 5 (STP, shielded twisted pair) Modbus TCP transmission medium. It is equipped with 2 Ethernet TCP/IP RJ45 ports for Modbus TCP and a Profibus DP SUB-D 9 port for Profibus DP V1 connections. Communication services include: checking the slave configuration (upon power-up) as a Class 1 Master, managing monitoring requests (Global Control and Get Master Diag) as a Class 2 Master, and no Master/Master dialog as a Class 2 Master, among others. This product can be used to connect Modicon Quantum, Premium, M580, and M340 programmable logic controllers (PLCs) to Profibus DP V1 via the I/O scanner function. The kit includes a CD with the communication DTM and a CD with the master DTM for configuration within UNITY.
