Best selling Relays from APC
This page always stays fresh and updates automatically.
1. APC Contactor 12A 24VDC 3p LP1K1210BD3
The APC LP1K1210BD3 is a powerful and reliable power contactor designed for various industrial applications. With a rated operational power of 5.5 kW at 400 V AC-3 and a maximum operating current of 12 A, this device provides effective control of electrical loads. The coil operates with an input voltage of 24 V DC, allowing for broad compatibility with modern control systems. The contactor is equipped with three normally open contacts and an additional auxiliary contact, enhancing flexibility in application. Thanks to the integrated bidirectional amplitude-limiting diode, high operational safety is ensured. The LP1K1210BD3 is ideal for machine control in industry, infrastructure, and buildings, and meets relevant certification standards, including UL and CSA.
- 3-pole with 3 normally open contacts and 1 auxiliary contact
- Input voltage of 24 V DC
- Integrated bidirectional amplitude-limiting diode
- Certifications according to UL and CSA.

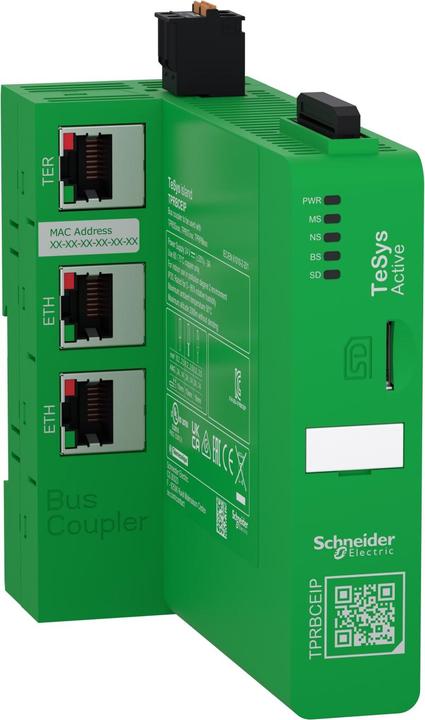

2. APC TeSys island TPRBCEIP Bus coupler 24 V/DC (TPRBCEIP)
The TeSys island TPRBCEIP bus coupler is an advanced auxiliary relay designed for load management systems up to 80A. With support for Ethernet IP and Modbus TCP, this bus coupler enables efficient and flexible integration into modern automation systems. The control voltage of 24V DC ensures reliable performance, while the push-in terminals provide easy and secure wiring. The bus coupler is suitable for DIN rail mounting and features a status LED that offers quick visual feedback on the operating condition. The intelligent head station allows for the management of load outputs and includes an SD card slot as well as a configuration interface to facilitate customization and monitoring. With the capability to manage digital twins, the TeSys island TPRBCEIP is an optimal solution for Industry 4.0 applications and IIoT protocols.
- Support for Ethernet IP and Modbus TCP for seamless integration into automation systems
- Intelligent head station with SD card slot for enhanced functionality
- Easy wiring through push-in terminals
- Status LED for quick visual feedback on the operating condition
- Optimized for Industry 4.0 applications with support for digital twins.
3. APC Installation contactor LC1SKGC200P7
The LC1SKGC200P7 installation contactor from APC is a compact and powerful contactor designed for controlling electrical machines in industrial, infrastructural, and building technology applications. With a rated voltage of 230 V AC and a maximum operating current of 20 A, this device is ideal for simple machine control. The contactor is equipped with two normally open contacts and meets the requirements of categories AC-1 and AC-3. Certifications according to cULus and compliance with international standards such as VDE 0660, IEC 60947, NF C 63-110, and BS 5424 ensure high quality and safety. With a compact design and a weight of only 0.132 kg, the LC1SKGC200P7 is easy to install and operate, making it a practical choice for various applications.
- Two normally open contacts for versatile applications
- Suitable for simple machine control
- Certified according to cULus and international standards
- Compact design for easy installation.

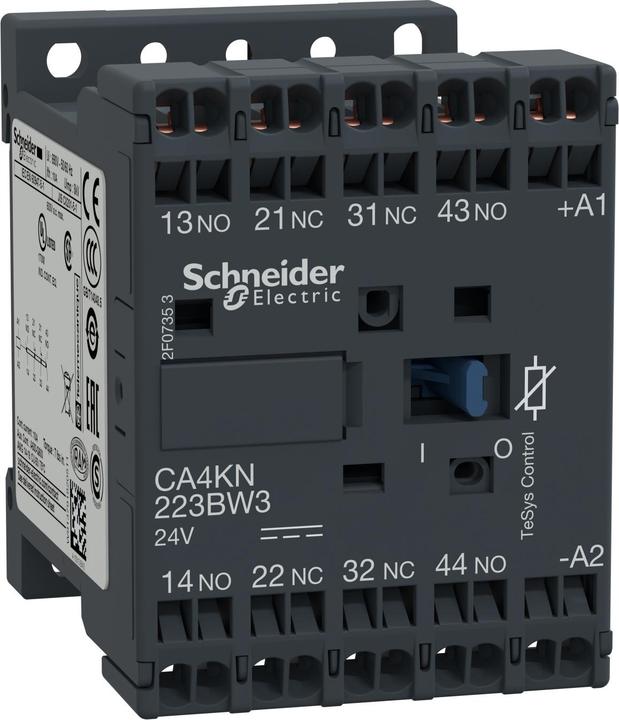

4. APC GmbH Contactor relay 2S 2Ö 24VDC CA4KN223-BW3
The TeSys K small contactor 0.06 - 5.5 kW offers you a complete range of small contactors with an optimal balance of power and compactness, as well as seamless integration into your applications.
5. APC Safety relay 3S 1T 24V SK XPSUAF13AP
The safety relay 3S 1T 24V SK XPSUAF13AP from APC is a highly advanced device designed for various safety applications. With an operating voltage of 24V DC/AC and three safety contacts, it provides a reliable solution for emergency stop and safety functions. The flexibility of the relay is enhanced by the ability to select different safety functions via front-mounted rotary switches. This allows for easy customization to specific requirements and reduces the need for multiple devices. The integrated diagnostic function enables the detection of states and faults, transmitting this information to a programmable logic controller (PLC), which minimizes downtime in the event of a fault. The relay can be connected to a variety of input devices, including mechanical contacts, electronic sensors, and light curtains, highlighting its versatility in industrial applications.
- Two channels for redundant safety functions
- Selectable safety functions via rotary switches
- Integrated diagnostic function for fault transmission to PLC
- Compatible with various input devices such as emergency stop buttons and sensors
- Automatic, manual, and monitored start options available.
6. APC Plug-in interface relay Zelio Relay, 2 changeover contacts, DC, 24V, 5A, screw terminal
The Zelio Relay interface relay from APC is a versatile and reliable installation relay designed for various applications in automation technology. It features two changeover contacts, each providing a contact load capacity of 5 A. With a coil control voltage of 24 V DC, this relay is ideal for use in control and switching applications. The pre-assembled design allows for easy installation, as all components are already assembled. The relay is equipped with a screw terminal connection that ensures a secure and stable connection. Additionally, the device offers a mechanical position indicator as well as an LED display that clearly signals the operating status. A test button and a test lever allow for easy checking of the contacts, facilitating maintenance and troubleshooting. The relay is suitable for mounting on a DIN rail or a mounting plate and is secured by a plastic retaining bracket that allows for easy removal.
- Pre-assembled interface relay for immediate use
- Mechanical position indicator and LED display for clear status indication
- Test button and test lever for easy contact testing
- Screw terminal connection for secure connection
- Ready to use, mounted with protection module (diode).
Relays
EUR20,90
APC Plug-in interface relay Zelio Relay, 2 changeover contacts, DC, 24V, 5A, screw terminal
7. APC Schneider Electric LC1D80008P7
The Schneider Electric LC1D80008P7 power contactor is a high-performance switching relay designed for various industrial applications. With a rated voltage of 230 V at AC 50 Hz and 60 Hz, this device provides reliable control of electrical loads. It features four poles, including two normally closed and two normally open contacts, allowing for flexible integration into existing systems. The robust construction and the use of Everlink and spring terminals ensure a secure and durable electrical connection. The device is suitable for safety applications, as it offers mechanically linked contacts and mirror contacts. With a rated operational current of 125 A and an operating voltage of up to 440 V, the LC1D80008P7 is ideal for demanding applications in automation technology.
- Suitable for safety applications due to mechanically linked contacts
- Quick and easy setup
- Certifications according to international standards such as DNV, CSA, and UL
- Safe and durable electrical connection with Everlink and spring terminals
- Not suitable for rail mounting.
8. APC Contactor 2S, 2Ö LC1K09008B7TQ Rated control supply voltage Us at AC 50
The LC1K09008B7TQ contactor from APC is a versatile and reliable device designed for various industrial applications. With a rated power of 4 kW and a switching voltage of up to 440 V AC, this contactor is ideal for controlling electrical machines and systems. The contact configuration includes two normally open and two normally closed contacts, allowing for flexible control. The coil operates at a voltage of 24 V AC and is designed for frequencies of 50/60 Hz. The contactor is suitable for DIN rail mounting and offers an IP2X protection rating, safeguarding it against dust and accidental contact. With a compact design and a weight of only 0.18 kg, the LC1K09008B7TQ is easy to install and integrate. It meets various international standards and certifications, underscoring its reliability and safety in application.
- Rated power of 4 kW and switching current of 20 A at 440 V AC
- Contact configuration: 2 normally open and 2 normally closed contacts
- Coil voltage of 24 V AC, suitable for 50/60 Hz
- Mounting type: DIN rail mounting
- Protection rating IP2X for additional protection against dust and contact.
9. APC Schneider Electric TeSys SK control relay Power relay Black
Schneider Electric Auxiliary Relay CA2SK11-P7
Manufacturer: Schneider Electric
Description: Auxiliary relay 1S1Ö 27mm 230V 50/60Hz
Type: CA2SK11-P7
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for actuation: AC
Rated operational current: 10 A
Rated operational current Ie, 400 V: 10 A
Mounting type: DIN rail/screw
With LED indicator: no
Suitable for manual operation: no
Interface: no
Number of auxiliary contacts as normally open: 1
Number of auxiliary contacts as normally closed: 1
Operating voltage at AC 50 Hz: 690 V
Operating voltage at AC 60 Hz: 690 V
Voltage type of operating voltage: AC
Rated switching current: 0.005 A
Connection type for auxiliary circuit: screw connection
Width: 45 mm
Height: 58 mm
Depth: 57 mm
Additional details: TeSys Mini auxiliary relays. Auxiliary relay, operated by alternating current 230 V 50/60Hz. Connection via screw terminals, auxiliary switch 1S + 1Ö, MTZ 12. Device width 27 mm, snap-on mounting. Two integrated auxiliary contacts, expandable by up to four auxiliary contacts.
10. APC LC1K1201P7 Auxiliary contact
The LC1K1201P7 auxiliary contact from APC is a powerful contactor designed for a variety of industrial applications. With its robust construction and versatile applications, this device is ideal for machine control in industry, infrastructure, and buildings. The contactor features three normally open contacts and one normally closed contact, allowing for flexible control. The rated operational power is 5.5 kW at a voltage of 400 V in AC-3 operation, while the rated operational current is 12 A. The coil operates with an input voltage of 230 V AC. With compact dimensions and a weight of only 0.18 kg, the LC1K1201P7 is easy to install and integrate. Additionally, it meets the relevant certifications from CSA and UL, highlighting its reliability and safety.
- Three normally open contacts and one normally closed contact for flexible control
- Rated operational power of 5.5 kW at 400 V AC-3
- Input voltage of 230 V AC for easy integration
- Certifications from CSA and UL for enhanced safety.
