Best selling Relays from Schneider
Here you’ll find the best Relays from Schneider. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Schneider options. This page always stays fresh and updates automatically.
1. Schneider C163TM160
Schneider Electric thermomagnetic release device C163TM160
Manufacturer: Schneider Electric
Designation: Thermomagnetic release device TM160D 160A 3P3D
Type: C163TM160
Overload release current setting: 112-160 A
Initial value of the undelayed short-circuit release setting range: 1250 A
Final value of the undelayed short-circuit release setting range: 1250 A
Rated continuous current Iu: 160 A
Type of voltage for operation: AC
Rated control supply voltage Us at AC 50 Hz: 690 V
Rated control supply voltage Us at AC 60 Hz: 690 V
Number of poles: 3
Short-circuit release function: Undelayed
With earth fault protection function: No
Type of motor protection: Thermal/magnetic release
This thermomagnetic release device TM160D is 3P 3D, used in the ComPacT NSX 160 circuit breakers. This thermomagnetic release device with a rated current of 160 A is the optimal choice for all distribution applications. It features an adjustable thermal overload protection and a fixed magnetic protection against short circuits. This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX main switch.
2. Schneider Easy TeSys auxiliary contact 1NO 1NC for contactors and relay LAEN11
Additional auxiliary contact block for Easy TeSys Control LC1E contactors. It features 1NO+1NC instantaneous contacts with a rated current of up to 10 A and 690 V AC, connected via screw terminals. The block allows for easy front mounting by clipping on, ensuring high reliability and durability. It is available worldwide and certified according to several standards (IEC, CCC, EAC) and is Green Premium compliant (RoHS/REACH).
3. Schneider Easy TeSys overload relay 0.63-1A LRE05
The LRE relay is a thermal differential overload relay designed for use with fuses or magnetic circuit breakers GV2 L and GV3 L. Its thermal setting range is 0.63-1A at 50/60Hz, and the tripping class is 10A according to IEC 60947-4-1. It can be directly mounted on Easy TeSys control contactors with screw terminal connections. It protects unbalanced loads and motors with 0.25kW at 400VAC. It offers manual or automatic reset, a tripping auxiliary contact, and a flag indicator. It is available worldwide, certified multiple times (IEC, UL, CSA, CCC, EAC, Marine), and compliant with Green Premium (RoHS/REACH).
4. Schneider Easy TeSys contactor 3P 38A 1NO 220V AC 50Hz LC1E3810M5
Easy TeSys Control Relay, 3-pole for motor applications up to 38A, 18.5kW, 440V. It features a 220V, 50Hz AC coil, 1NO built-in auxiliary contacts, as well as power and control connections via screw terminals. With a width of 56mm, it is suitable for standard operating rates of up to 1800 cycles per hour. It offers standard reliability and durability with an electrical lifespan of 0.9 million cycles AC-3 and a mechanical lifespan of 8 million cycles. It can be used at operating temperatures from -5°C to 55°C and can be mounted on DIN rails without derating up to an altitude of 3000m. Multi-standard certified (IEC, CCC, EAC) and compliant with Green Premium (RoHS/REACH).
5. Schneider C25N3TM250
The Schneider Electric Compact Circuit Breaker C25N3TM250 is a powerful and reliable switch designed for a variety of applications. With a rated current of 250 A and a rated voltage of up to 690 V, this device offers high performance and safety. The switch is equipped with a thermal-magnetic release device that allows for precise control under overload and short-circuit conditions. The device is designed for fixed installation and is not suitable for DIN rail mounting. With a high breaking capacity of 50 kA at 400 V, the C25N3TM250 is ideal for demanding applications where reliability and safety are of utmost importance. Its compact design optimizes space requirements, while the robust construction ensures a long lifespan. The switch features a toggle lever as the operating element, providing ease of use.
- High rated performance of 250 A for demanding applications
- Breaking capacity of 50 kA at 400 V for maximum safety
- Thermal-magnetic release device for precise control
- Compact design to optimize space requirements.

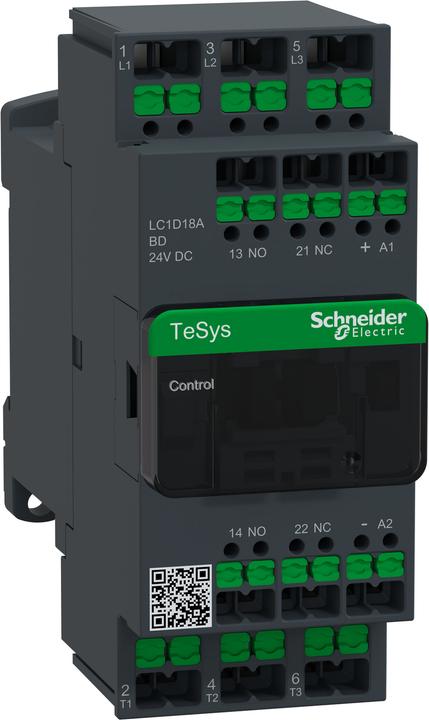

6. Schneider Leistungsschütz LC1D LC1D18ABD 3p +1S+1Ö 7,5 kW 18 A 400VAC3 Spule
The LC1D LC1D18ABD contactor from Schneider is a highly advanced relay designed for various industrial applications. With a rated operational power of 7.5 kW at 400 V and a rated current of 18 A, this device is ideal for use in AC-3, AC-1, and AC-4 categories. The contactor is equipped with three main contacts and additional auxiliary contacts, including a normally closed and a normally open contact, allowing for flexible control. The integrated bidirectional amplitude-limiting diode ensures improved performance and safety. Thanks to the SnapIN terminal connection system, a quick and maintenance-free electrical connection is guaranteed. The LC1D is also suitable for safety applications, as it offers mechanically linked contacts and mirror contacts that ensure reliable functionality.
- Mechanically linked contacts for increased safety
- Integrated bidirectional amplitude-limiting diode
- SnapIN terminals for easy installation
- Suitable for various AC categories (AC-1, AC-3, AC-4)
- Maintenance-free operation.

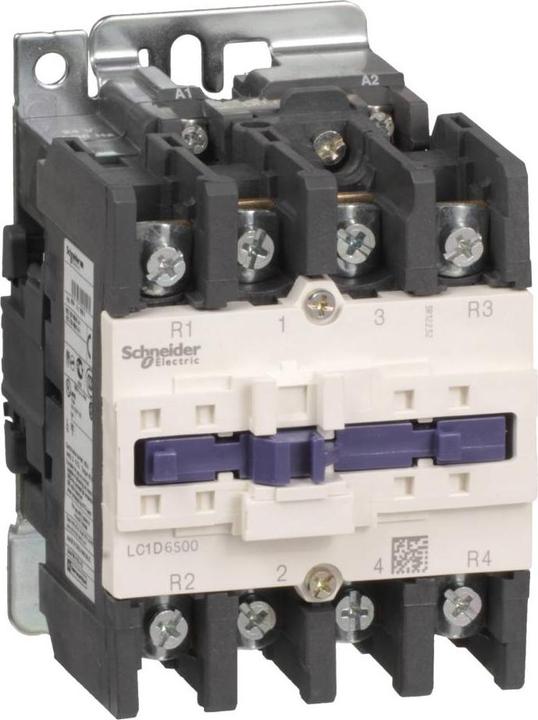

7. Schneider Elektros energijos 65A AC-1 AC (LC1D65008P7)
The TeSys LC1D contactor from Schneider is a reliable and powerful device designed for various industrial applications. With a rated current of 65 A and a coil voltage of 230 V AC, this four-pole contactor provides a secure and long-lasting electrical connection. The design includes two normally open and two normally closed contacts that are mechanically linked, enhancing safety in critical applications. The use of Everlink and spring terminals allows for quick and easy installation, while various certifications, including DNV, GL, and UL, ensure compliance with international standards. The LC1D65008P7 is ideal for applications that require high reliability and safety.
- Mechanically linked contacts for increased safety
- Easy installation with Everlink and spring terminals
- Certified to international standards such as DNV and UL
- Suitable for safety applications
- Robust construction with durable materials.

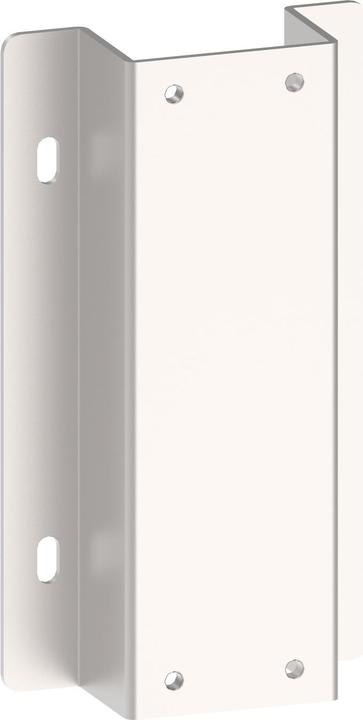

8. Schneider LA9GRFB1
Schneider Electric retrofit base - LA9GRFB1
Manufacturer: Schneider Electric
Designation: Retrofit base for TeSys Giga contactor
Type: LA9GRFB1
Type of accessory/spare part: Connection technology
Accessories: Yes
Spare part: No
The Schneider Electric retrofit base - LA9GRFB1 is designed for TeSys control Giga power contactors in size 115-225. It serves as an adapter plate for mounting in existing installations with TeSys F contactors. This retrofit kit is ideal for renewing electrical switchgear or replacing TeSys F contactors. The adapter aligns the connections to the same level and is Green Premium compliant (RoHS/REACH).

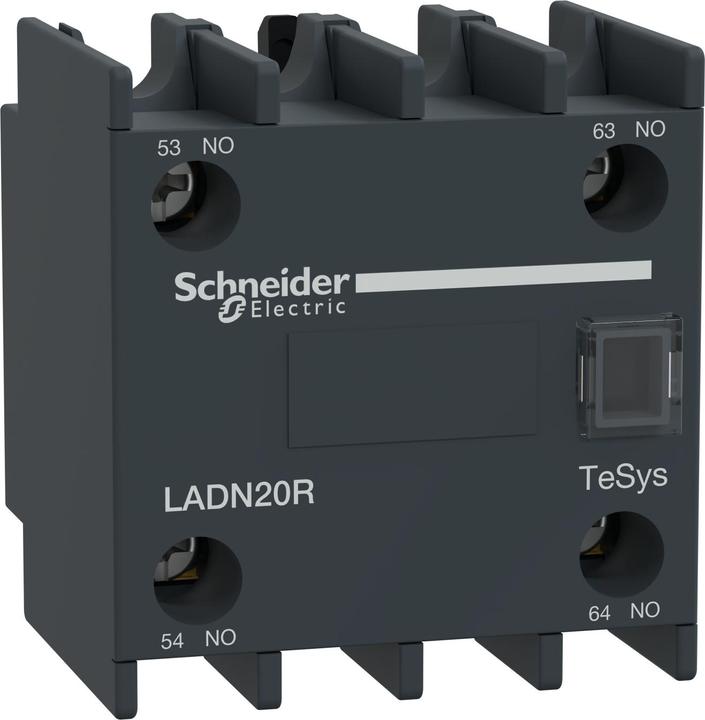

9. Schneider Auxiliary contact block, TeSys Deca, 2NO, screw terminals LADN20R
TeSys Deca immediate auxiliary contact block for contactors LC1D, LC1F, and control relays CAD. It offers 2NO contacts with a rated power of up to 10A/690V AC, connected via screw terminals. Clip-on front mounting ensures high reliability and durability. Multi-standard certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
10. Schneider Elektros energijos 6A 3P DC 0Z (LP1K0601BD3)
The TeSys LP1K contactor from Schneider is a highly advanced electrical control device designed for a variety of applications in industry, infrastructure, and building sectors. With a compact design and a weight of only 0.225 kg, this 3-pole device provides reliable control of electrical machines. It features three normally open contacts and an additional normally closed contact, allowing for flexible integration into various control systems. The coil operates with an input voltage of 24 V DC, while the rated operational power at AC-3 at 400 V is 2.2 kW. The device is equipped with an integrated bidirectional amplitude-limiting diode that optimizes operation and extends the contactor's lifespan. Certifications according to UL and CSA ensure compliance with international safety standards.
- 3-pole design with 3 normally open contacts and 1 normally closed contact
- Input voltage of 24 V DC for versatile applications
- Integrated bidirectional amplitude-limiting diode for power optimization
- Certified according to UL and CSA for high safety standards
- Suitable for simple machine control in various industrial applications.
