Delock Mini Desktop Patchpanel 6 Port Cat.6A grey
Best selling Server accessories from Delock
On this page you'll find a ranking of the best Delock products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Delock Mini Desktop Patchpanel 6 Port Cat.6A grey
Description
This patch panel from Delock can be mounted on a wall or under a table, for example. Up to 6 network cables can be installed on the LSA strips using a termination tool.
Specifications
- Connections:
6 x RJ45 socket
6 x LSA
- Cat.6A specification
- Wall mountable
- Shielded (STP)
- Wiring according to TIA-568A/B
- Suitable for solid and stranded conductors (24 - 22 AWG)
- Housing material: ABS
- Color: gray
- Dimensions (LxWxH): approx. 164.0 x 148.8 x 10.5 mm
Package contents
- Patch panel
- Grounding cable
- 2 x screws
- 2 x dowels
- 6 x cable ties.
2. Delock 19? D-type patch panel 24 port 2 U black
Description
This patch panel from Delock can be used for installation in a 19-inch equipment rack. With standardized dimensions, it is suitable for the easy mounting of 24 D-type modules.
Specifications
- 24 D-type ports with 24 x 19 mm
- For mounting in 19-inch racks, 2 HE
- Material: Metal
- Color: Black
- Dimensions (LxWxH): approx. 483.0 x 88.0 x 12.5 mm
Package contents
- D-type patch panel
- 4 screws
- 4 cage nuts.

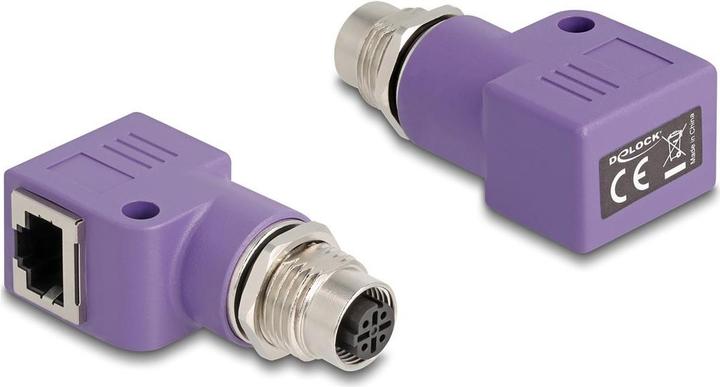

3. Delock M12 adapter D-coded 4 pin socket to RJ45 socket Cat
This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, such as for machine control or automation.
With mounting hole
The adapter can be attached to a plate with a corresponding cut-out.
Technical data:
- Connectors: 1 x M12 socket 4 pin D-coded; 1 x RJ45 socket 90° angled
- Cat.5e specification
- Installation dimensions: 16.1 x 13.6 mm
- With mounting hole
- Mounting hole diameter: approx. 2.7 mm
- Housing material: PVC / metal
- Shielded (STP)
- M16 external thread
- Gold-plated contacts
- Operating voltage: max. 250 V
- Current: M12: max. 4 A; RJ45: max. 1.5 A
- Operating temperature: -40 °C ~ 85 °C
- Protection class: IP67 (M12), IP20 (RJ45)
- Colour: violet
- Dimensions (LxWxH): approx. 55.9 x 20.0 x 19.0 mm
Package contents:
- M12 adapter
Packaging:
- Resealable bag.

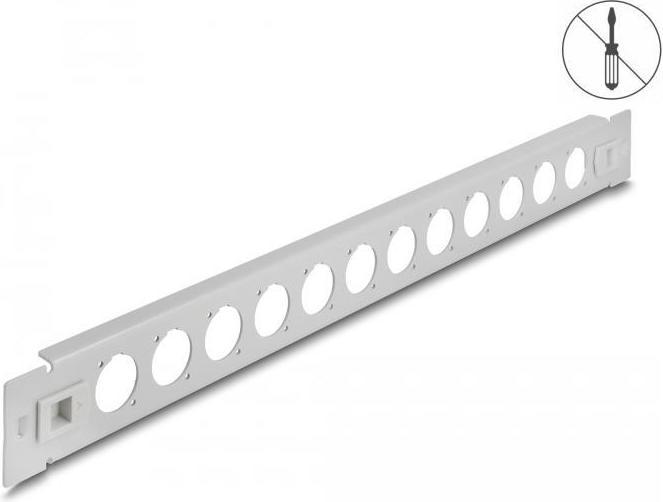

4. Delock 19? D-Type Patch Panel 12 Port tool-free grey
This patch panel from Delock can be used for installation in a 19-inch rack. With its standardized dimensions, it is suitable for the easy mounting of 12 D-type modules.
Tool-free installation
The special feature of this patch panel is that no tools are required for installation in a network cabinet. The integrated mounting clips can simply be pushed outward, securing the panel in place.
Specifications
- 12 D-type ports with 24 x 19 mm
- For mounting in 19-inch racks, 1 U
- Material: Metal
- Color: Gray
- Dimensions (LxWxH): approx. 482.0 x 44.4 x 12.5 mm
Package contents
- D-type patch panel.
5. Delock 48,30cm (19") Patchpanel 16 Port Cat.6A 1 U gray
This patch panel from Delock can be used for installation in a 19" network cabinet. Up to 16 network cables can be connected to the LSA strips using a punch-down tool.
Specifications:
- Connections:
- 16 x RJ45 socket
- 16 x LSA
- For mounting in a 19" network cabinet, 1U
- Complies with Cat.6A requirements according to ANSI/TIA/EIA 568-C.2
- Wiring according to TIA-568A/B
- Suitable for solid and stranded conductors (26 - 22 AWG)
- Material: Metal
- Color: Gray
- Dimensions (LxWxH): approx. 482.6 x 100 x 44.5 mm
Package contents:
- 19" patch panel
- 2 x cable ties 4.7 x 200 mm
- 16 x cable ties 2.4 x 100 mm
- 4 x screws
- Grounding cable.

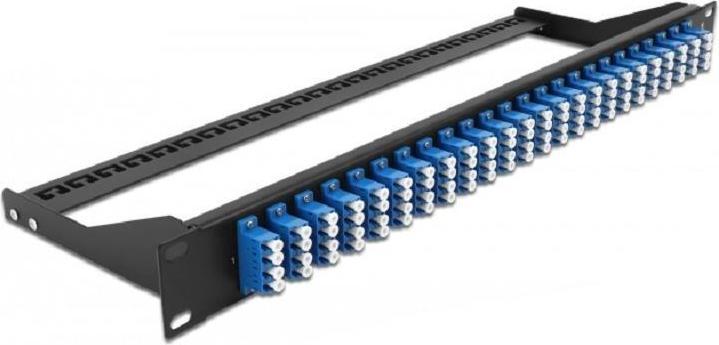

6. Delock 19? FO Patch Panel 24 Port LC Quad blue
This patch panel from Delock can be installed in a 19-inch rack. With accessible ports on both the front and back, the panel provides a convenient connection option for fiber optic patch cables.
Specifications:
- Ports: 24 x LC Quad socket
- Color: blue
- For 96 OS2 single-mode fibers
- Zirconium ceramic ferrule with protective cap
- For mounting in 19-inch racks, 1U
- Removable strain relief bar
- Housing color: black
- Dimensions (LxWxH): approx. 482.6 x 150.0 x 43.6 mm
Package contents:
- 19-inch patch panel.
7. Delock 10? FO Patchpanel 12 Port for SC Simplex / LC Duplex 1 U black
This patch panel from Delock can be installed in a 10" equipment rack. It offers 12 mounting slots for the individual installation of SC Simplex or LC Duplex connectors.
For installation in a 10" network rack, 1U
Rectangular cutout 13.2 x 9.6 mm
Hole spacing: approx. 16.2 mm
Housing color: black
Dimensions (LxWxH): approx. 254 x 44 x 10 mm
Package contents
10" fiber optic patch panel
Packaging
Box.

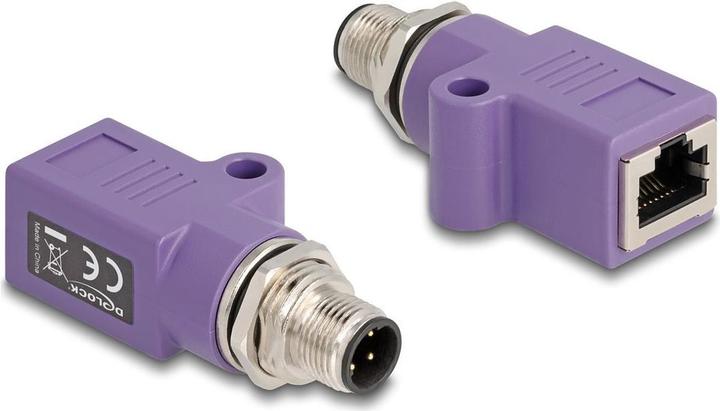

8. Delock M12 adapter D-coded 4 pin plug to RJ45 socket Ca
This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, such as for machine control or automation.
With mounting hole
The adapter can be attached to a plate with a corresponding recess.
Technical data
- Connections:
1 x M12 plug 4 pin D-coded
1 x RJ45 socket
- Cat. 5e specification
- Installation dimensions: 16.1 x 13.6 mm
- Mounting hole diameter: approximately 2.7 mm
- Housing material: PVC / metal
- Shielded (STP)
- M16 external thread
- Gold-plated contacts
- Operating voltage: maximum 250 V
- Current:
M12: maximum 4 A
RJ45: maximum 1.5 A
- Operating temperature: -40 °C to 85 °C
- Protection class: IP67 (M12), IP20 (RJ45)
- Colour: violet
- Dimensions (LxWxH): approximately 59.6 x 20.0 x 19.0 mm
Package contents
- M12 adapter
Packaging
- Resealable bag
General
- Specification: Cat. 5e
Interface
- Connection 1: 1 x M12 plug 4 pin D-coded
- Connection 2: 1 x RJ45 socket
Technical properties
- Operating temperature: -40 °C to 85 °C
Physical properties
- Material: PVC / metal
- Shielding: STP
- Length: 59.6 mm
- Width: 20.0 mm
- Height: 19.0 mm
- Colour: violet.

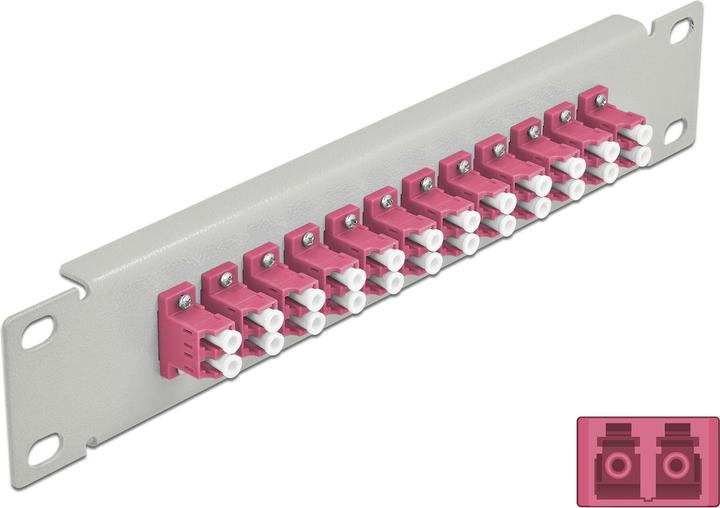

9. Delock 10? FO Patchpanel 12 Port LC Duplex violet 1 U gray
This patch panel from Delock is equipped with twelve LC duplex couplings and is suitable for installation in a 10-inch network cabinet. The LC duplex couplings allow for easy connection of fiber optic plugs.
Specifications:
- Connections: 12 x LC duplex socket
- For multimode fiber OM4
- Ceramic sleeve
- With dust protection cover
- Color: violet
- For mounting in a 10-inch network cabinet, 1U
- 12 ports with LC duplex couplings
- Housing material: metal
- Housing color: gray
- Dimensions (LxWxH): approx. 254 x 44 x 10 mm
Package contents:
- 10-inch fiber optic patch panel.
10. Delock Easy 45 module D-Sub 9 pin male to 10 pin terminal block 22.5 x 45 mm
This Easy 45 module from Delock provides a D-Sub connector. Thanks to the simple snap-in mechanism, the module sits securely in place and can be easily removed when needed.
Easy 45 connects. Easy 45 is a versatile, modular system that allows you to assemble components such as sockets, HDMI, or USB connections according to your needs. The Easy 45 modules are standardized and can be installed in various module carriers or desktop channels. Easy 45 serves as the interface between electrical, network, and system installations and numerous peripheral devices, such as TVs, monitors, printers, laptops, and many more.
Specifications:
- Connections:
external: 1 x D-Sub 9 Pin connector
internal: 1 x 10 Pin terminal block screw terminal
- Material: PC plastic
- Suitable for Delock Easy 45 module carriers
- Compatible with 45 mm desktop channels with a minimum installation depth of 45 mm
- Module size: 22.5 x 45 mm
- Dimensions (LxWxH): approx. 22.5 x 45.0 x 32.0 mm
- Color: white
System requirements:
- An available module space in Delock Easy 45
Package contents:
- Easy 45 module.
