Best Siemens products in the UPS category
On this page you'll find a ranking of the best Siemens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

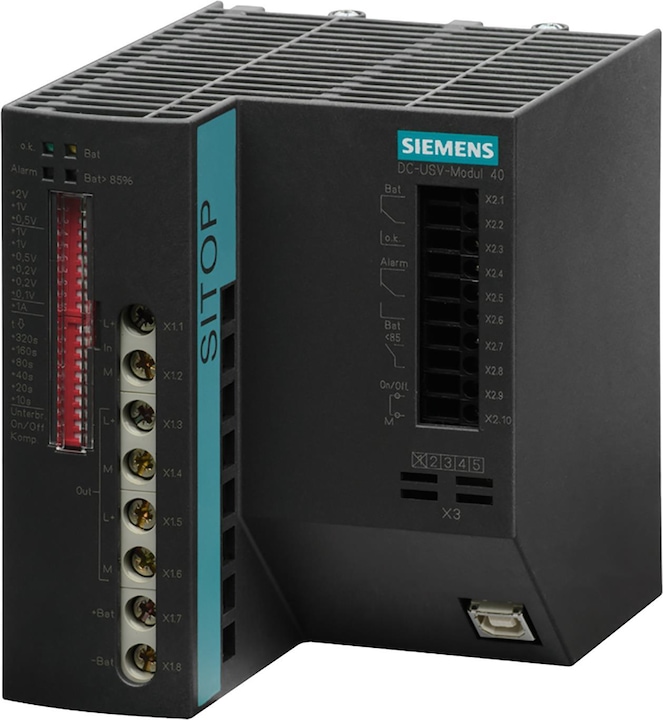

1. Siemens SITOP industrial UPS system
By combining the DC UPS module with at least one battery module and a SITOP power supply, longer power outages can be bridged completely without interruption.

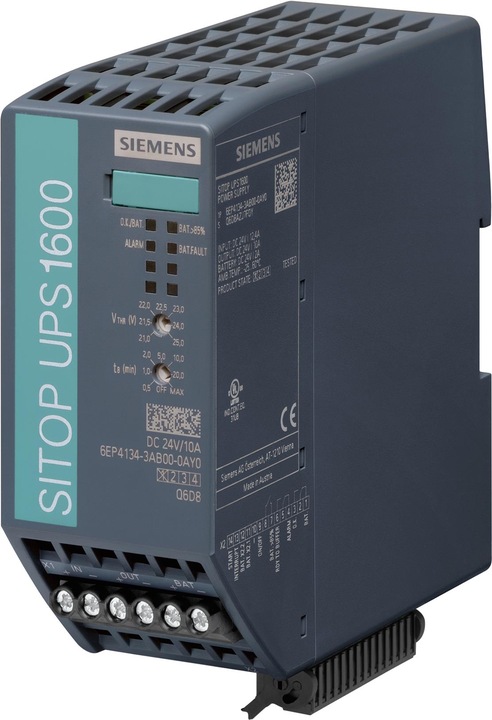

2. Siemens Industrial UPS system (DIN R
By combining a SITOP UPS1600 DC UPS module with at least one UPS1100 battery module and a SITOP power supply, longer power outages can be bridged without interruption. The intelligent battery management system automatically detects the UPS1100 energy storage, ensures optimal temperature-controlled charging, and provides continuous monitoring. The compact DC UPS modules are overload-capable, allowing them to deliver the inrush current required by industrial PCs. For standalone operation, they enable startup from the battery.
The DC UPS communicates openly via USB or Ethernet/PROFINET. With the two Ethernet/PROFINET ports, it can be easily integrated into the PC or PLC environment. Full integration into TIA offers convenient engineering in the TIA Portal and is supported by pre-made function blocks for S7 user programs and WinCC faceplates for quick visualization.
With the SITOP UPS Manager, simple monitoring and configuration in PC systems is also possible, such as shutting down multiple PCs based on a master-slave principle. The integrated web server also allows for remote monitoring of the DC UPS.

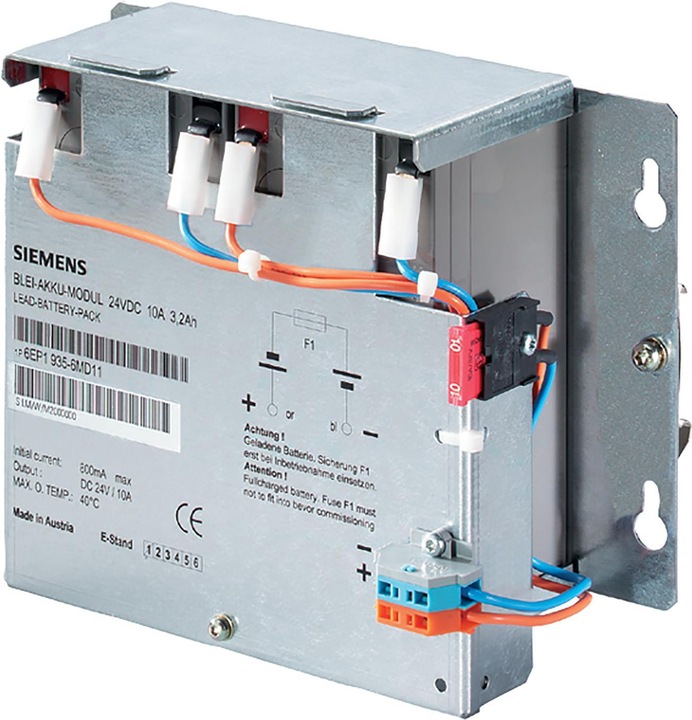

3. Siemens Energy storage SITOP accumulat
The SITOP akumulat energy storage unit from Siemens is a reliable battery module specifically designed for the SITOP DC UPS system. With a voltage of 24 volts and a capacity of 3.2 ampere-hours, this module provides an effective solution for buffering and ensuring an uninterrupted power supply. The product comes with a wall mount for easy installation. The SITOP akumulat is suitable for various applications where a stable and continuous power supply is required. Its compact design and thoughtful construction make it a practical choice for industrial and commercial uses. Additionally, the module meets the requirements for maintenance-free operation, further simplifying its use. The high quality and reliability of the product are reflected in the specifications, which guarantee a runtime of up to 40 seconds at full load.
- Runtime at full load: 40 seconds
- Wall mount included for easy installation
- Maintenance-free operation for reduced maintenance costs
- Suitable for SITOP DC UPS systems
- Manufactured in accordance with SBTi standards.

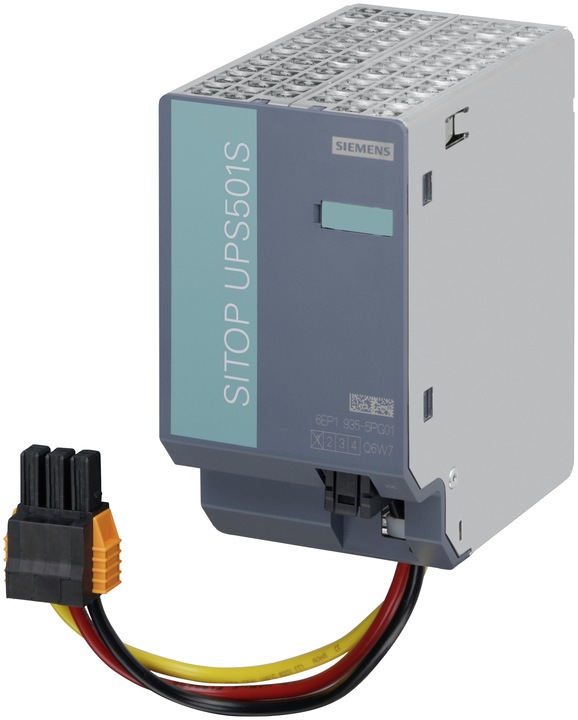

4. Siemens Extension module
Siemens Digital Industries DC UPS Expansion Module 6EP1935-5PG01
Manufacturer: Siemens Digital Industries
Description: DC UPS Expansion Module 24VDC, 5kWs
Type: 6EP1935-5PG01
Input Voltage: 24 V
Output Apparent Power: 360 VA
SNMP: no
Voltage Type: DC
Height: 125 mm
Width: 70 mm
Depth: 125 mm
Backup Time at Full Load: 0.04 min
Weight: 0.7 kg
Network Management Capability: no
UPS Technology: Offline
Design: Standalone Device
Siemens Digital Industries DC UPS Expansion Module 6EP1935-5PG01: additional details
SITOP UPS501S Expansion Module 5 kWs for UPS500S (2.5 kWs, 5 kWs)
Protection Class: IP20
*EX approval no longer available*
SITOP UPS501S is the optimal addition for the UPS500S to further increase the backup time. A maximum of three expansion modules based on capacitors can be connected to the base unit. Mounting is done on standard profile rails.
EAN: 4025515152408.

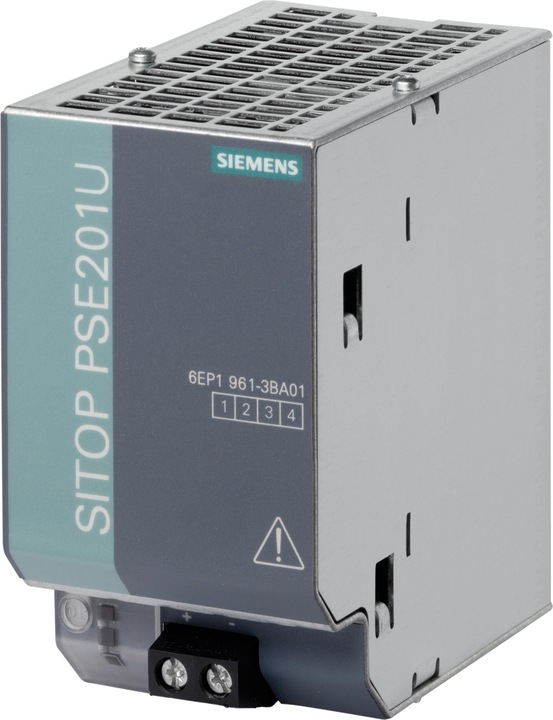

5. Siemens Buffer module SITOP modular 24V
Accessory Type: Buffer Module
For Use With: SITOP
SITOP accessory. Mounting bracket. By combining a SITOP power supply with a 90° mounting bracket, minimal surface area is required on the back wall of the control cabinet. The width of the power supply becomes the depth, and the depth becomes the width. The mounting bracket is suitable for cabinets with a depth of at least 320 mm. Mounting adapter for standard mounting rail. The single-phase power supplies 6ES7305-1BA80-0AA0 and 6ES7307-1EA80-0AA0 are special mechanical versions for SIMATIC S7-300 and can be mounted on S7 rails. A mounting adapter (6ES7390-6BA00-0AA0) for installation on the standard mounting rail EN 60715 35 x 15 is available separately as an accessory. The power supplies 6ES7307-1BA01-0AA0, 6ES7307-1EA01-0AA0, and 6ES7307-1KA02-0AA0 are variants for SIMATIC S7-300 and can also be mounted on S7 rails. A mounting adapter (6EP1971-1BA00) for installation on DIN rail EN 60715 35 x 15/7.5 is available separately as an accessory. Connection plugs for devices with protection classes IP65 and IP67. For the maintenance-free DC UPS module SITOP UPS500P (6EP1933-2NC01, 6EP1933-2NC11) with protection class IP65. A connector set (6EP1975-2ES00) for input and output, along with a pre-assembled USB cable (2 m long), is available as an accessory. Device labels. Blank labeling plates for devices (20 x 7 mm, pastel turquoise) with 3RT1 900-1SB20 can be used to label the power supplies. The packaging unit includes 340 labels on frames, with 20 labels per frame. Information on usability can be found under "Accessories in the technical data of the respective power supplies.".
UPS
−5%
EUR262,23 was EUR276,14
Siemens Buffer module SITOP modular 24V
960 VA, Online double converter UPS

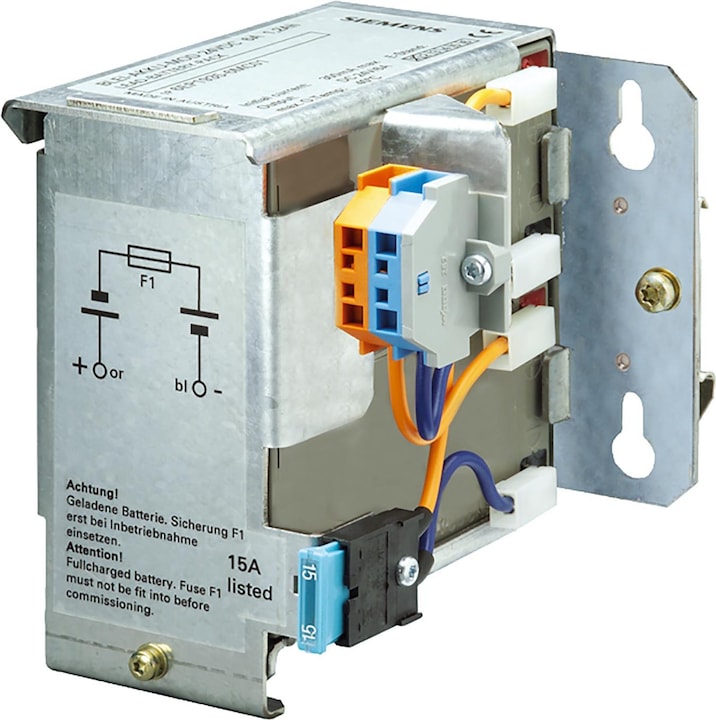

6. Siemens Energy storage
The Siemens energy storage system, also known as the SITOP battery module, is a reliable solution for ensuring power supply in critical applications. With a capacity of 1.2 Ah and an output voltage of 24 V, this battery module provides a stable energy source for various devices and systems. It is specifically designed for use in SITOP DC UPS systems and ensures uninterrupted power supply. The energy storage unit is maintenance-free and features a compact design that allows for easy integration into existing systems. The operating time at full load is 60 seconds, which is sufficient for many applications to ensure safe operation. The Siemens energy storage system is not only functional but also environmentally conscious, as the manufacturer is committed to sustainable practices.
- Maintenance-free design for easy handling
- Suitable for SITOP DC UPS systems
- Operating temperature range of -5 to 40 °C
- Manufacturer's commitment to sustainability and environmental awareness.
7. Siemens Industrial UPS system
By combining the DC UPS module with at least one battery module and a SITOP power supply, longer power outages can be bridged completely without interruption.

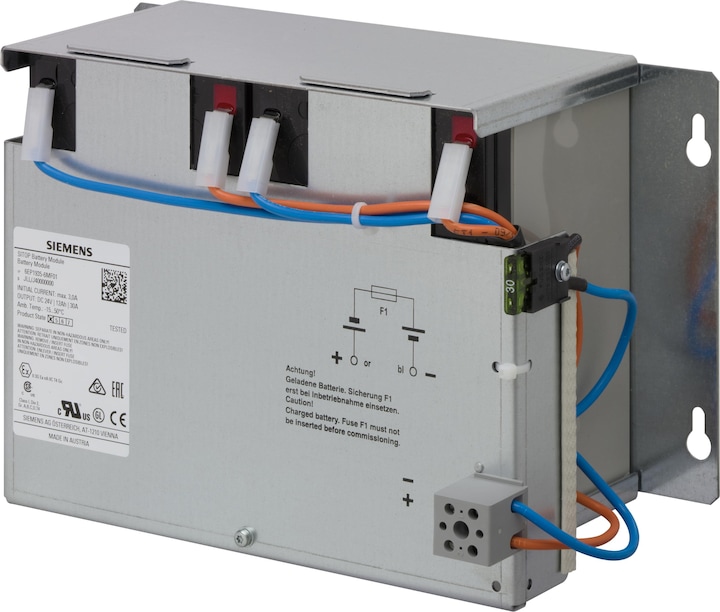

8. Siemens Sitop Battery 12ah
Capacity: 12Ah
Rated voltage: 24V
Dimensions: 118 x 253 x 121mm
Operating temperature range: +5 to +40°C
Battery modules DC UPS are maintenance-free accumulator modules with 1.2-12 Ah (lead-gel accumulator) suitable for ambient temperatures from 0 to +40°C. A high-temperature battery module with 2.5 Ah (pure lead-acid battery) is available for ambient temperatures from -40°C to +60°C. The accumulator modules are pre-wired with a battery holder and connectors. For longer buffer times, the accumulator modules can be connected in parallel. They can be mounted on standard mounting rails or directly on the wall.
Features and benefits include protection class III and the ability to be mounted on DIN rail or directly on a wall. The modules come pre-wired with a battery holder and terminals.

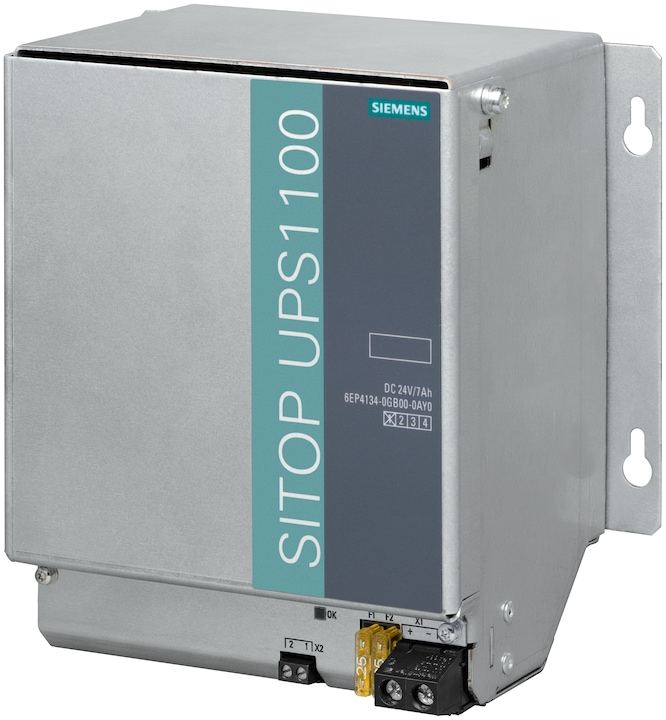

9. Siemens SITOP UPS1100 energy storage unit
Maintenance-free battery module with 7 Ah (wall mounting) for DC UPS module SITOP UPS1600, 10 A and 20 A. The intelligent battery management of the UPS1600 charges the UPS1100 with the optimum temperature-controlled charging characteristic and monitors the status (operating data and diagnostic information) of the connected battery modules via Energy Storage Link. Up to six battery modules can be connected in parallel to increase performance.

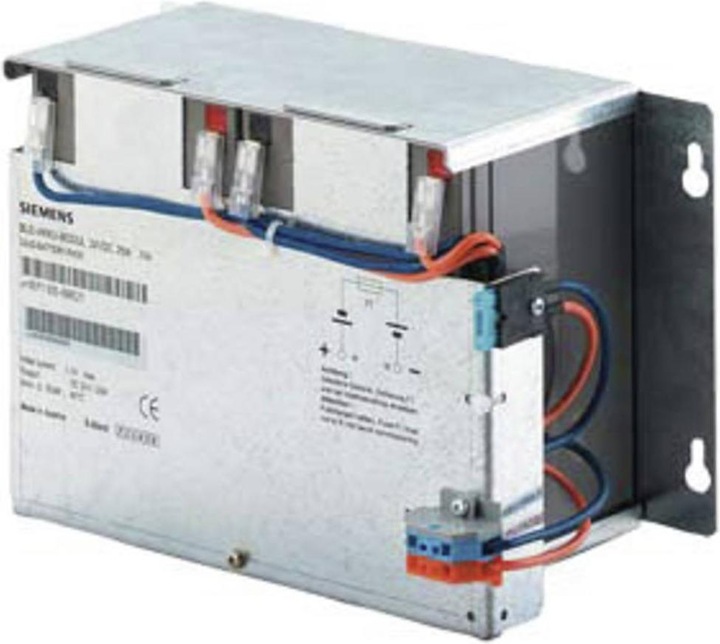

10. Siemens Energy storage SITOP AKKUMODU
The SITOP AKKUMODU energy storage from Siemens is a powerful battery module specifically designed for the SITOP DC UPS. With a capacity of 7 ampere-hours (Ah) and an output voltage of 24 volts, this module provides a reliable power source for uninterruptible power supply systems. It is ideal for applications where short-term power supply is necessary to keep critical systems running. The module is maintenance-free and allows for easy installation thanks to the included wall mount. The operating time at full load is up to 120 seconds, providing sufficient buffer time for many industrial applications. The SITOP AKKUMODU is suitable for use in a temperature range of 5 to 60 °C and meets high quality standards as it is manufactured in Germany.
- Maintenance-free design for easy handling
- Operating time of 120 seconds at full load
- Includes wall mount for easy installation
- Suitable for temperatures from 5 to 60 °C
- Manufactured in Germany with high quality standards.
