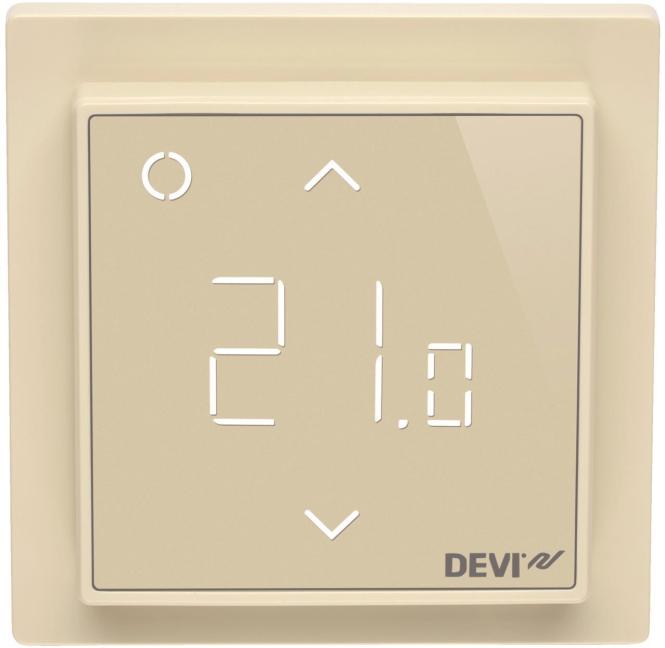

Devi room and floor thermostat 140F1142
Manufacturer: Devi
Designation: Room and floor thermostat RAL 1013
Type: 140F1142
Type of power supply: 230 V
External sensor: Yes
Version transducer/sensor: Resistance sensor
Temperature readable: Yes
With display: Yes
Version clock: Digital
Operation: Touch screen
Max. voltage of contacts: 230 V
Voltage of contacts: 230 V
Max. contact voltage: 230 V
Max. contact load: 16 A
Protection class (IP): IP21
Colour: White RAL number 1013
Width: 85 mm
Height: 85 mm
Power consumption in standby mode: 0.4 W

Devi room and floor thermostat 140F1142: more details
Puristic timer thermostat with design single frame, setting via WLAN app and smartphone or tablet. Suitable for various switch ranges, patented compatibility with single and multiple frames, compatible with NTC floor sensors of other manufacturers, patented reading and writing of the setting code for remote maintenance. Operating voltage: 220-240 V 50/60 Hz, power consumption in standby mode: < 400 mW, relay resistive load: 16 A/3680 W at 230 V, inductive load: cos Phi = 0.3 max. 1 A, sensor unit: NTC 15 kOhm at 25 °C, low voltage galvanically isolated from the power supply, control: PWM - pulse width modulation, ambient temperature: +5 to +30 °C, floor temperature limit: +10 to +35 °C, frost protection: +5 °C (+5 to +9 °C), temperature range: 5-35 °C (room) or 5-35 °C (floor), setback temperature: 5 to +30 °C, storage temperature: -20 to +65 °C, power reserve: settings retained time, date, consumption counter: 24 hours, protection class: IP 21, dimensions (H/W/D) two-part touch-proof construction, installed (design frame): 85 mm × 85 mm × 44 mm, top part: 67 mm × 67 mm × 22 mm, colour euro white RAL 1013.
