Filter type = Folded filter plates
Dimensions nom. = 24 x 24 x 2inch
Dimensions absolute = 594 x 594 x 45mm
Filter MERV Class = 8
Filter class = G4
Air flow rate max = 3400m³/h
Initial pressure drop = 52Pa
Final pressure drop = 200Pa
Color = Green
Housing material = AquaKote
Material = Cotton, PET
Height nom. = 24inch

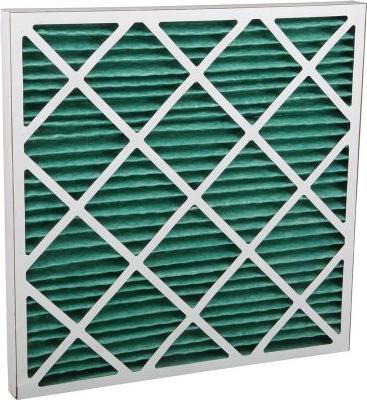

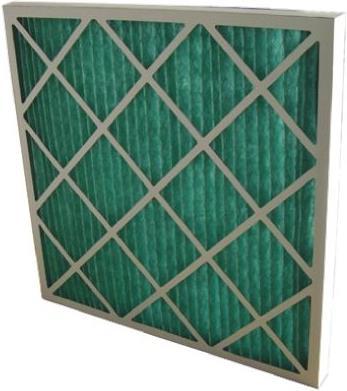

Eurovent approval. RS high capacity pleated filter plates. High capacity pleated filter plates for use in the most demanding conditions. The extra high number of pleats in the filter media (15 pleats per 300 mm) provides excellent service life. The media itself is a blend of cotton and polyester with 100% mechanical filtration properties, high elevation and a weight that matches the best filters on the market. These filter panels are constructed by bonding the cotton/polyester pleat packets together to form an Aquakote® frame. Aquakote® has superior tear strength when wet and excellent tear resistance when dry. In addition, it is made from renewable materials.
