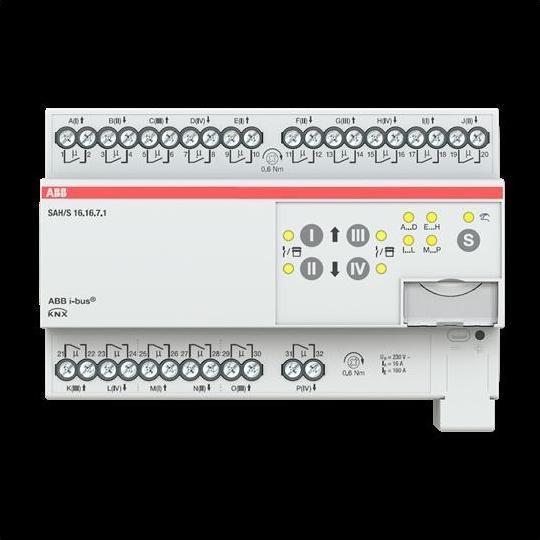

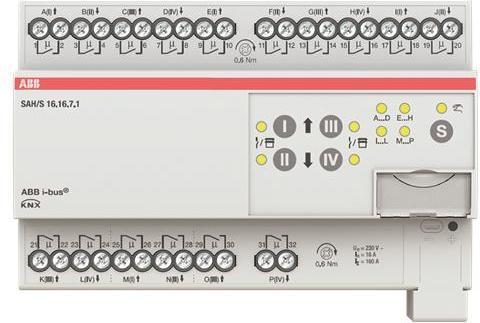

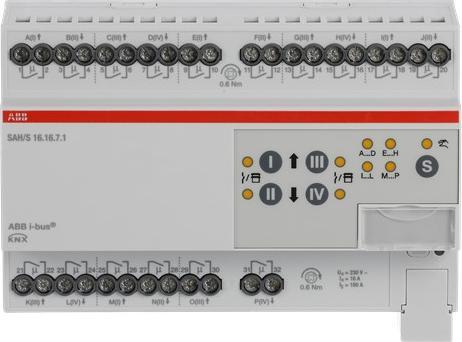

ABB Stotz S&J switching/shutter actuator SAH/S16.16.7.1

Manufacturer: ABB Stotz S&J
Designation: Switching/shutter actuator
Type: SAH/S16.16.7.1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 8
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 1200 W
Max. LED switching capacity: 250 W
Output power: 1200 W
Suitable for C-load: No
Max. number of switching outputs: 16
Number of switching outputs: 16
Max. rated operating voltage: 230 V
Different phases can be connected: Yes
With bus coupling: Yes
Bus module can be removed: Yes
Min. depth of device box: 64.5 mm
Modular expansion option: Yes
Protection class (IP): IP20

The 16A combi actuator has 16 independent switching relays with which electrical loads or 230V AC blinds can be switched individually in pairs via ABB i-bus®. Manual operation of the outputs is possible. The switching or driving status of the output is displayed. Manual operation of the device can be disabled. It is a KNX device and does not require additional power supply.
EAN: 4016779066853.
